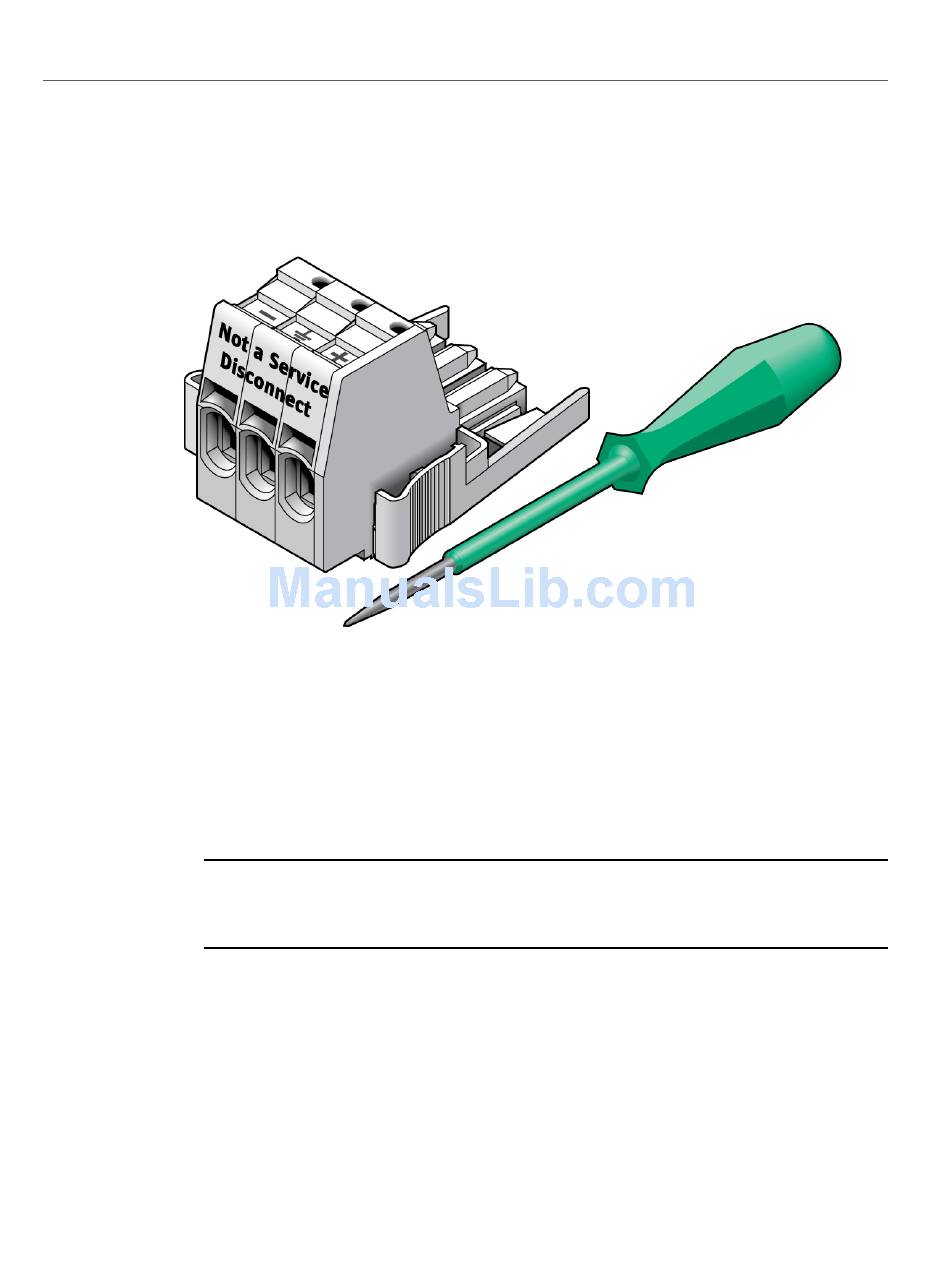

For each cable, you need the items shown in this illustration. These items are included in the

shipping kit that came with your server.

Locate the three wires coming from your DC power source that will be used for

the connection to your server.

-48V or -60V (negative terminal)

■

Chassis ground

■

-48V or -60V Return (positive terminal)

■

Depending on the DC power source, the -48V or -60V (negative terminal) might

Note -

be marked with a minus (-) symbol. The -48V or -60V Return (positive terminal) might be

marked with a positive (+) symbol.

Strip 1/2 in. (13 mm) of insulation from each of the wires coming from the DC

power source.

Assemble the DC Input Power Cord

Powering On the Server the First Time
