Assemble the DC Input Power Cord

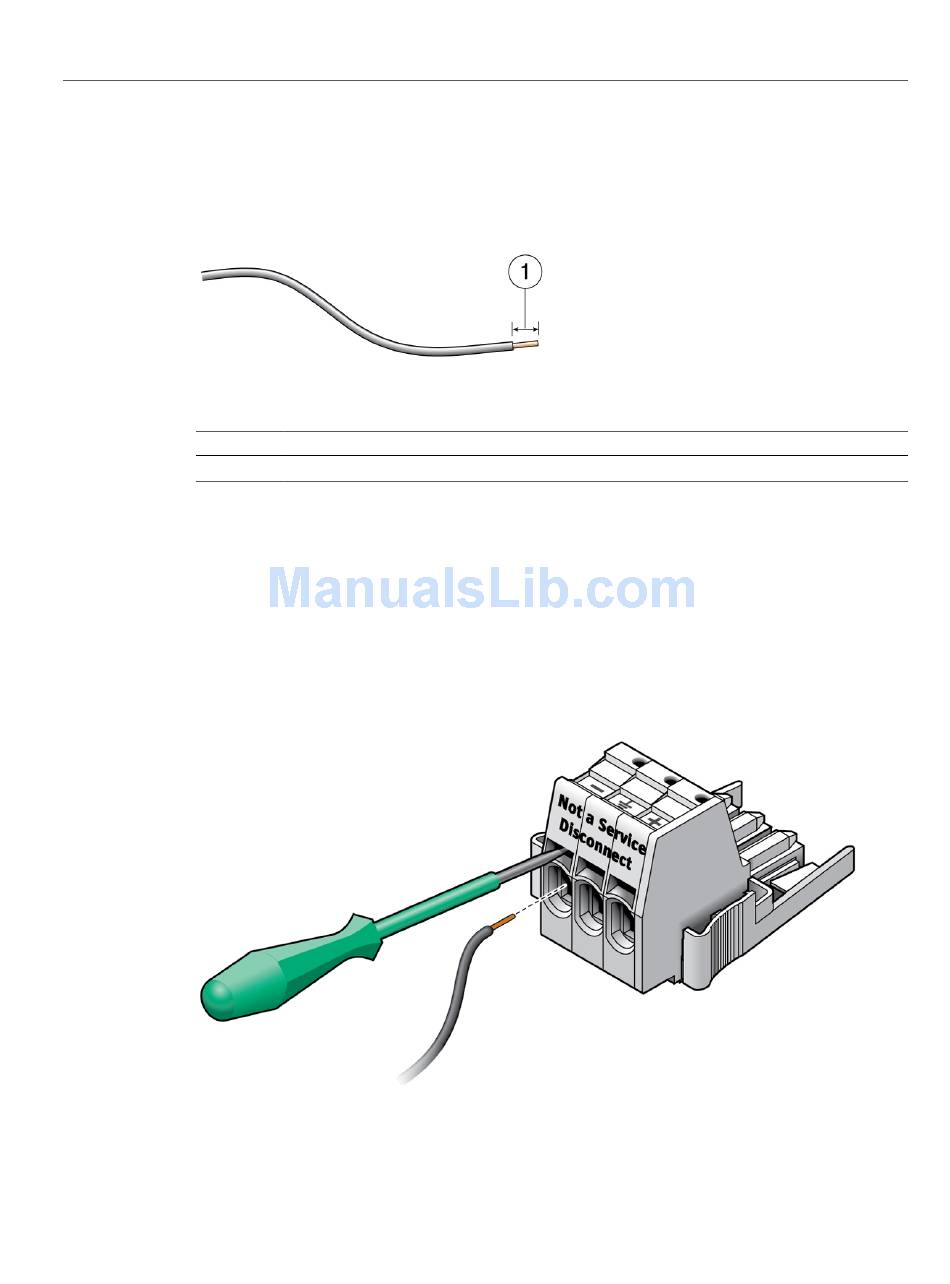

Do not strip more than 1/2 in. (13 mm) from each wire. Doing so leaves uninsulated wire
exposed from the DC connector after the assembly is complete.
No.
1
Open the cage clamp for this section of the DC input plug.
6.
Insert the cage clamp tool (or small screwdriver) into the rectangular hole directly above the
hole in the DC input plug where you want to insert the first wire. Press down on the cage clamp
operating lever.
Feed the exposed section of the appropriate wire into the round hole in the DC
7.
input plug.
80 Netra Server X5-2 Installation Guide • June 2016
Description
1/2 in. (13 mm) maximum
