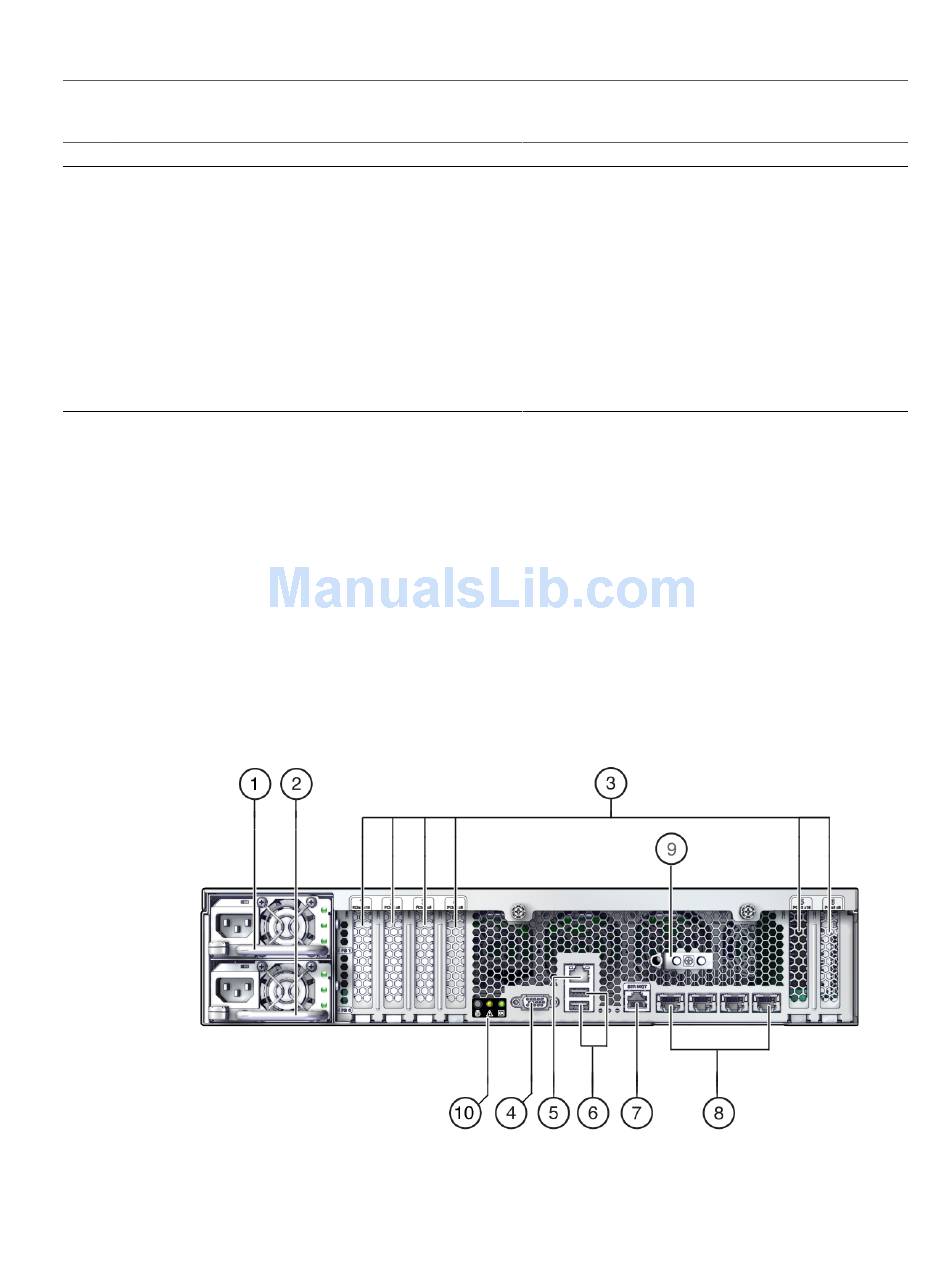

Rear Panel Components (Installation)

No. Description
■ Rear PS fault LED
Telco alarm indicators:
■ Critical LED
■ Major LED
■ Minor LED
■ User LED
2 DVD
3 Two USB 2.0 connectors
4 Six SAS, or two SAS and four NVMe drive slots
Related Information
"Installation Task Overview" on page 9
■
"Server Overview" on page 10
■
"Rear Panel Components (Installation)" on page 14
■
Netra Server X5-2 Service Manual
■
Rear Panel Components (Installation)
14 Netra Server X5-2 Installation Guide • June 2016
Links
"Servicing the DVD Drive" in Netra Server X5-2 Service
Manual
"USB Ports" on page 69
"Servicing SAS Drives" in Netra Server X5-2 Service Manual
