Install the Server (4-Post, 19-Inch Sliding Rails With CMA Rack Kit)

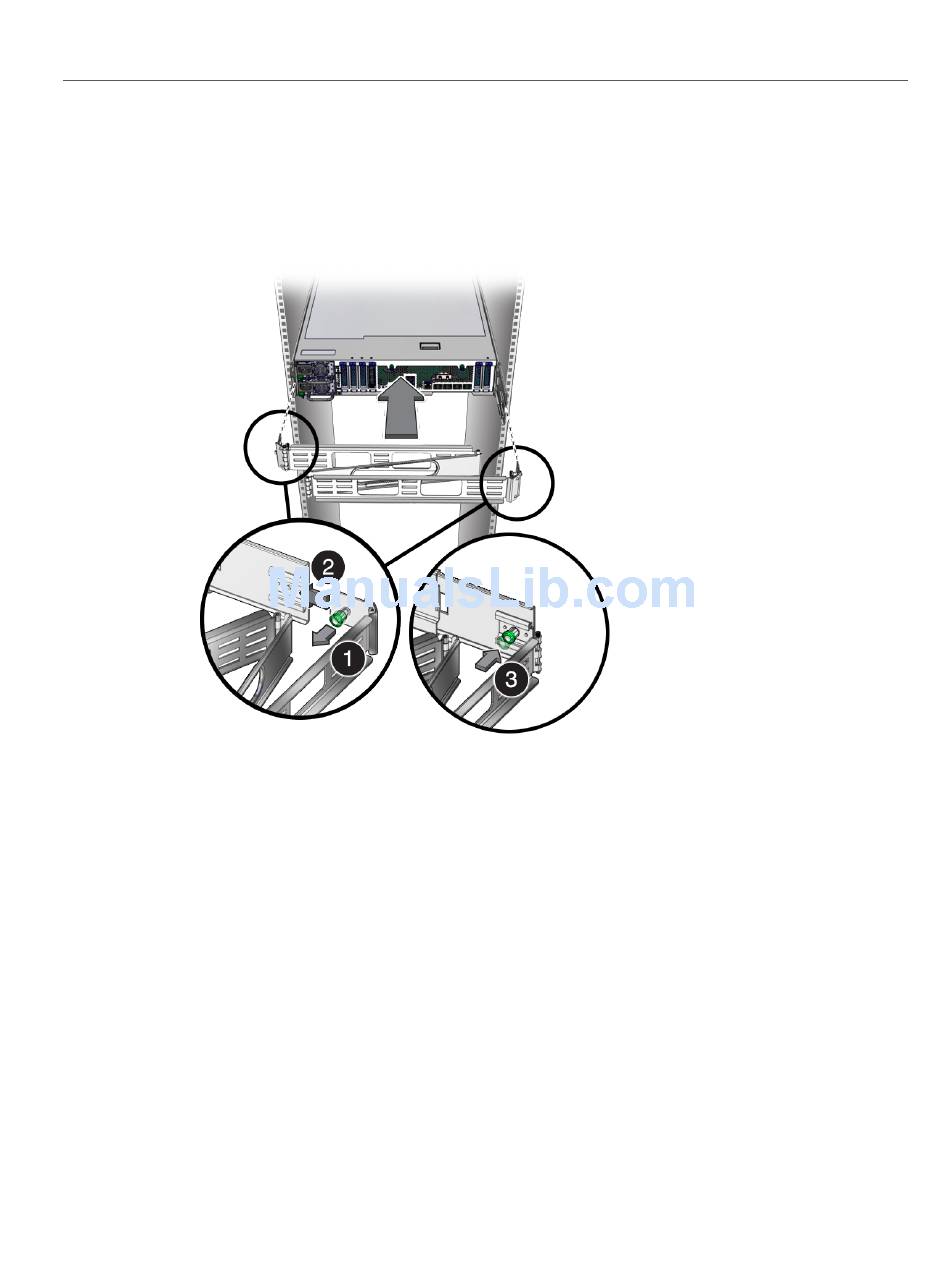

The green, spring-loaded handles should point inward. Pull the green handles out and release it
when the holes are aligned. The left CMA flange fits into key-hole notches on the end of the left
glide rail.
19.
Extend the server to the service position to ensure that the CMA expands
properly.
This step is the same for the round-hole rack.
20.
Route and secure the cables in the CMA.
48
Netra Server X5-2 Installation Guide • June 2016
