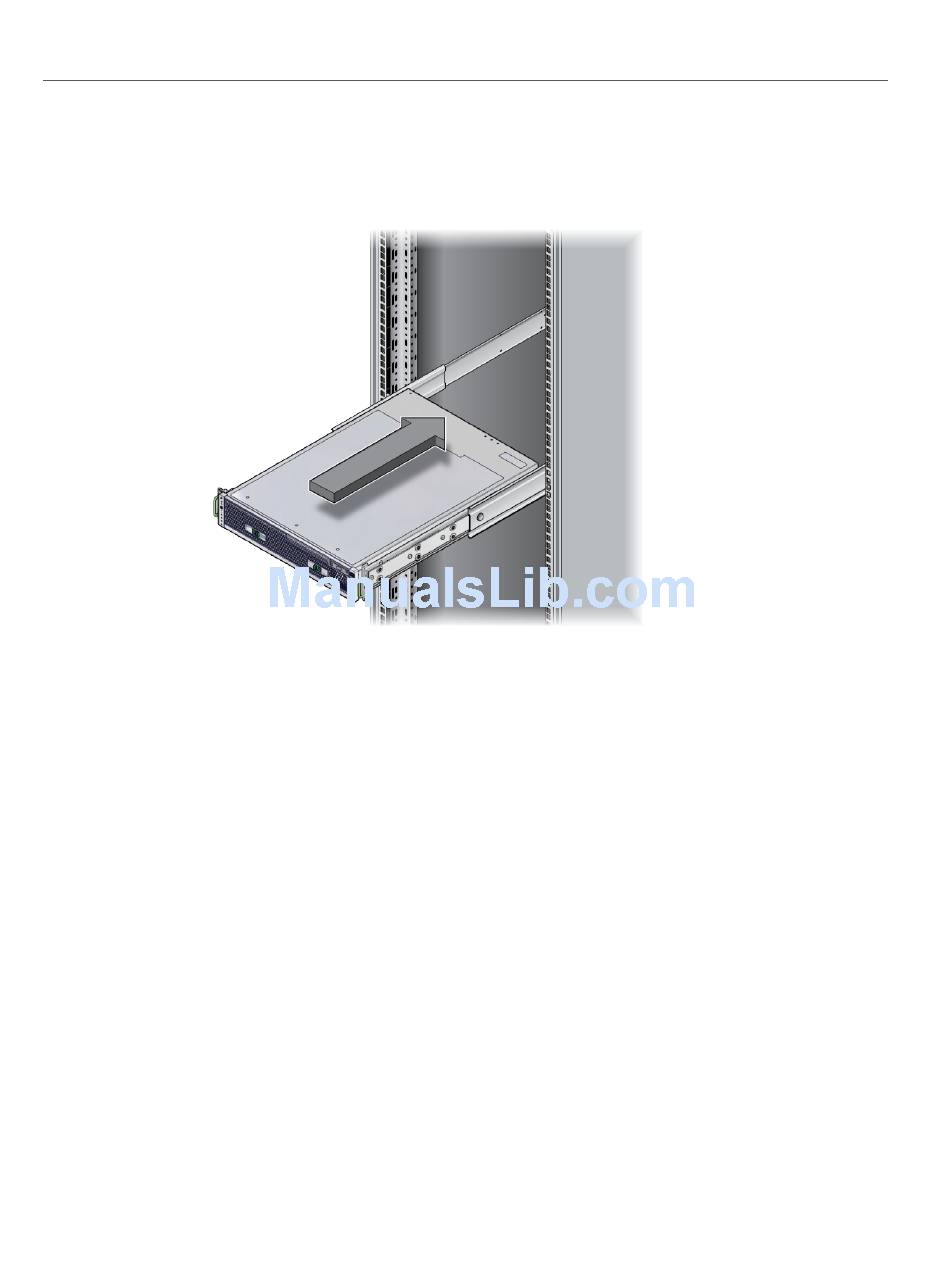

This illustration shows the square-hole rack. This step is the same for the round-hole rack.

Press the release buttons, and slide the server completely into the rack.

17.

This step is the same for the round-hole rack.

18.

Attach the right and left sides of the CMA to the rear of the slide assembly (right)

and server (left).

This illustration shows the square-hole rack. This step is the same for the round-hole rack.

Install the Server (4-Post, 19-Inch Sliding Rails With CMA Rack Kit)

Installing the Server
