Net Mgt Port - Oracle Netra X5-2 Installation Manual

Pin Signal Description
1 Clear to Send
2 Data Carrier Detect
3 Transmit Data
4 Ground
Do not attach a modem to this port.
Caution -
Related Information
"Available Connections" on page 61
■
"Rear Panel Components (Installation)" on page 14
■
"NET MGT Port" on page 67
■
"10 Gigabit Ethernet Ports" on page 68
■
"USB Ports" on page 69
■
"Video Port" on page 70
■

NET MGT Port

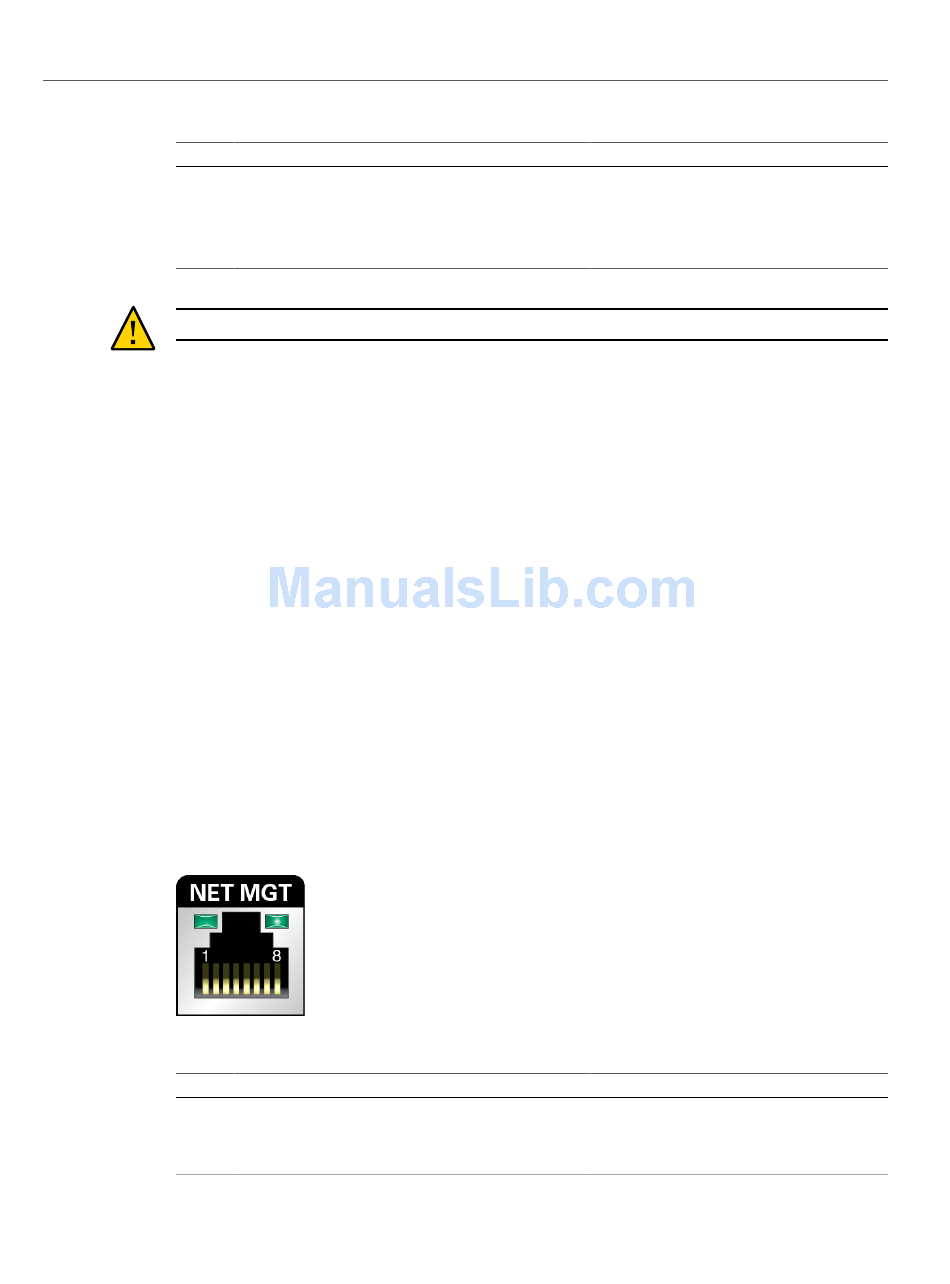

The NET MGT RJ-45 port, located on the rear panel, provides an optional Ethernet connection
to the SP. The service processor network management port uses an RJ-45 cable for a
10/100BASE-T connection. If your network does not use a DHCP server, this port will not be
available until you configure network settings through the SER MGT port. This port does not
support connections to Gigabit networks.
Pin Signal Description
1 Transmit Data +
2 Transmit Data -
3 Receive Data +
Pin Signal Description
5 Ground
6 Receive Data
7 Data Terminal Ready
8 Ready to Send
Pin Signal Description
5 No Connect
6 Receive Data -
7 No Connect
Connecting Cables
Identifying Ports
67
