15–QLogic Teaming Services
General Network Considerations

SLB Team Connected to a Single Hub

SLB teams configured as shown in
properties. Either server connection could fail without affecting the network.
Clients could be connected directly to the hub, and fault tolerance would still be
maintained; server performance, however, would be degraded.

Generic and Dynamic Trunking (FEC/GEC/IEEE 802.3ad)

FEC/GEC and IEEE 802.3ad teams cannot be connected to any hub
configuration. These team types must be connected to a switch that has also
been configured for this team type.

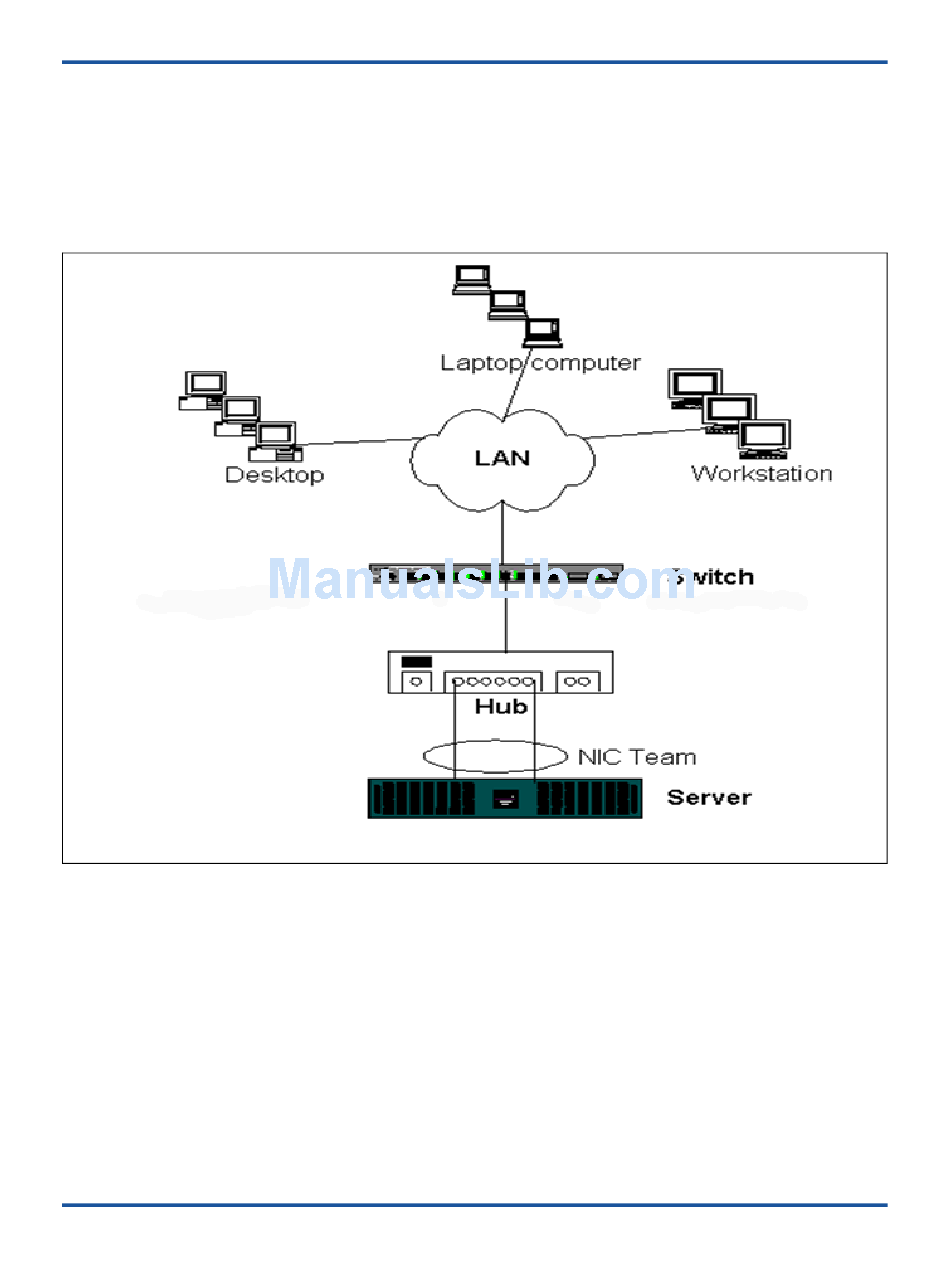

Figure 15-6. Team Connected to a Single Hub
Figure 15-6 maintain their fault tolerance
210 83840-546-00 E
