8–iSCSI Protocol
iSCSI Boot

Configuring VLANs for iSCSI Boot

iSCSI traffic on the network may be isolated in a Layer-2 VLAN to segregate it
from general traffic. When this is the case, make the iSCSI interface on the
adapter a member of that VLAN.

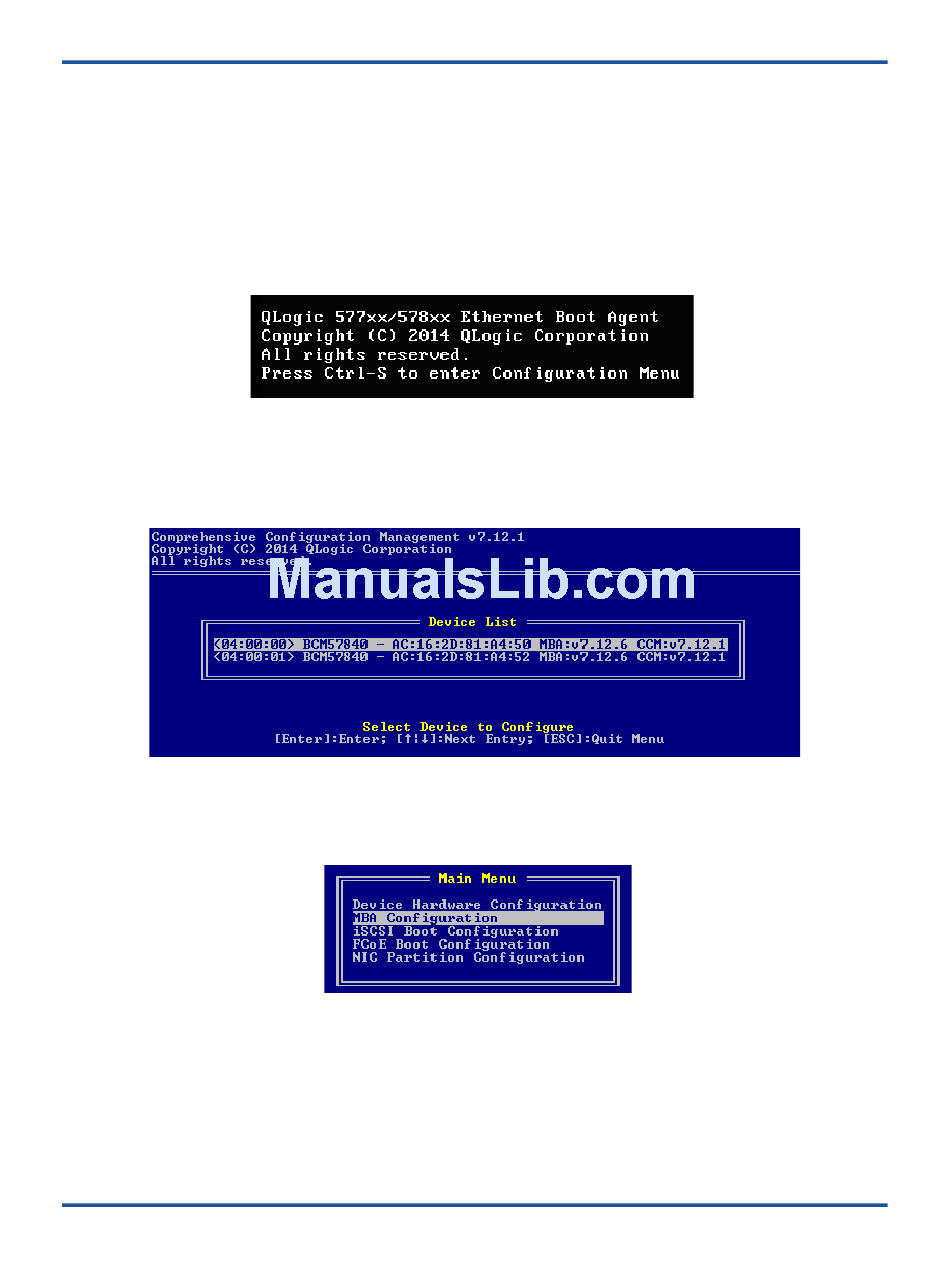

1. During a boot of the Initiator system, press CTRL+S to open the QLogic
CCM pre-boot utility
Figure 8-8. Comprehensive Configuration Management
2. In the CCM device list, use the up or down arrow keys to select a device,
and then press ENTER.
Figure 8-9. Configuring VLANs—CCM Device List
3. In the Main menu, select MBA Configuration, and then press ENTER.
Figure 8-10. Configuring VLANs—Multiboot Agent Configuration
(Figure 8-8).
93 83840-546-00 E
