The following entries are displayed on this screen:
VLAN Table

Select:
VLAN ID:
Name:
Members:
Operation:
Click Edit and the following content will be shown.
VLAN Info

VLAN ID:
Name:
Untagged Port:
Tagged Port:

6.1.2 Port Config

Before creating the 802.1Q VLAN, please acquaint yourself with all the devices connected to the
switch in order to configure the ports properly.
Select the desired entry to delete the corresponding VLAN. It is
multi-optional.
Displays the VLAN ID.
Displays the name of the specific VLAN.
Displays the port members in the VLAN.
Allows you to view or modify the information for each entry.
 Edit: Click to modify the settings of VLAN.
 Detail: Click to get the information of VLAN.

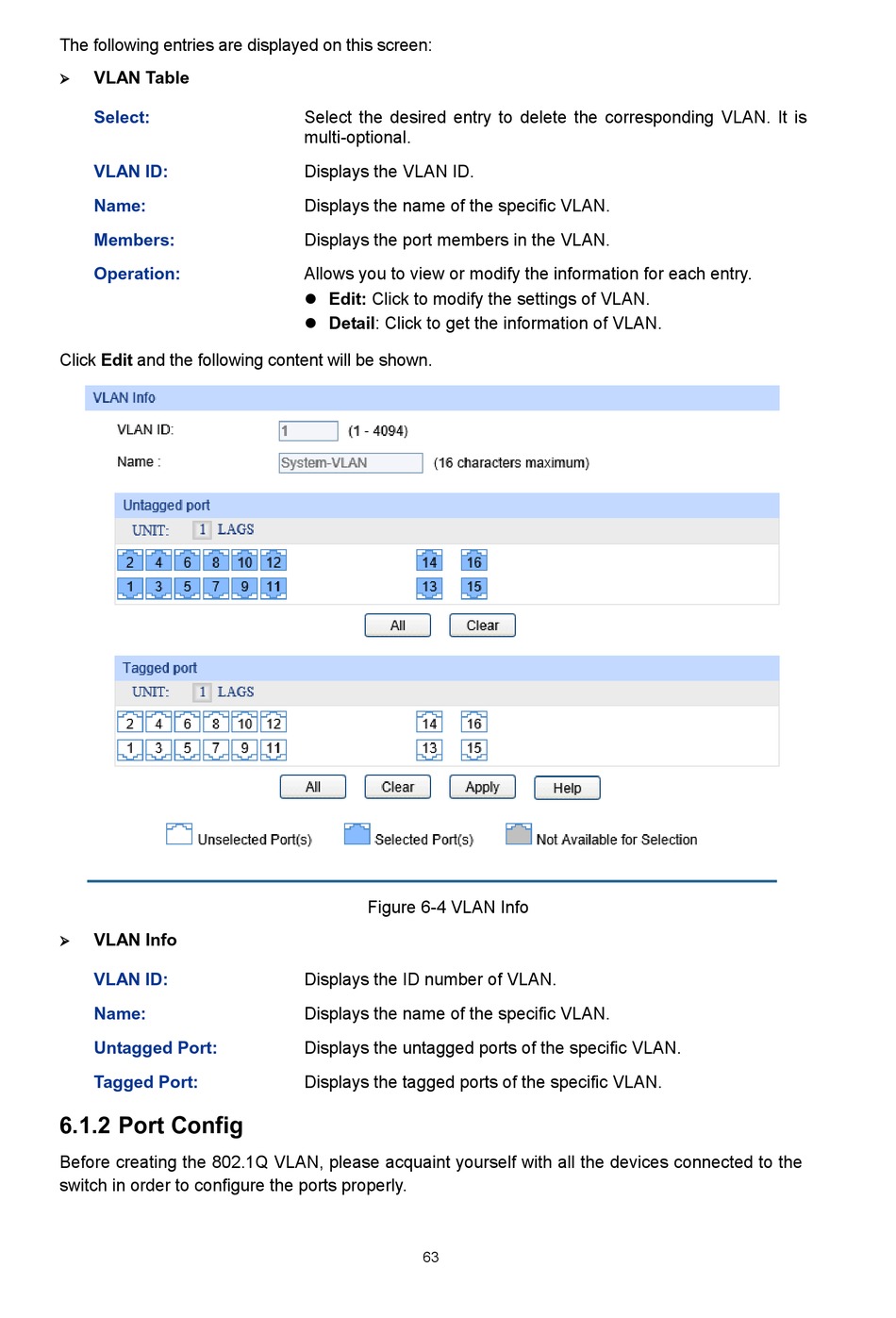

Figure 6-4 VLAN Info
Displays the ID number of VLAN.
Displays the name of the specific VLAN.
Displays the untagged ports of the specific VLAN.
Displays the tagged ports of the specific VLAN.
63
