Port Priority:
Mode:
Status:
LAG:

5.3 Traffic Monitor

The Traffic Monitor function, monitoring the traffic of each port, is implemented on the Traffic
Summary and Traffic Statistics pages.

5.3.1 Traffic Summary

Traffic Summary screen displays the traffic information of each port, which facilitates you to
monitor the traffic and analyze the network abnormity.
Choose the menu Switching→Traffic Monitor→Traffic Summary to load the following page.
The following entries are displayed on this screen:
Auto Refresh

Auto Refresh:
Refresh Rate:
Traffic Summary

UNIT:1/LAGS:
Specify a Port Priority for the port. This value determines the priority
of the port to be selected as the dynamic aggregation group
member. The port with smaller Port Priority will be considered as the
preferred one. If the two port priorities are equal; the port with
smaller port number is preferred.
Specify LACP mode for your selected port.
Enable/Disable the LACP feature for your selected port.
Displays the LAG number which the port belongs to.

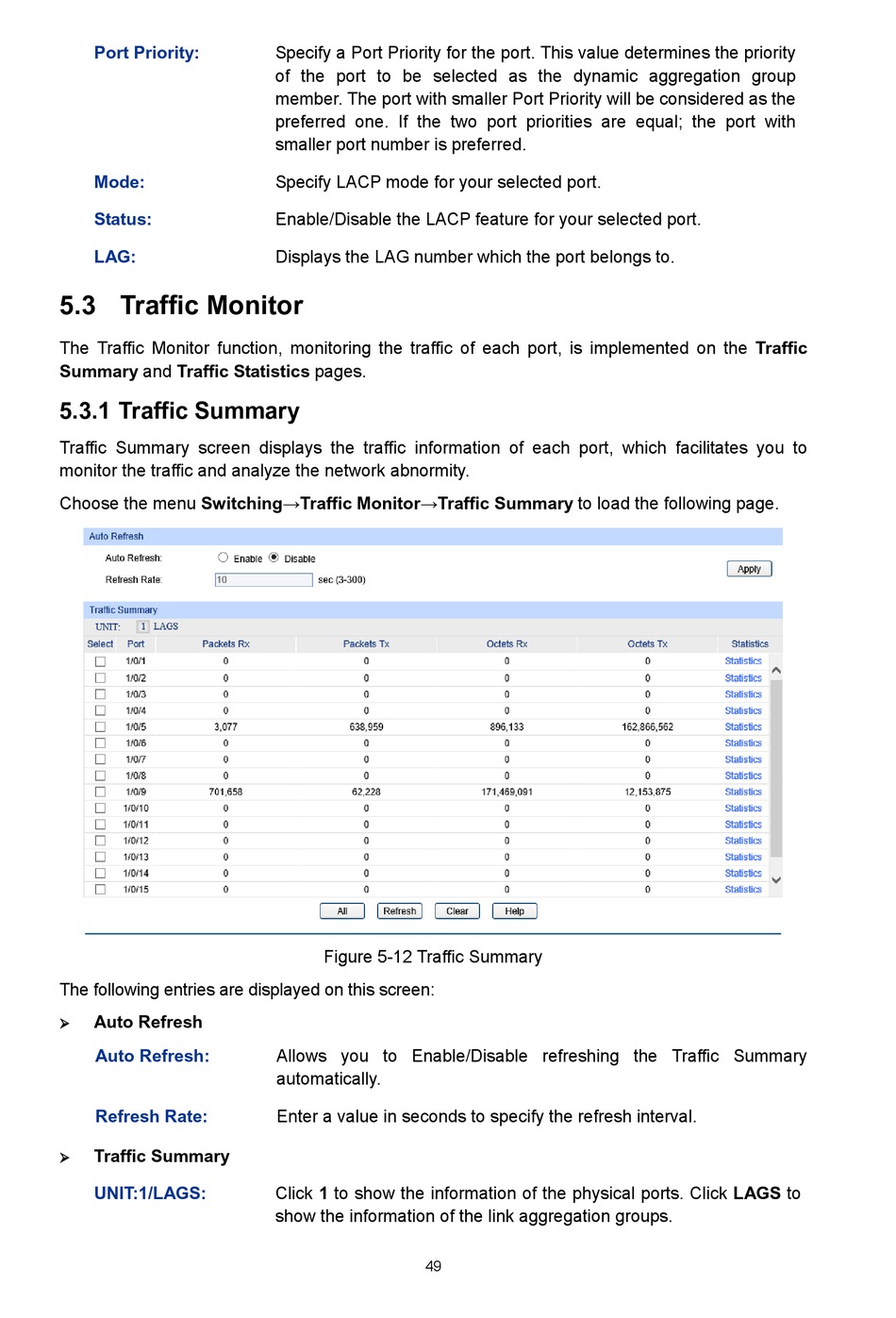

Figure 5-12 Traffic Summary
Allows you to Enable/Disable refreshing the Traffic Summary
automatically.
Enter a value in seconds to specify the refresh interval.
Click 1 to show the information of the physical ports. Click LAGS to
show the information of the link aggregation groups.
49
