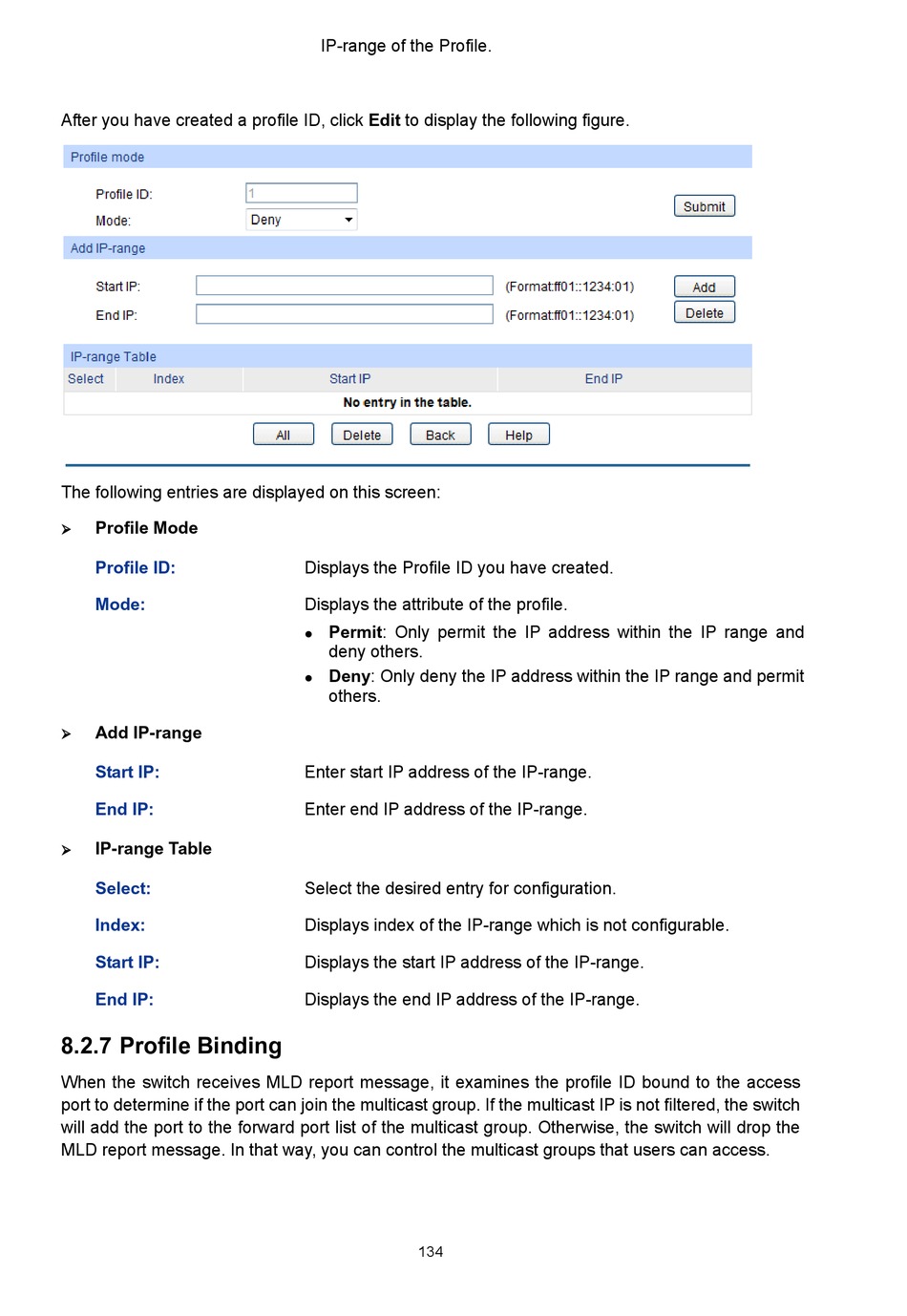

After you have created a profile ID, click Edit to display the following figure.
The following entries are displayed on this screen:
Profile Mode

Profile ID:
Mode:
Add IP-range

Start IP:
End IP:
IP-range Table

Select:
Index:
Start IP:
End IP:

8.2.7 Profile Binding

When the switch receives MLD report message, it examines the profile ID bound to the access
port to determine if the port can join the multicast group. If the multicast IP is not filtered, the switch
will add the port to the forward port list of the multicast group. Otherwise, the switch will drop the
MLD report message. In that way, you can control the multicast groups that users can access.
IP-range of the Profile.
Displays the Profile ID you have created.
Displays the attribute of the profile.
Permit: Only permit the IP address within the IP range and

deny others.
Deny: Only deny the IP address within the IP range and permit

others.
Enter start IP address of the IP-range.
Enter end IP address of the IP-range.
Select the desired entry for configuration.
Displays index of the IP-range which is not configurable.
Displays the start IP address of the IP-range.
Displays the end IP address of the IP-range.
