Chapter 4 System; System Info; System Summary - TP-Link T1700X-16TS User Manual

The System module is mainly for system configuration of the switch, including four submenus:
System Info, User Management, System Tools, Access Security and SDM Template.

4.1 System Info

The System Info, mainly for basic properties configuration, can be implemented on System
Summary, Device Description, System Time and Daylight Saving Time pages.

4.1.1 System Summary

On this page you can view the port connection status and the system information.
The port status diagram shows the working status of 12 100M/1000M/10Gbps RJ45 ports and 4
SFP+ ports of the switch.
Choose the menu System→System Info→System Summary to load the following page.
Port Status


Chapter 4 System

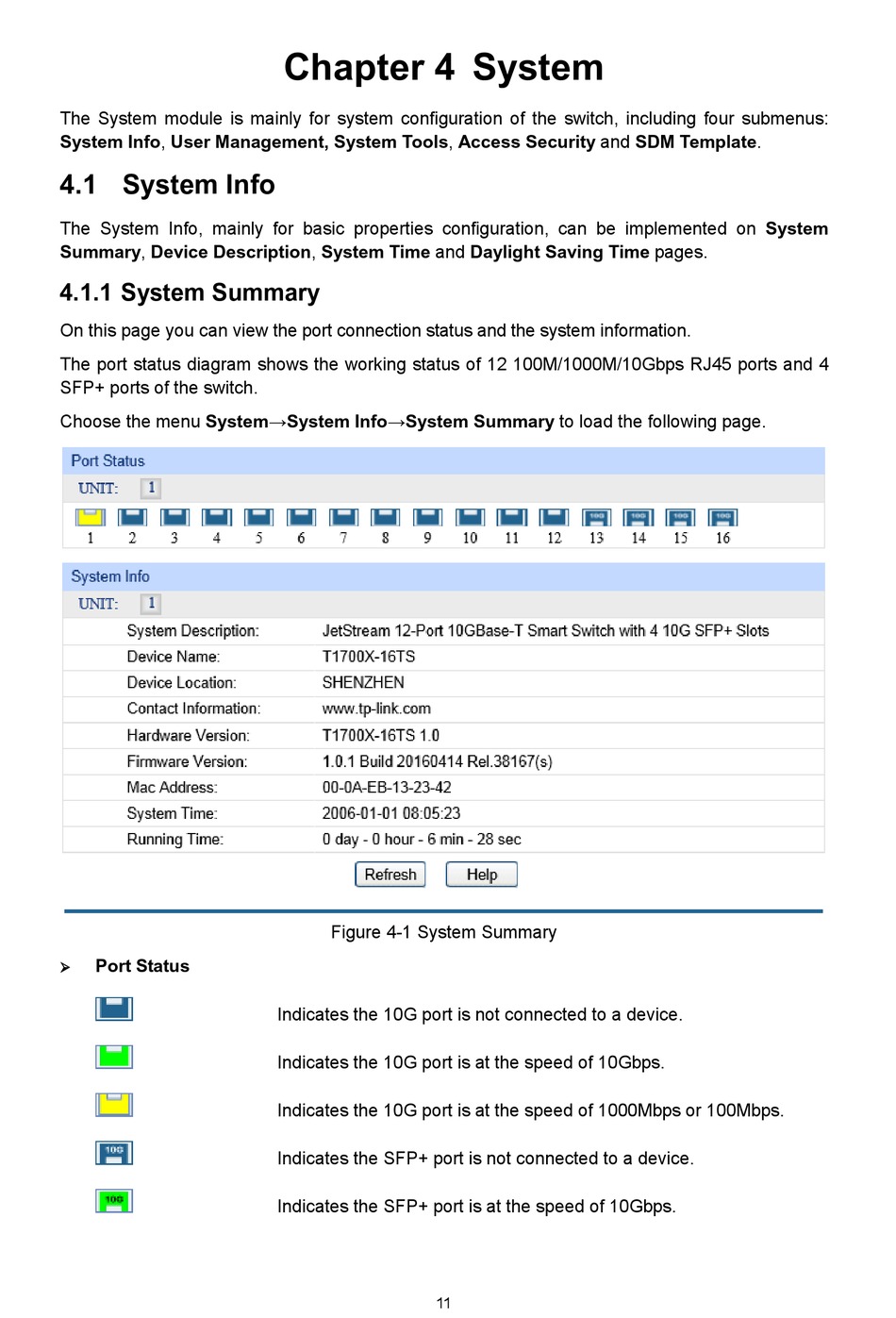

Figure 4-1 System Summary
Indicates the 10G port is not connected to a device.
Indicates the 10G port is at the speed of 10Gbps.
Indicates the 10G port is at the speed of 1000Mbps or 100Mbps.
Indicates the SFP+ port is not connected to a device.
Indicates the SFP+ port is at the speed of 10Gbps.
