The following entries are displayed on this screen
LLDP-MED Port Config
Port:
LLDP-MED Status:
Included TLVs:
Detail:

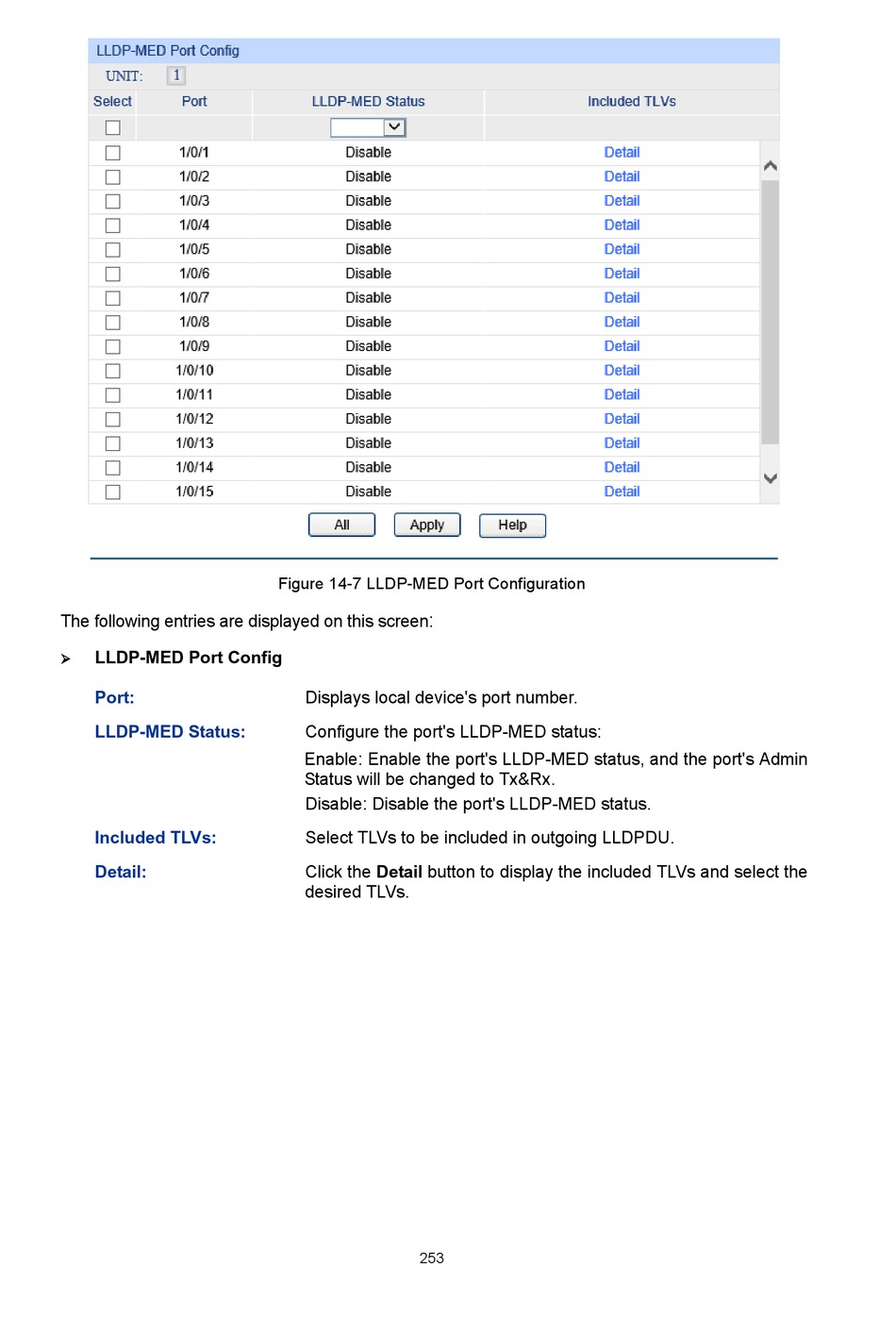

Figure 14-7 LLDP-MED Port Configuration
:
Displays local device's port number.
Configure the port's LLDP-MED status:
Enable: Enable the port's LLDP-MED status, and the port's Admin
Status will be changed to Tx&Rx.
Disable: Disable the port's LLDP-MED status.
Select TLVs to be included in outgoing LLDPDU.
Click the Detail button to display the included TLVs and select the
desired TLVs.
253
