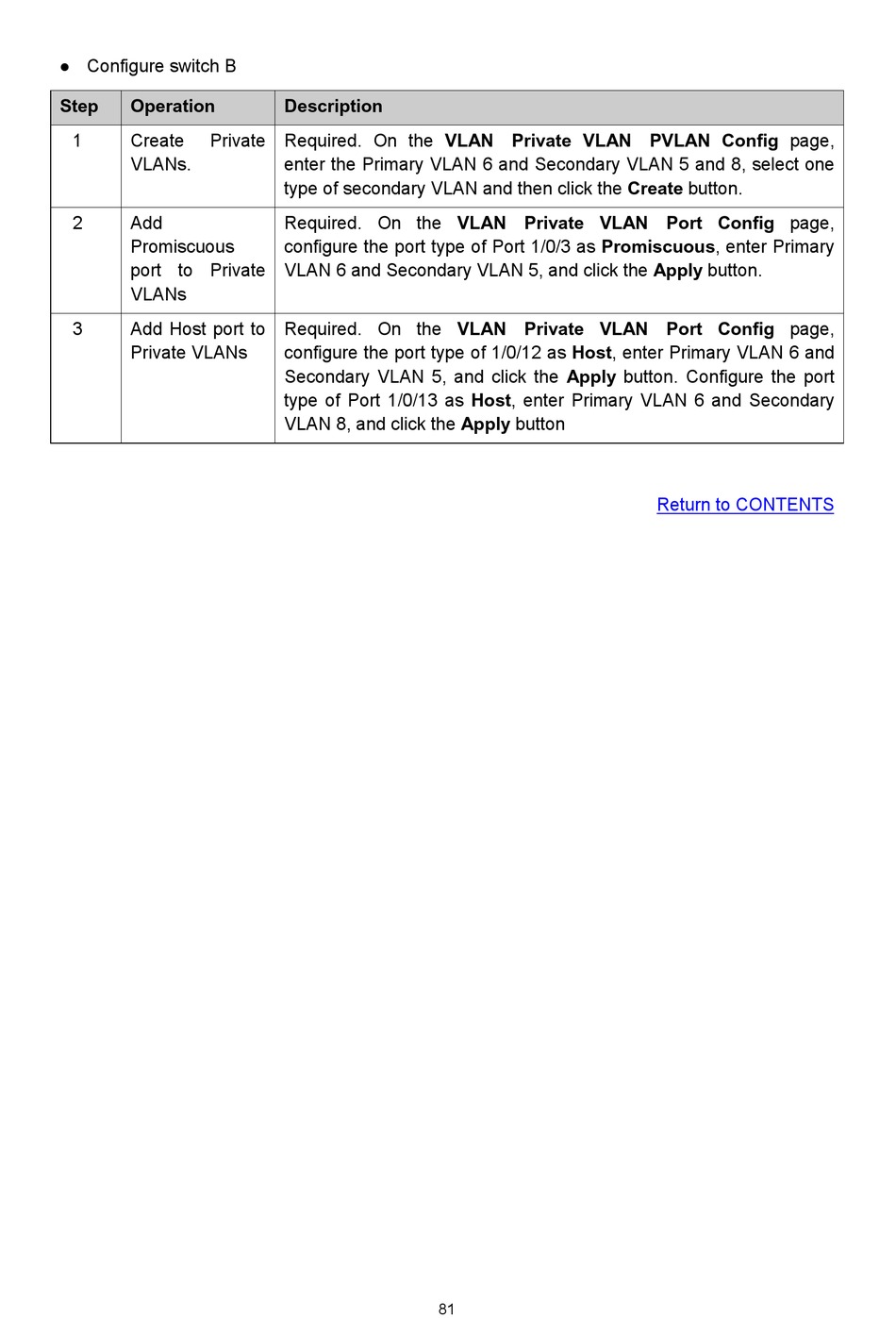

Configure switch B

Step Operation
1 Create Private
VLANs.
2 Add
Promiscuous
port to Private
VLANs
3 Add Host port to
Private VLANs
Description
Required. On the VLAN→ Private VLAN→ PVLAN Config page,
enter the Primary VLAN 6 and Secondary VLAN 5 and 8, select one
type of secondary VLAN and then click the Create button.
Required. On the VLAN→ Private VLAN→ Port Config page,
configure the port type of Port 1/0/3 as Promiscuous, enter Primary
VLAN 6 and Secondary VLAN 5, and click the Apply button.
Required. On the VLAN→ Private VLAN→ Port Config page,
configure the port type of 1/0/12 as Host, enter Primary VLAN 6 and
Secondary VLAN 5, and click the Apply button. Configure the port
type of Port 1/0/13 as Host, enter Primary VLAN 6 and Secondary
VLAN 8, and click the Apply button
