15.4.1 Ping

Ping test function, testing the connectivity between the switch and one node of the network,
facilitates you to test the network connectivity and reachability of the host so as to locate the
network malfunctions.
Choose the menu Maintenance→Network Diagnose→Ping to load the following page.
The following entries are displayed on this screen:
Ping Config

Destination IP:
Ping Times:
Data Size:
Interval:

15.4.2 Tracert

Tracert test function is used to test the connectivity of the gateways during its journey from the
source to destination of the test data. When malfunctions occur to the network, you can locate
trouble spot of the network with this tracert test.

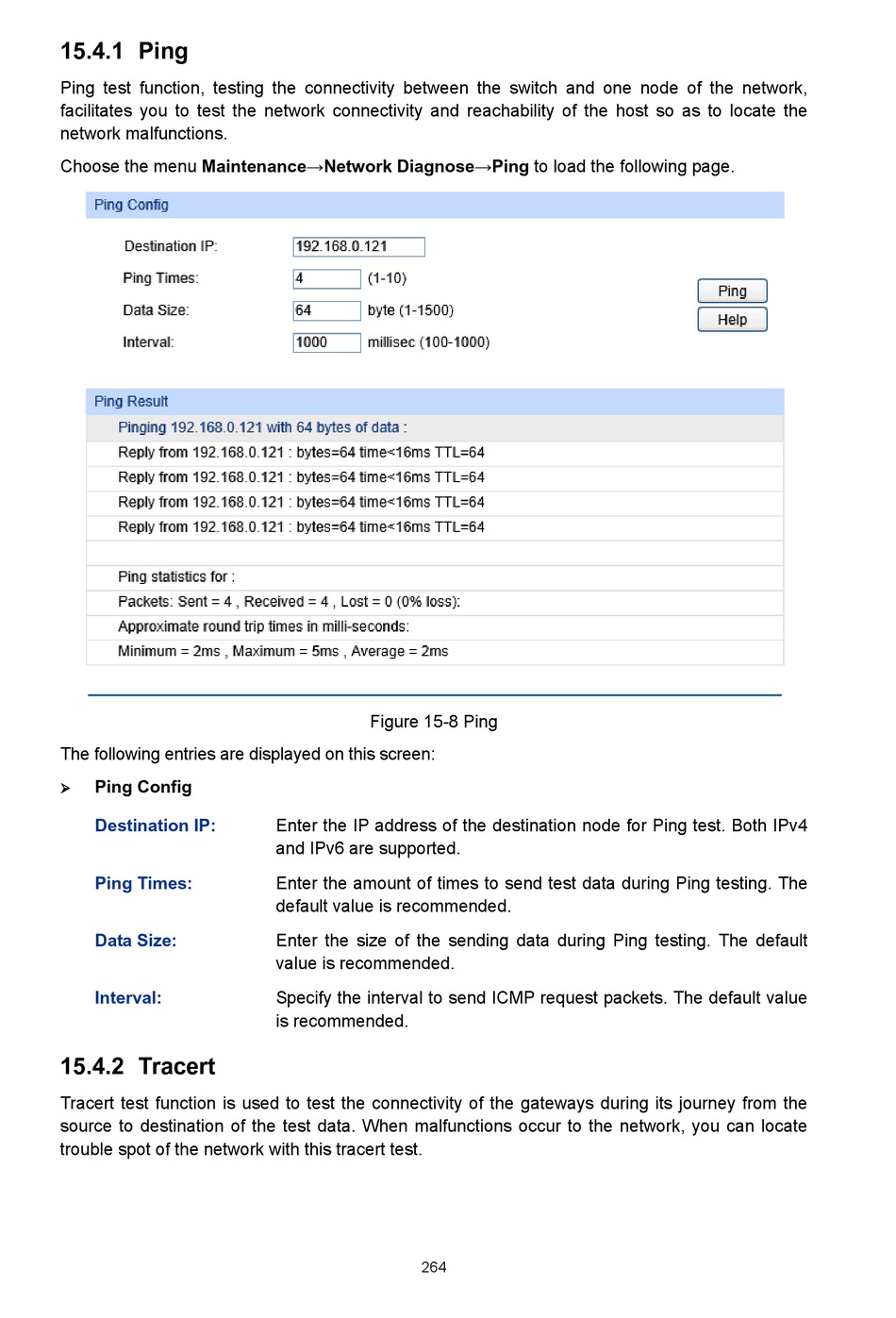

Figure 15-8 Ping
Enter the IP address of the destination node for Ping test. Both IPv4
and IPv6 are supported.
Enter the amount of times to send test data during Ping testing. The
default value is recommended.
Enter the size of the sending data during Ping testing. The default
value is recommended.
Specify the interval to send ICMP request packets. The default value
is recommended.
