6.7.1 PVLAN Config

On this page, you can create Private VLAN and view the information of the current defined Private
VLANs.
Choose the menu VLAN→ Private VLAN→ PVLAN Config to load the following page.
The following entries are displayed on this screen:
Create Private VLAN

Primary VLAN:
Secondary VLAN:
Secondary VLAN
Type:

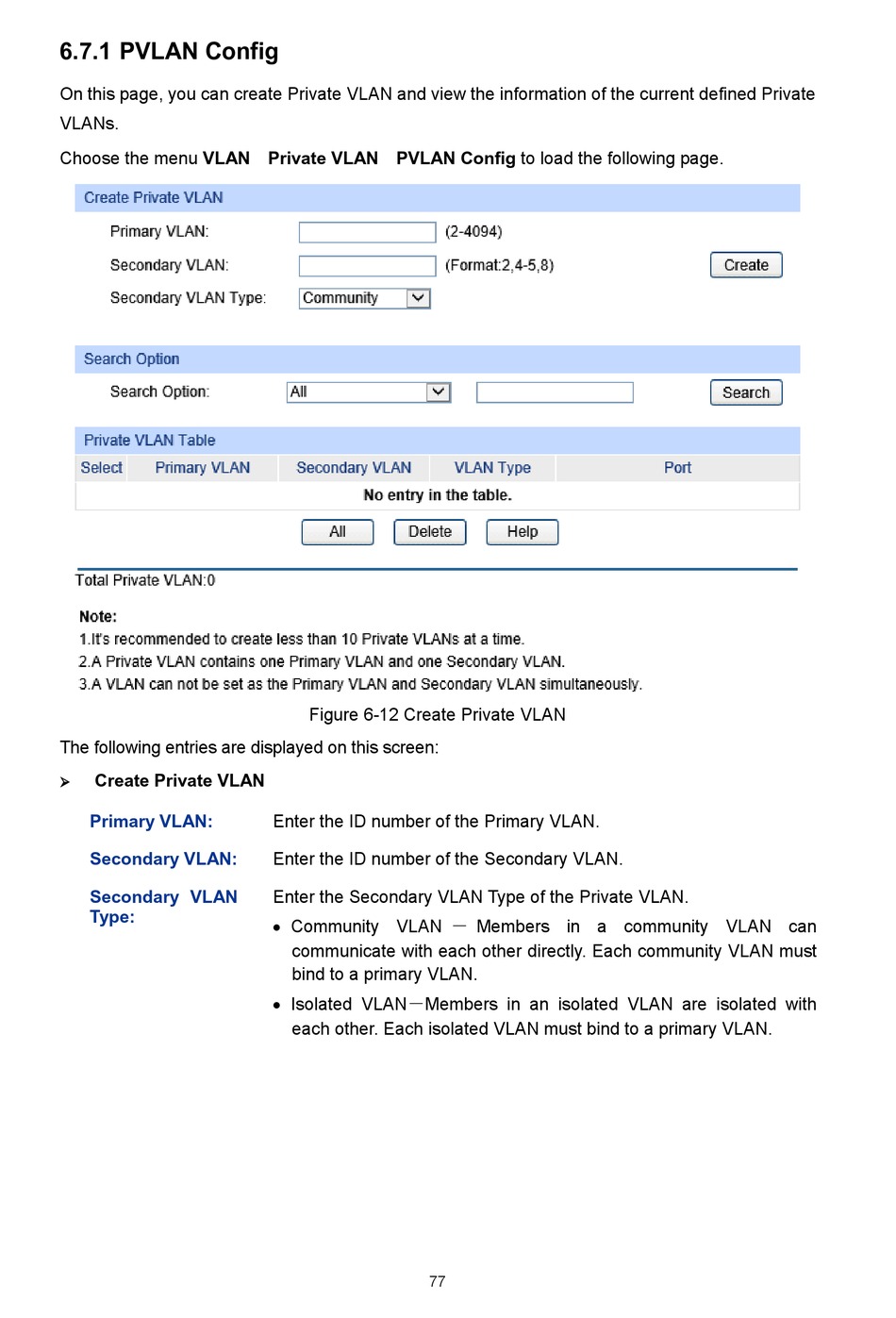

Figure 6-12 Create Private VLAN
Enter the ID number of the Primary VLAN.
Enter the ID number of the Secondary VLAN.
Enter the Secondary VLAN Type of the Private VLAN.
• Community VLAN － Members in a community VLAN can
communicate with each other directly. Each community VLAN must
bind to a primary VLAN.
• Isolated VLAN－Members in an isolated VLAN are isolated with
each other. Each isolated VLAN must bind to a primary VLAN.
