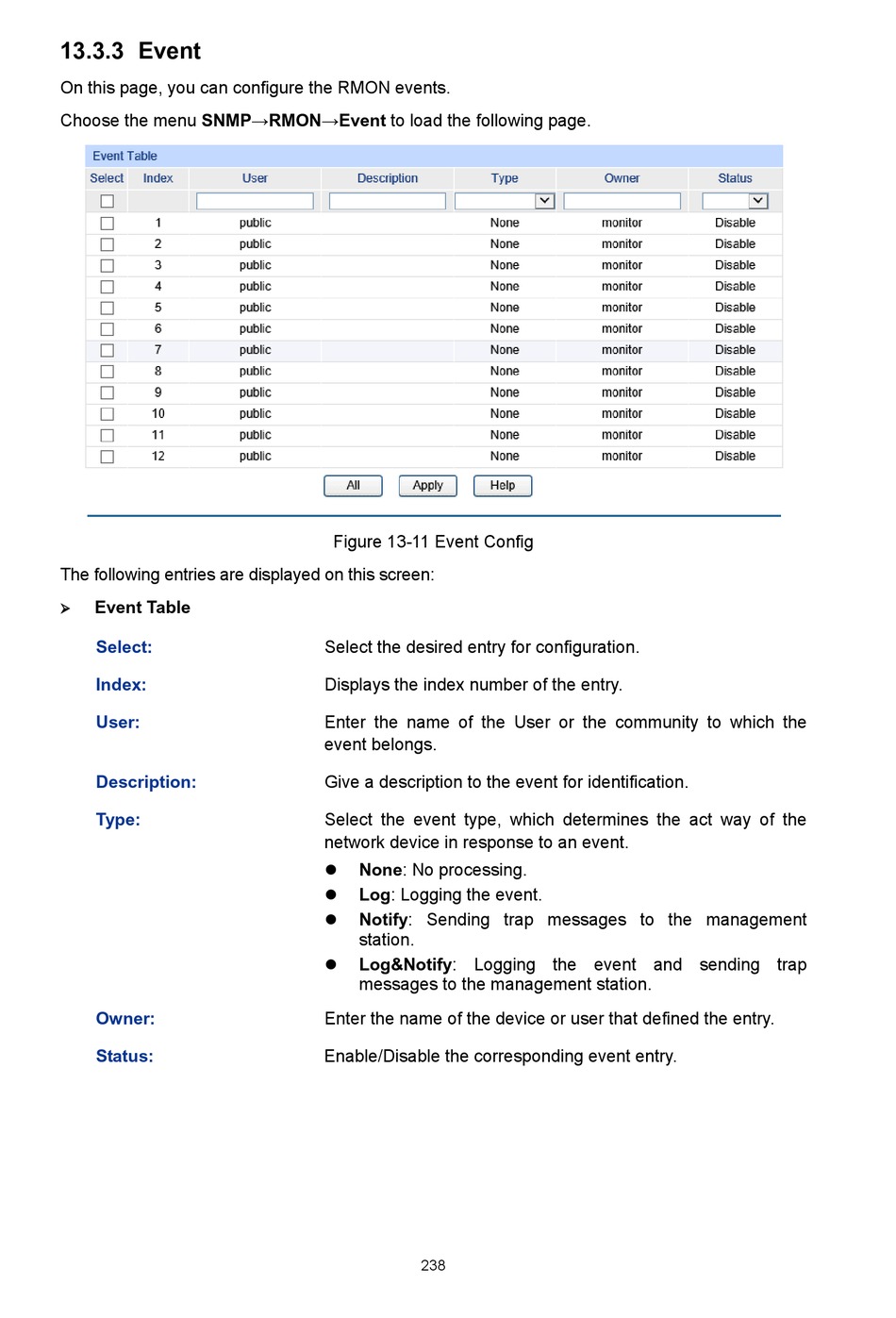

13.3.3 Event

On this page, you can configure the RMON events.
Choose the menu SNMP→RMON→Event to load the following page.
The following entries are displayed on this screen:
Event Table

Select:
Index:
User:
Description:
Type:
Owner:
Status:
Figure 13-11 Event Config
Select the desired entry for configuration.
Displays the index number of the entry.
Enter the name of the User or the community to which the
event belongs.
Give a description to the event for identification.
Select the event type, which determines the act way of the
network device in response to an event.
None: No processing.

Log: Logging the event.

Notify: Sending trap messages to the management

station.
Log&Notify: Logging the event and sending trap

messages to the management station.
Enter the name of the device or user that defined the entry.
Enable/Disable the corresponding event entry.
