Severity:
Content:
Note:
1. The logs are classified into eight levels based on severity. The higher the information severity
is, the lower the corresponding level is.
2. This page displays logs in the log buffer, and at most 1024 logs are displayed.

15.2.2 Local Log

Local Log is the log information saved in switch. By default, the logs with severities from level_0 to
level_6 are saved in log buffer and the logs with severities from level_0 to level_3 are saved in log
file meanwhile. On this page, you can set the output channel for logs.
Choose the menu Maintenance→Log→Local Log to load the following page.
The following entries are displayed on this screen:
Local Log Config

Select:
Channel:
Severity:
Status:
Sync-Periodic:
Displays the severity level of the log information. You can select a
severity level to display the log information whose severity level value
is the same or smaller.
Displays the content of the log information.

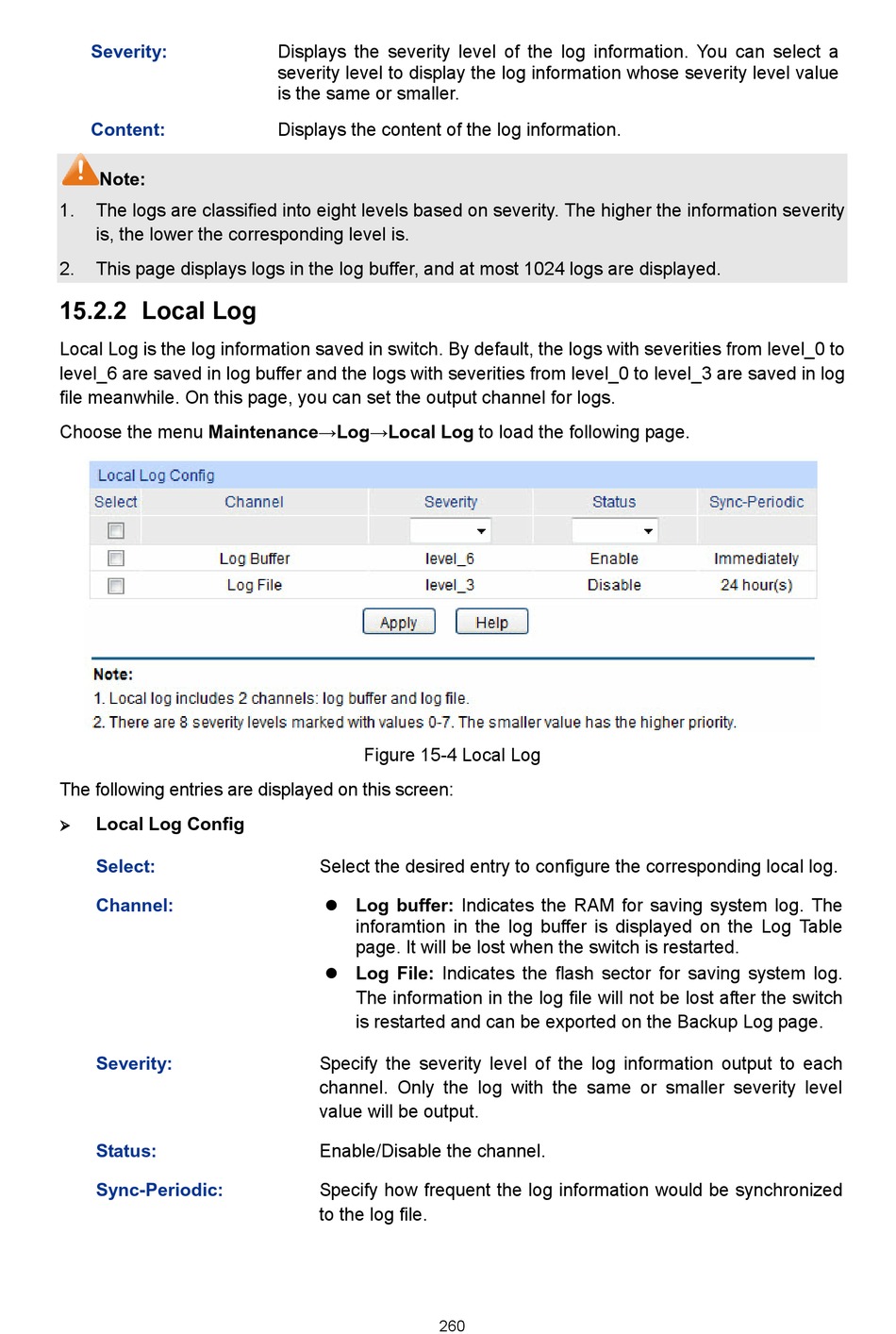

Figure 15-4 Local Log
Select the desired entry to configure the corresponding local log.
 Log buffer: Indicates the RAM for saving system log. The
inforamtion in the log buffer is displayed on the Log Table
page. It will be lost when the switch is restarted.
 Log File: Indicates the flash sector for saving system log.
The information in the log file will not be lost after the switch
is restarted and can be exported on the Backup Log page.
Specify the severity level of the log information output to each
channel. Only the log with the same or smaller severity level
value will be output.
Enable/Disable the channel.
Specify how frequent the log information would be synchronized
to the log file.
260
