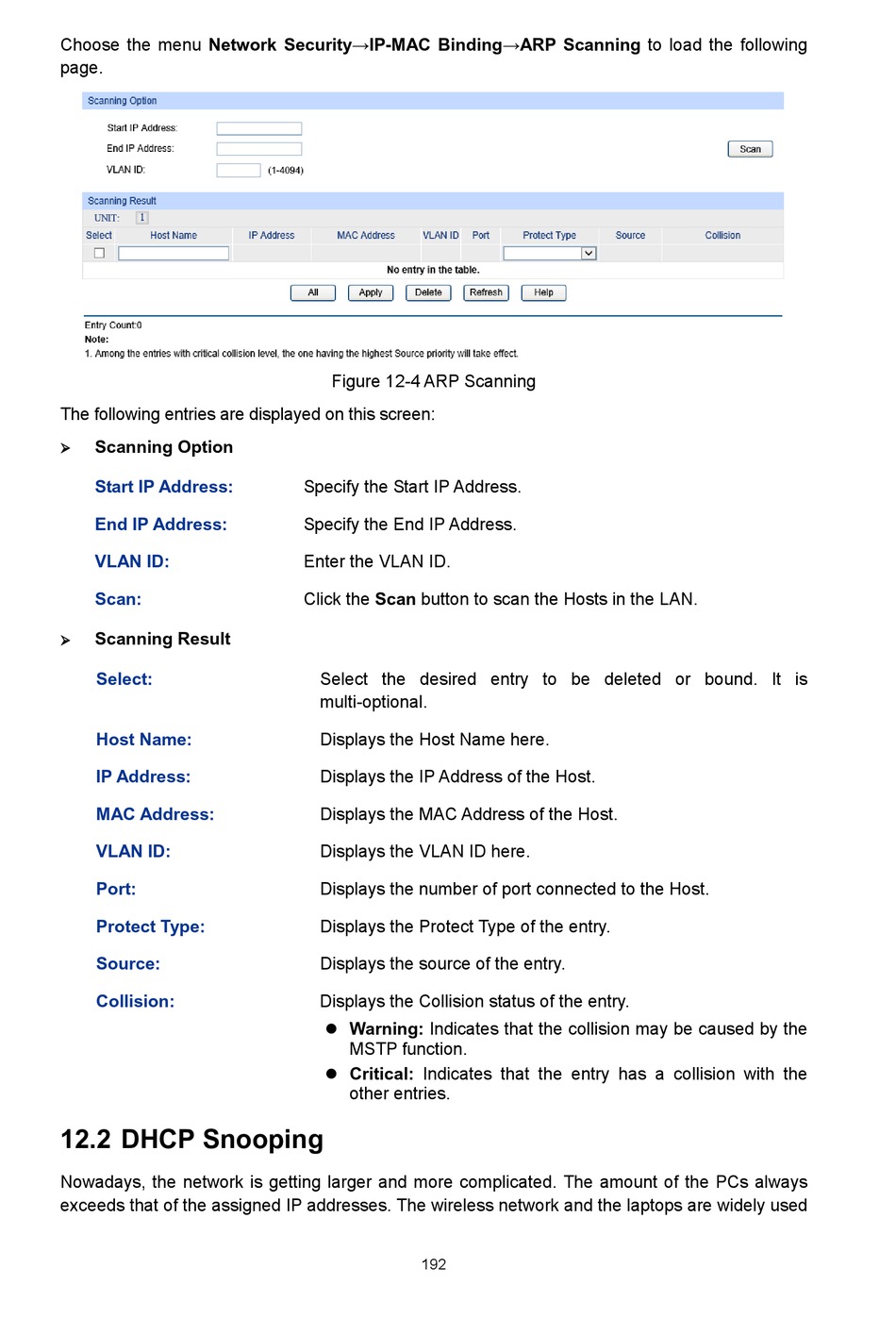

Choose the menu Network Security→IP-MAC Binding→ARP Scanning to load the following
page.
The following entries are displayed on this screen:
Scanning Option

Start IP Address:
End IP Address:
VLAN ID:
Scan:
Scanning Result

Select:
Host Name:
IP Address:
MAC Address:
VLAN ID:
Port:
Protect Type:
Source:
Collision:

12.2 DHCP Snooping

Nowadays, the network is getting larger and more complicated. The amount of the PCs always
exceeds that of the assigned IP addresses. The wireless network and the laptops are widely used
Figure 12-4 ARP Scanning
Specify the Start IP Address.
Specify the End IP Address.
Enter the VLAN ID.
Click the Scan button to scan the Hosts in the LAN.
Select the desired entry to be deleted or bound. It is
multi-optional.
Displays the Host Name here.
Displays the IP Address of the Host.
Displays the MAC Address of the Host.
Displays the VLAN ID here.
Displays the number of port connected to the Host.
Displays the Protect Type of the entry.
Displays the source of the entry.
Displays the Collision status of the entry.
 Warning: Indicates that the collision may be caused by the
MSTP function.
 Critical: Indicates that the entry has a collision with the
other entries.
192
