Choose the menu Multicast→MLD Snooping→Multicast VLAN to load the following page.
The following entries are displayed on this screen:
Multicast VLAN

Multicast VLAN:
VLAN ID:
Router Port Time:
Member Port Time:
Replace Source IP:
Dynamic Router
Ports:
Static Router Ports:

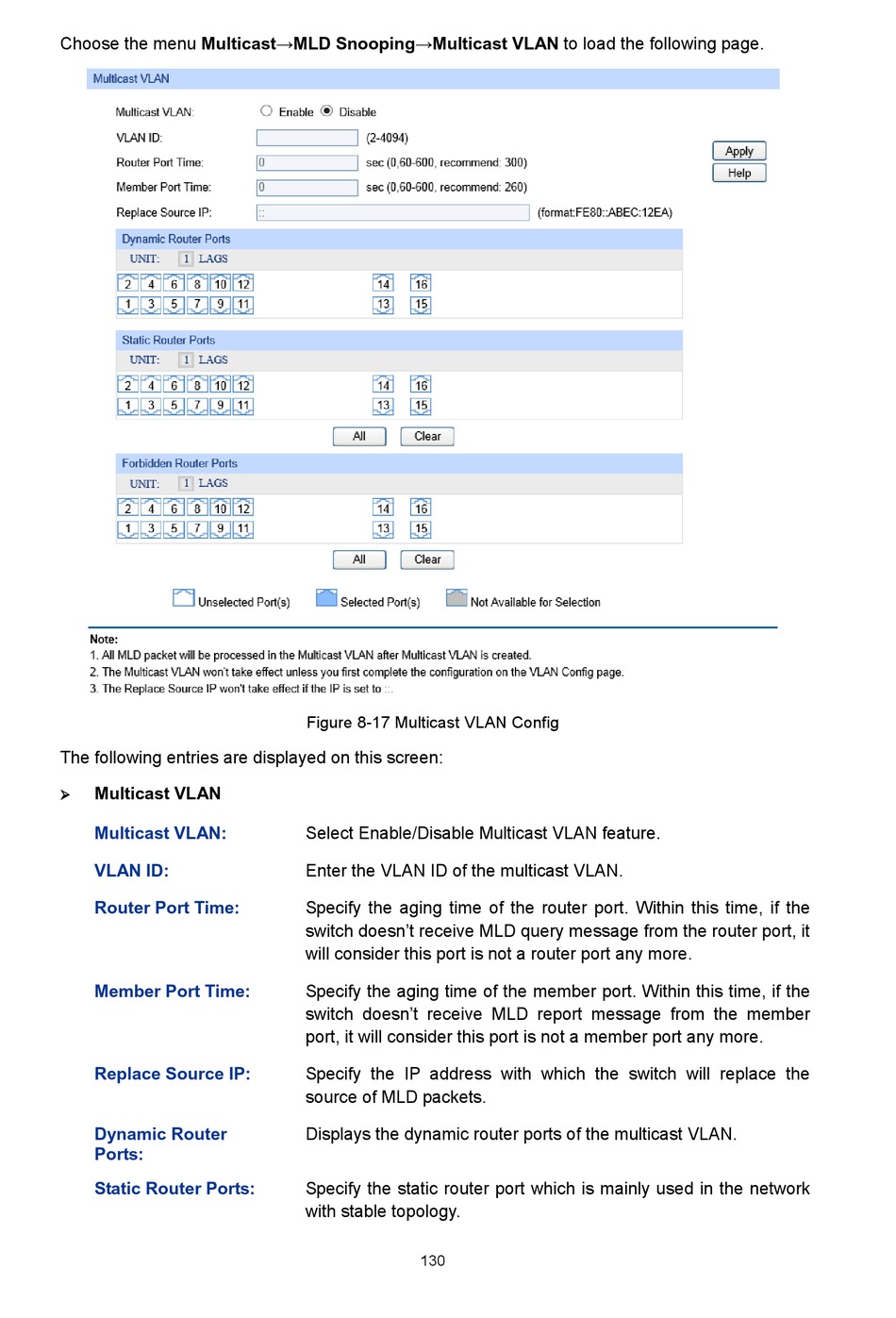

Figure 8-17 Multicast VLAN Config
Select Enable/Disable Multicast VLAN feature.
Enter the VLAN ID of the multicast VLAN.
Specify the aging time of the router port. Within this time, if the
switch doesn't receive MLD query message from the router port, it
will consider this port is not a router port any more.
Specify the aging time of the member port. Within this time, if the
switch doesn't receive MLD report message from the member
port, it will consider this port is not a member port any more.
Specify the IP address with which the switch will replace the
source of MLD packets.
Displays the dynamic router ports of the multicast VLAN.
Specify the static router port which is mainly used in the network
with stable topology.
