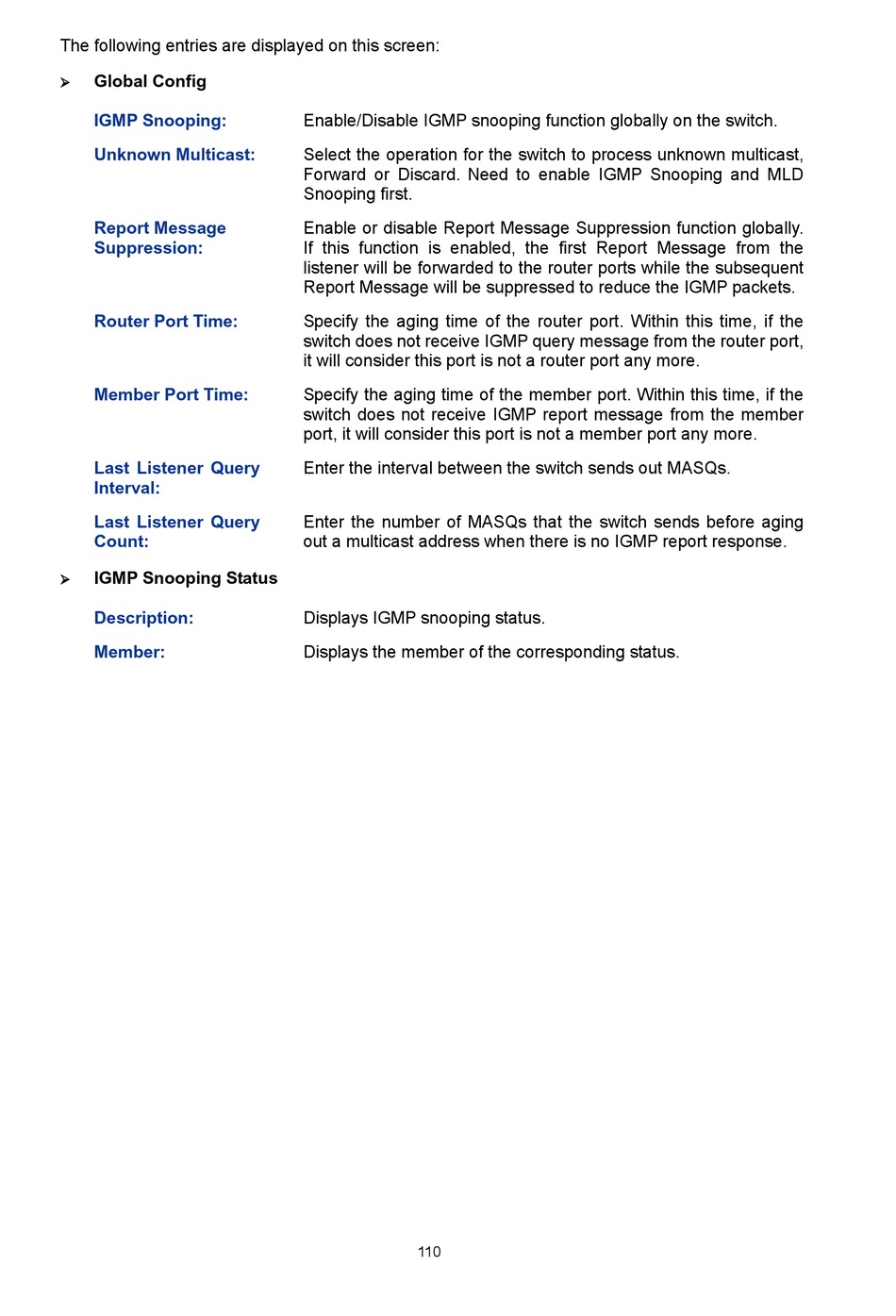

TP-Link T1700X-16TS User Manual page 122

The following entries are displayed on this screen:
Global Config

IGMP Snooping:
Unknown Multicast:
Report Message
Suppression:
Router Port Time:
Member Port Time:
Last Listener Query
Interval:
Last Listener Query
Count:
IGMP Snooping Status

Description:
Member:
Enable/Disable IGMP snooping function globally on the switch.
Select the operation for the switch to process unknown multicast,
Forward or Discard. Need to enable IGMP Snooping and MLD
Snooping first.
Enable or disable Report Message Suppression function globally.
If this function is enabled, the first Report Message from the
listener will be forwarded to the router ports while the subsequent
Report Message will be suppressed to reduce the IGMP packets.
Specify the aging time of the router port. Within this time, if the
switch does not receive IGMP query message from the router port,
it will consider this port is not a router port any more.
Specify the aging time of the member port. Within this time, if the
switch does not receive IGMP report message from the member
port, it will consider this port is not a member port any more.
Enter the interval between the switch sends out MASQs.
Enter the number of MASQs that the switch sends before aging
out a multicast address when there is no IGMP report response.
Displays IGMP snooping status.
Displays the member of the corresponding status.
