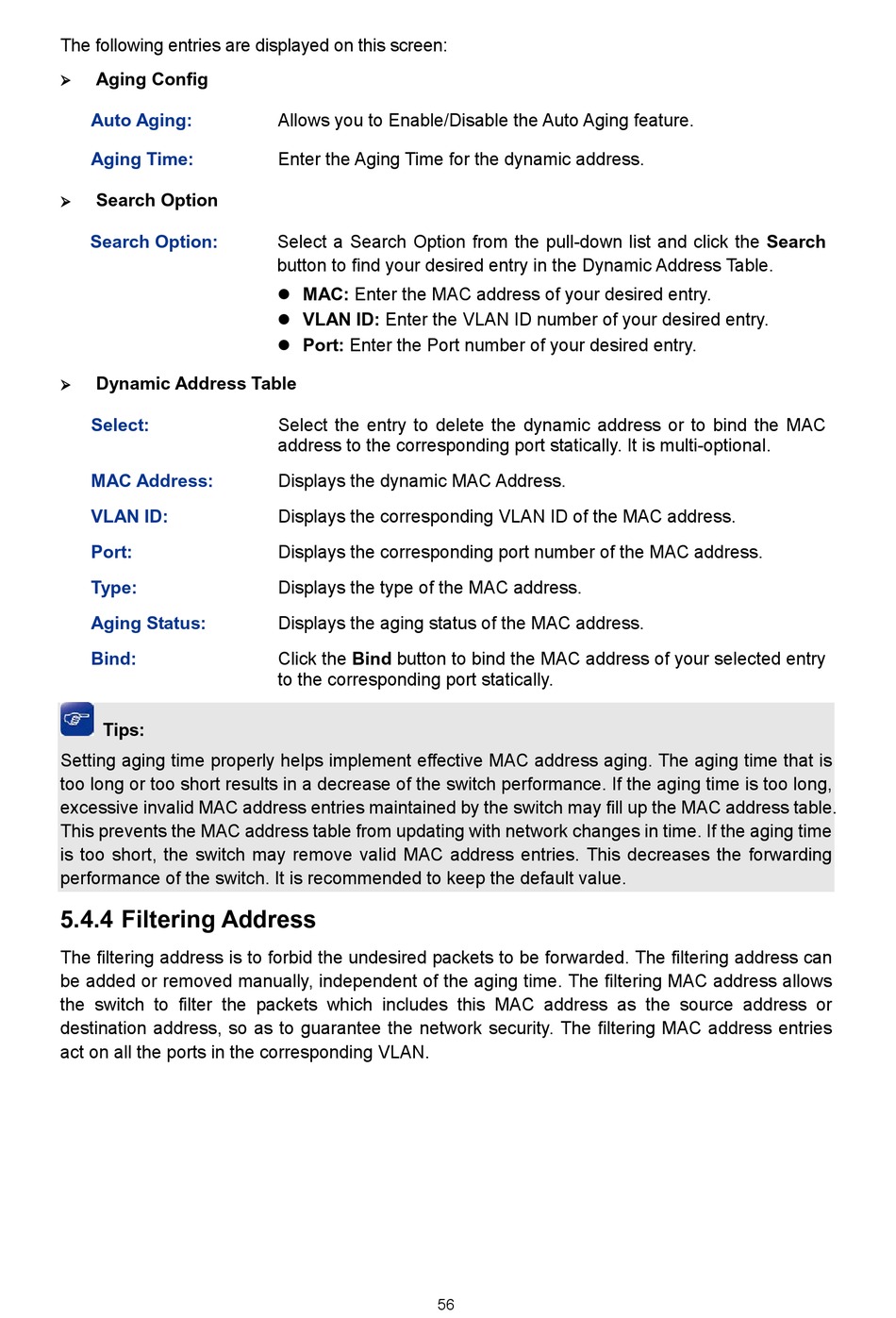

The following entries are displayed on this screen:
Aging Config

Auto Aging:
Aging Time:
Search Option

Search Option:
Dynamic Address Table

Select:
MAC Address:
VLAN ID:
Port:
Type:
Aging Status:
Bind:
Tips:
Setting aging time properly helps implement effective MAC address aging. The aging time that is
too long or too short results in a decrease of the switch performance. If the aging time is too long,
excessive invalid MAC address entries maintained by the switch may fill up the MAC address table.
This prevents the MAC address table from updating with network changes in time. If the aging time
is too short, the switch may remove valid MAC address entries. This decreases the forwarding
performance of the switch. It is recommended to keep the default value.

5.4.4 Filtering Address

The filtering address is to forbid the undesired packets to be forwarded. The filtering address can
be added or removed manually, independent of the aging time. The filtering MAC address allows
the switch to filter the packets which includes this MAC address as the source address or
destination address, so as to guarantee the network security. The filtering MAC address entries
act on all the ports in the corresponding VLAN.
Allows you to Enable/Disable the Auto Aging feature.
Enter the Aging Time for the dynamic address.
Select a Search Option from the pull-down list and click the Search
button to find your desired entry in the Dynamic Address Table.
 MAC: Enter the MAC address of your desired entry.
 VLAN ID: Enter the VLAN ID number of your desired entry.
 Port: Enter the Port number of your desired entry.
Select the entry to delete the dynamic address or to bind the MAC
address to the corresponding port statically. It is multi-optional.
Displays the dynamic MAC Address.
Displays the corresponding VLAN ID of the MAC address.
Displays the corresponding port number of the MAC address.
Displays the type of the MAC address.
Displays the aging status of the MAC address.
Click the Bind button to bind the MAC address of your selected entry
to the corresponding port statically.
56
