Index:
ACL ID:

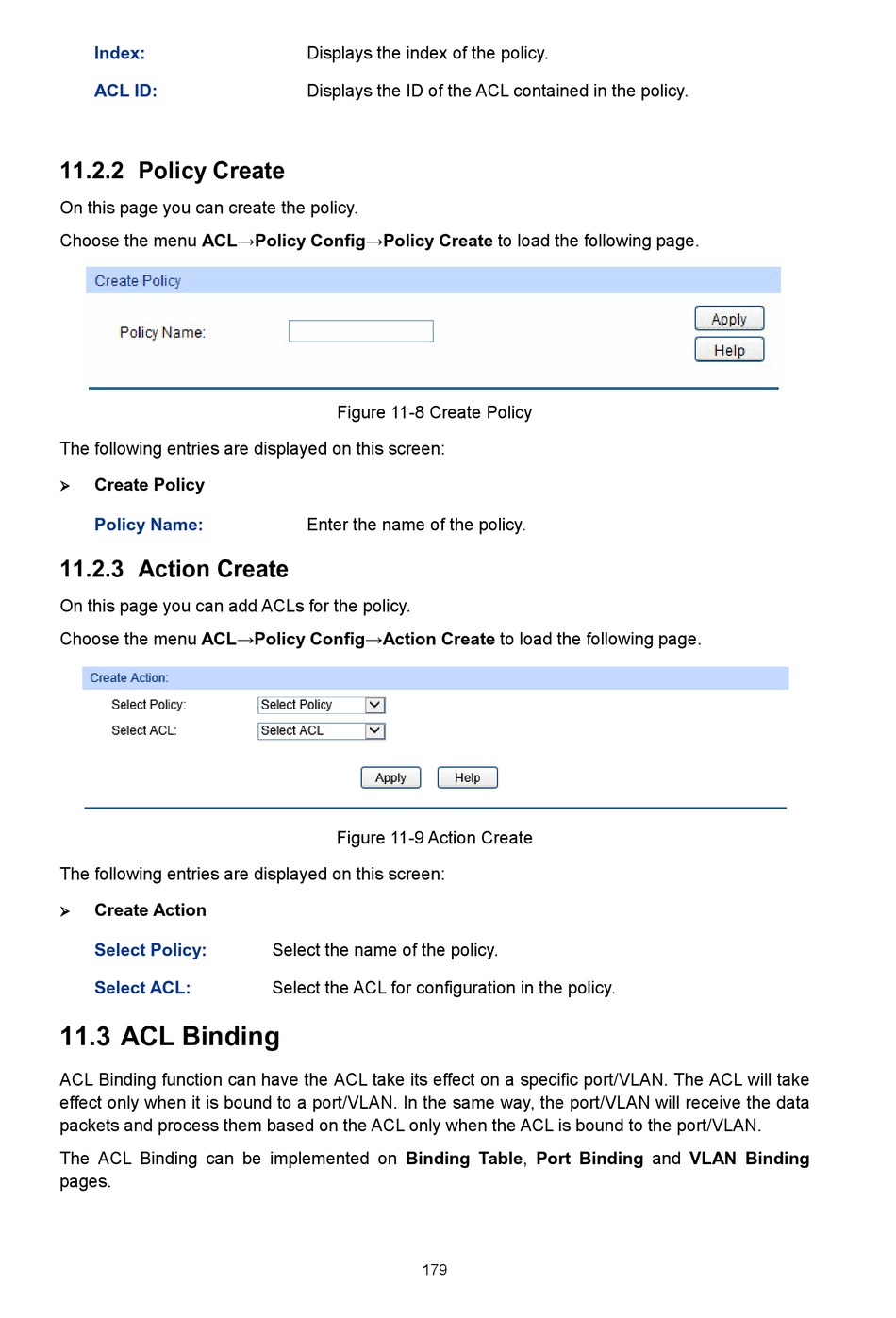

11.2.2 Policy Create

On this page you can create the policy.
Choose the menu ACL→Policy Config→Policy Create to load the following page.
The following entries are displayed on this screen:
Create Policy

Policy Name:

11.2.3 Action Create

On this page you can add ACLs for the policy.
Choose the menu ACL→Policy Config→Action Create to load the following page.
The following entries are displayed on this screen:
Create Action

Select Policy:
Select ACL:

11.3 ACL Binding

ACL Binding function can have the ACL take its effect on a specific port/VLAN. The ACL will take
effect only when it is bound to a port/VLAN. In the same way, the port/VLAN will receive the data
packets and process them based on the ACL only when the ACL is bound to the port/VLAN.
The ACL Binding can be implemented on Binding Table, Port Binding and VLAN Binding
pages.
Displays the index of the policy.
Displays the ID of the ACL contained in the policy.
Figure 11-8 Create Policy
Enter the name of the policy.
Figure 11-9 Action Create
Select the name of the policy.
Select the ACL for configuration in the policy.
179
