TP-Link T1700X-16TS User Manual page 144

Choose the menu Multicast→MLD Snooping→Querier Config to load the following page.
The following entries are displayed on this screen:
MLD Snooping Querier Config

VLAN ID:
Query Interval:
Max Response Time:
General Query
Source IP:
MLD Snooping Querier List

Select:
VLAN ID:
Query Interval:
Max Response Time:
General Query
Source IP:
Note:
The MLD Snooping Querier doesn't participate in the MLD Querier Election, but an MLD Snooping
Querier will affect the MLD Querier Election in the IPv6 network running MLD because of its
relatively smaller IP address.

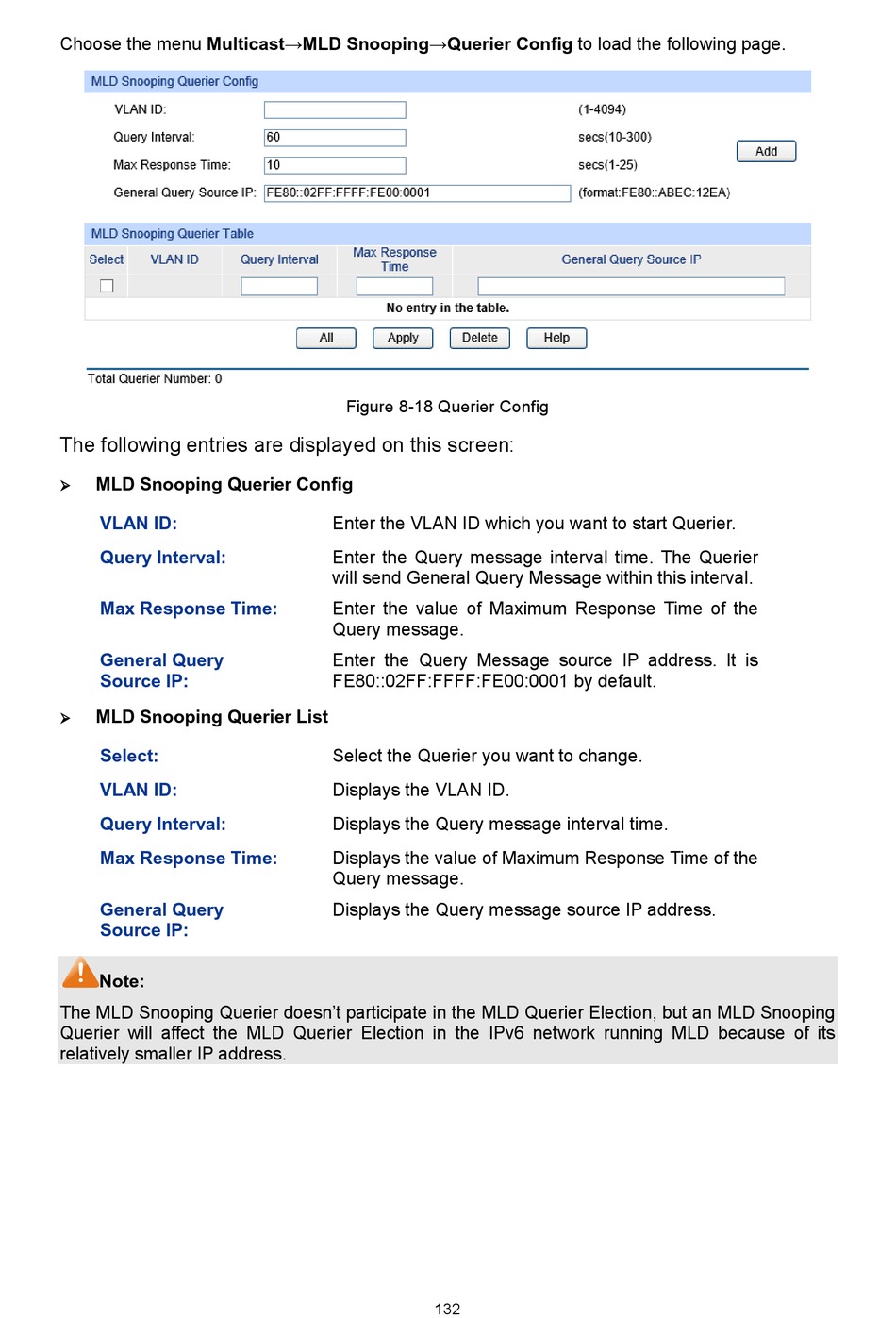

Figure 8-18 Querier Config
Enter the VLAN ID which you want to start Querier.
Enter the Query message interval time. The Querier
will send General Query Message within this interval.
Enter the value of Maximum Response Time of the
Query message.
Enter the Query Message source IP address. It is
FE80::02FF:FFFF:FE00:0001 by default.
Select the Querier you want to change.
Displays the VLAN ID.
Displays the Query message interval time.
Displays the value of Maximum Response Time of the
Query message.
Displays the Query message source IP address.
132
