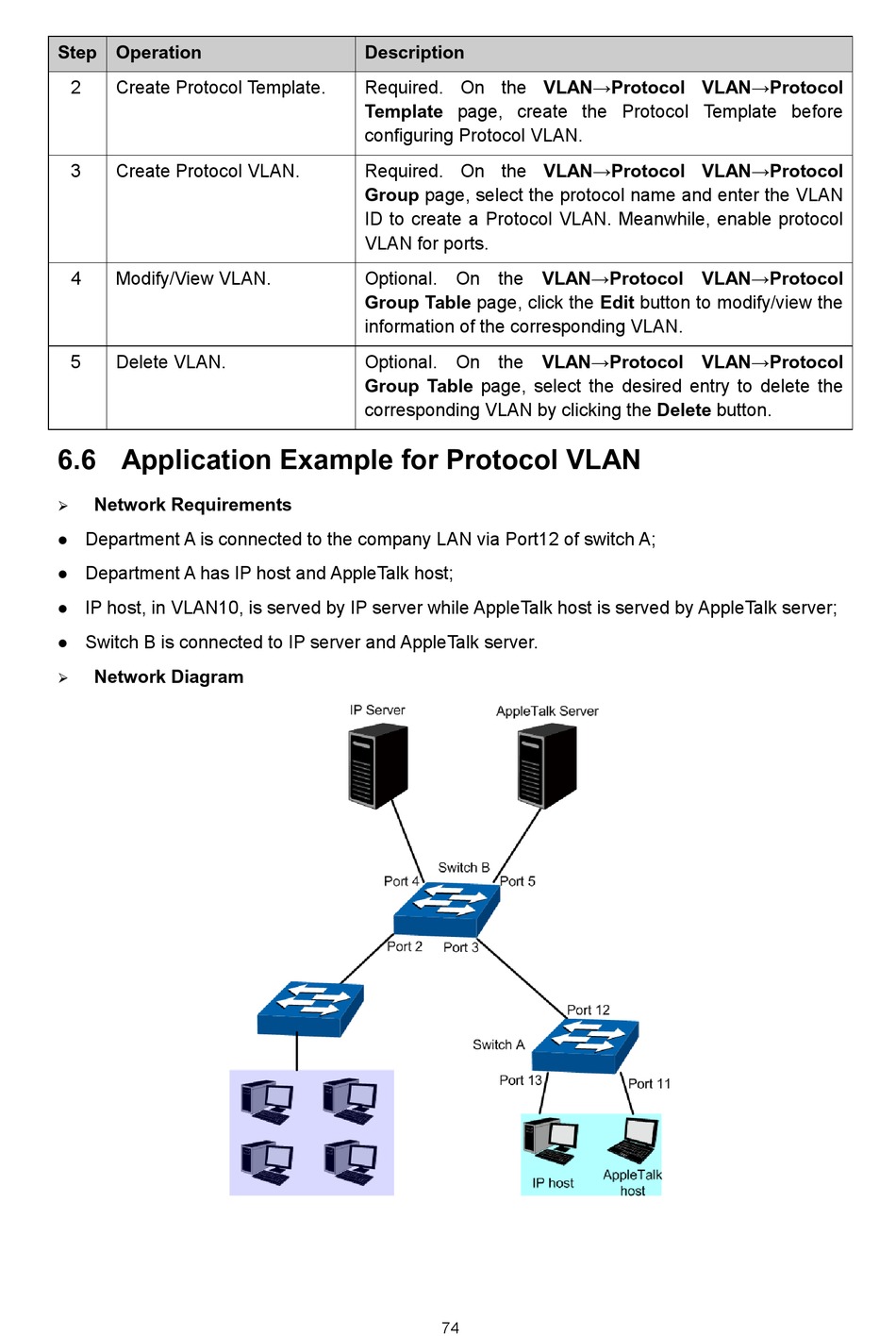

Application Example For Protocol Vlan - TP-Link T1700X-16TS User Manual

Step Operation
2 Create Protocol Template.
3 Create Protocol VLAN.
4 Modify/View VLAN.
5 Delete VLAN.

6.6 Application Example for Protocol VLAN

Network Requirements

Department A is connected to the company LAN via Port12 of switch A;

Department A has IP host and AppleTalk host;

IP host, in VLAN10, is served by IP server while AppleTalk host is served by AppleTalk server;

Switch B is connected to IP server and AppleTalk server.

Network Diagram

Description
Required. On the VLAN→Protocol VLAN→Protocol
Template page, create the Protocol Template before
configuring Protocol VLAN.
Required. On the VLAN→Protocol VLAN→Protocol
Group page, select the protocol name and enter the VLAN
ID to create a Protocol VLAN. Meanwhile, enable protocol
VLAN for ports.
Optional. On the VLAN→Protocol VLAN→Protocol
Group Table page, click the Edit button to modify/view the
information of the corresponding VLAN.
Optional. On the VLAN→Protocol VLAN→Protocol
Group Table page, select the desired entry to delete the
corresponding VLAN by clicking the Delete button.
