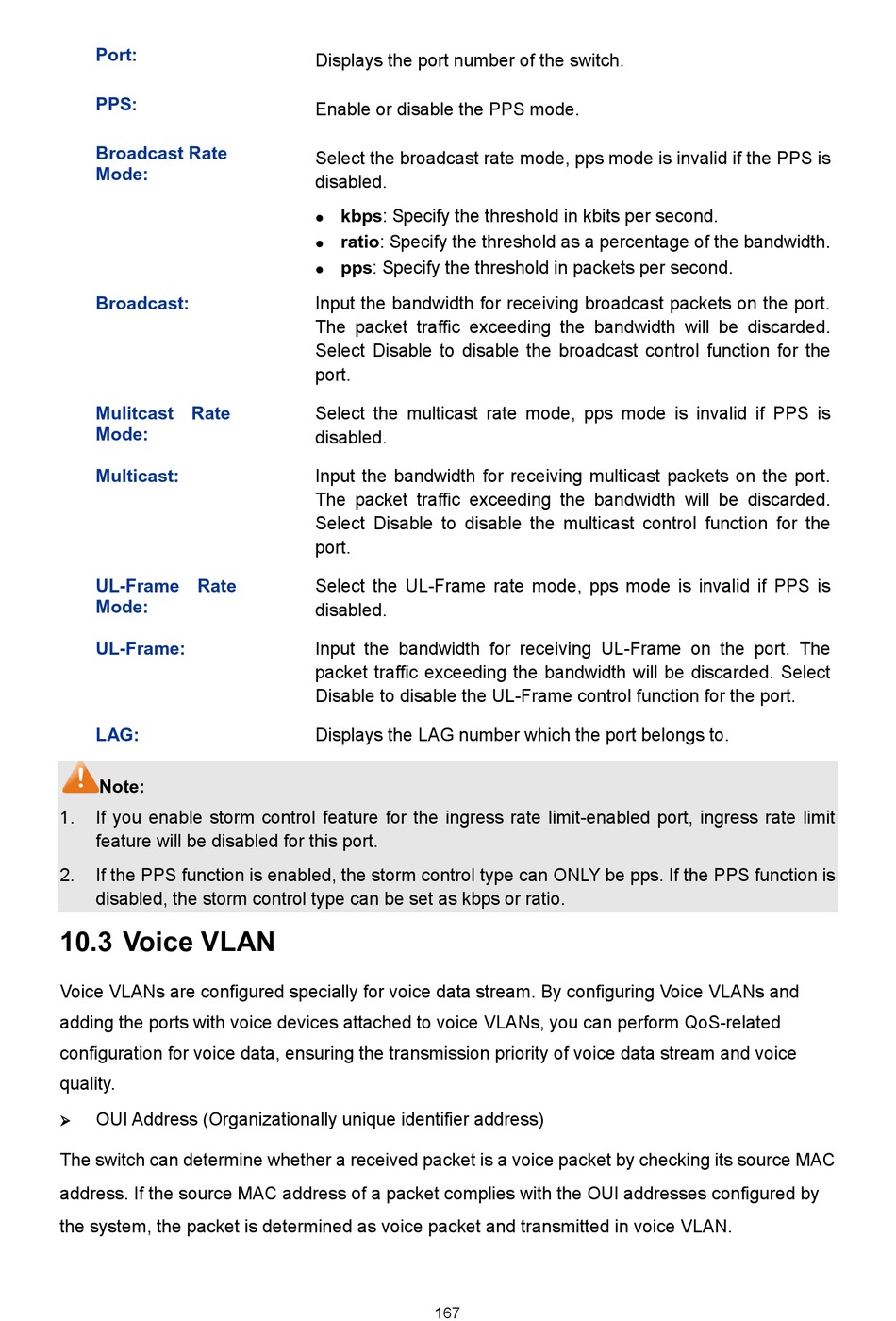

Port:
PPS:
Broadcast Rate
Mode:
Broadcast:
Mulitcast Rate
Mode:
Multicast:
UL-Frame Rate
Mode:
UL-Frame:
LAG:
Note:
1.
If you enable storm control feature for the ingress rate limit-enabled port, ingress rate limit
feature will be disabled for this port.
2.
If the PPS function is enabled, the storm control type can ONLY be pps. If the PPS function is
disabled, the storm control type can be set as kbps or ratio.
10.3 Voice VLAN
Voice VLANs are configured specially for voice data stream. By configuring Voice VLANs and
adding the ports with voice devices attached to voice VLANs, you can perform QoS-related
configuration for voice data, ensuring the transmission priority of voice data stream and voice
quality.
OUI Address (Organizationally unique identifier address)
The switch can determine whether a received packet is a voice packet by checking its source MAC
address. If the source MAC address of a packet complies with the OUI addresses configured by
the system, the packet is determined as voice packet and transmitted in voice VLAN.
Displays the port number of the switch.
Enable or disable the PPS mode.
Select the broadcast rate mode, pps mode is invalid if the PPS is
disabled.
kbps: Specify the threshold in kbits per second.
ratio: Specify the threshold as a percentage of the bandwidth.
pps: Specify the threshold in packets per second.
Input the bandwidth for receiving broadcast packets on the port.
The packet traffic exceeding the bandwidth will be discarded.
Select Disable to disable the broadcast control function for the
port.
Select the multicast rate mode, pps mode is invalid if PPS is
disabled.
Input the bandwidth for receiving multicast packets on the port.
The packet traffic exceeding the bandwidth will be discarded.
Select Disable to disable the multicast control function for the
port.
Select the UL-Frame rate mode, pps mode is invalid if PPS is
disabled.
Input the bandwidth for receiving UL-Frame on the port. The
packet traffic exceeding the bandwidth will be discarded. Select
Disable to disable the UL-Frame control function for the port.
Displays the LAG number which the port belongs to.
167
