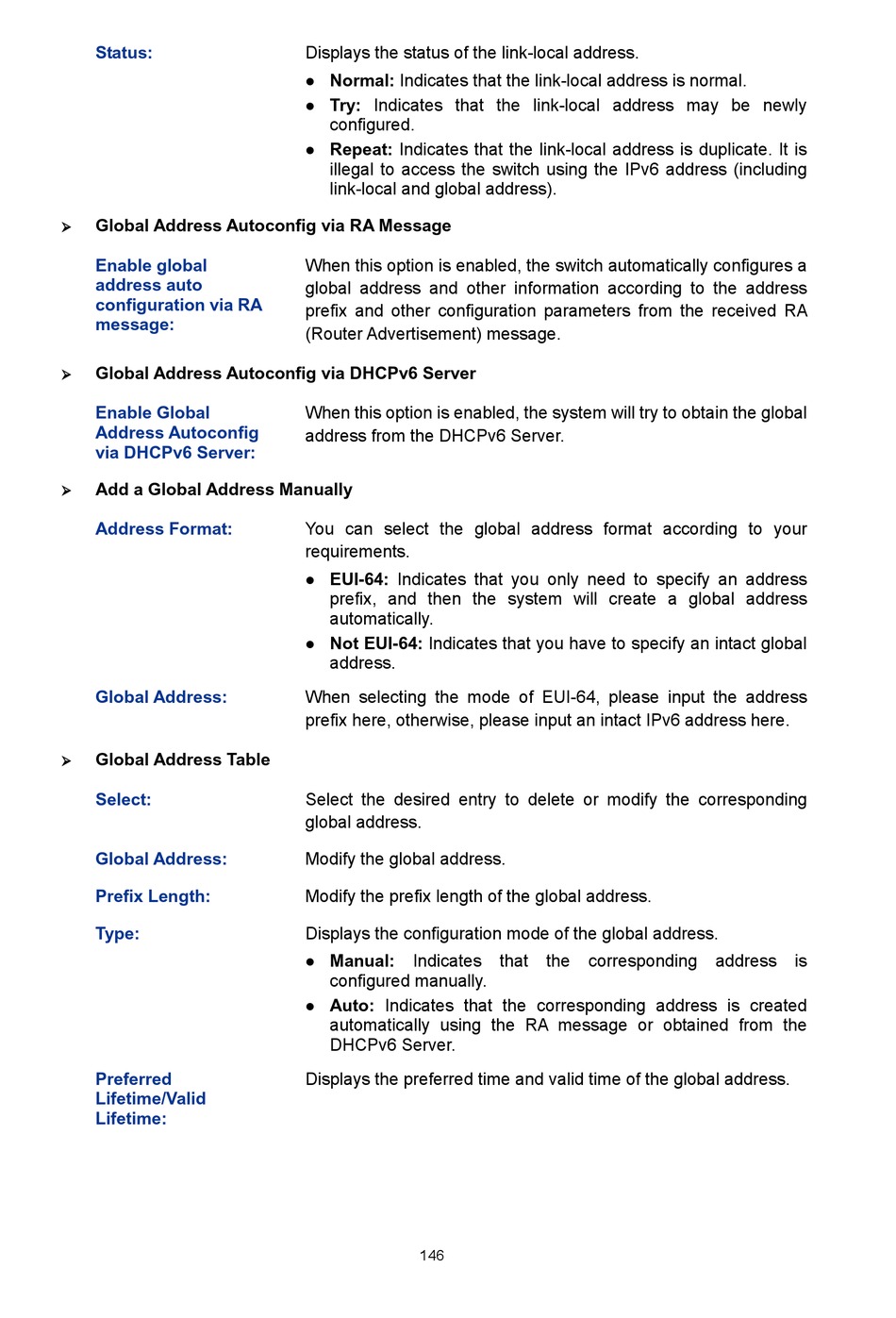

TP-Link T1700X-16TS User Manual page 158

Status:
Global Address Autoconfig via RA Message

Enable global
address auto
configuration via RA
message:
Global Address Autoconfig via DHCPv6 Server

Enable Global
Address Autoconfig
via DHCPv6 Server:
Add a Global Address Manually

Address Format:
Global Address:
Global Address Table

Select:
Global Address:
Prefix Length:
Type:
Preferred
Lifetime/Valid
Lifetime:
Displays the status of the link-local address.
Normal: Indicates that the link-local address is normal.

Try: Indicates that the link-local address may be newly

configured.
Repeat: Indicates that the link-local address is duplicate. It is

illegal to access the switch using the IPv6 address (including
link-local and global address).
When this option is enabled, the switch automatically configures a
global address and other information according to the address
prefix and other configuration parameters from the received RA
(Router Advertisement) message.
When this option is enabled, the system will try to obtain the global
address from the DHCPv6 Server.
You can select the global address format according to your
requirements.
EUI-64: Indicates that you only need to specify an address

prefix, and then the system will create a global address
automatically.
Not EUI-64: Indicates that you have to specify an intact global

address.
When selecting the mode of EUI-64, please input the address
prefix here, otherwise, please input an intact IPv6 address here.
Select the desired entry to delete or modify the corresponding
global address.
Modify the global address.
Modify the prefix length of the global address.
Displays the configuration mode of the global address.
Indicates that the corresponding address is
Manual:

configured manually.
Auto: Indicates that the corresponding address is created

automatically using the RA message or obtained from the
DHCPv6 Server.
Displays the preferred time and valid time of the global address.
146
