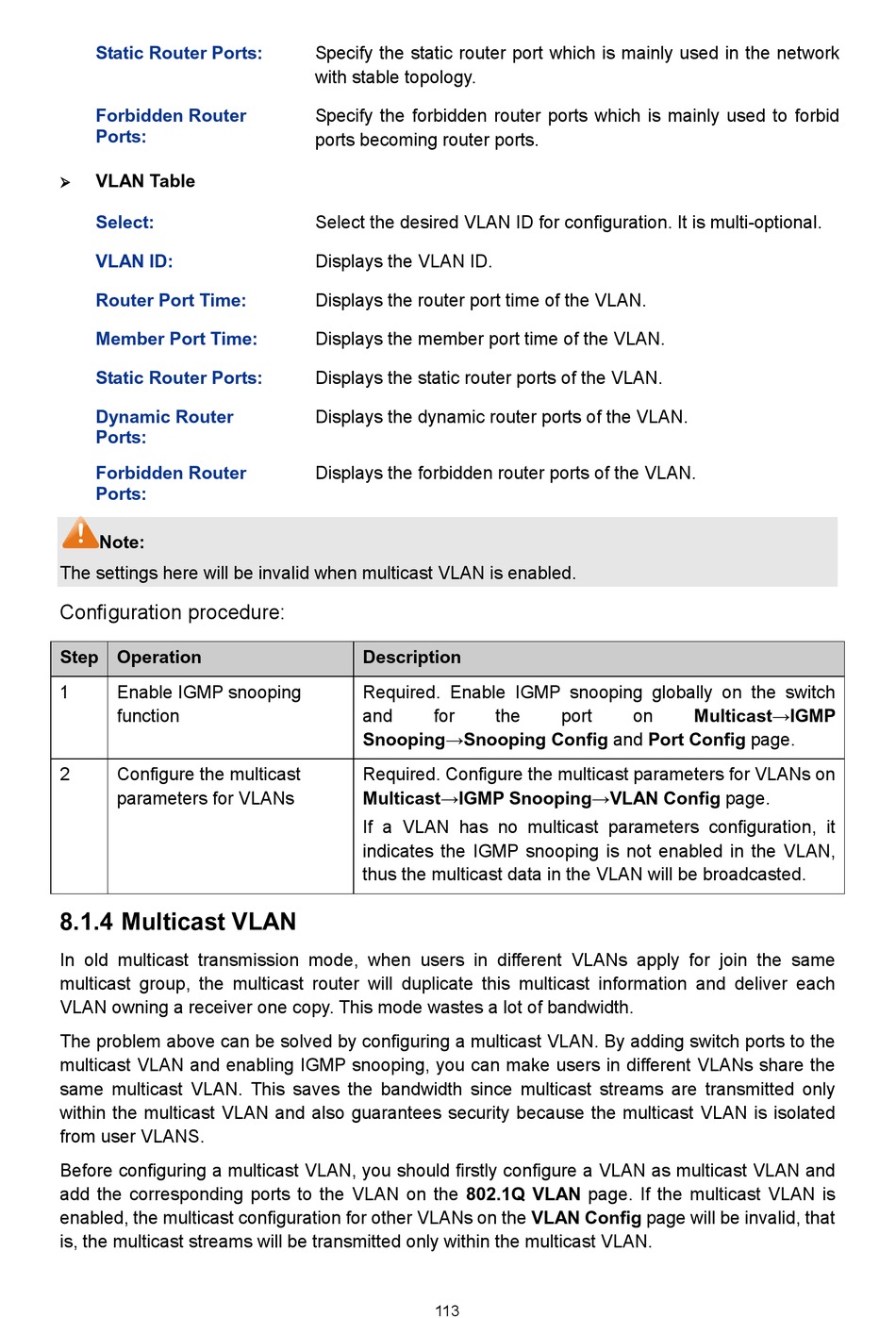

Static Router Ports:
Forbidden Router
Ports:
VLAN Table

Select:
VLAN ID:
Router Port Time:
Member Port Time:
Static Router Ports:
Dynamic Router
Ports:
Forbidden Router
Ports:
Note:
The settings here will be invalid when multicast VLAN is enabled.
Configuration procedure:
Step Operation
1 Enable IGMP snooping
function
2 Configure the multicast
parameters for VLANs

8.1.4 Multicast VLAN

In old multicast transmission mode, when users in different VLANs apply for join the same
multicast group, the multicast router will duplicate this multicast information and deliver each
VLAN owning a receiver one copy. This mode wastes a lot of bandwidth.
The problem above can be solved by configuring a multicast VLAN. By adding switch ports to the
multicast VLAN and enabling IGMP snooping, you can make users in different VLANs share the
same multicast VLAN. This saves the bandwidth since multicast streams are transmitted only
within the multicast VLAN and also guarantees security because the multicast VLAN is isolated
from user VLANS.
Before configuring a multicast VLAN, you should firstly configure a VLAN as multicast VLAN and
add the corresponding ports to the VLAN on the 802.1Q VLAN page. If the multicast VLAN is
enabled, the multicast configuration for other VLANs on the VLAN Config page will be invalid, that
is, the multicast streams will be transmitted only within the multicast VLAN.
Specify the static router port which is mainly used in the network
with stable topology.
Specify the forbidden router ports which is mainly used to forbid
ports becoming router ports.
Select the desired VLAN ID for configuration. It is multi-optional.
Displays the VLAN ID.
Displays the router port time of the VLAN.
Displays the member port time of the VLAN.
Displays the static router ports of the VLAN.
Displays the dynamic router ports of the VLAN.
Displays the forbidden router ports of the VLAN.
Description
Required. Enable IGMP snooping globally on the switch
and for
Snooping→Snooping Config and Port Config page.
Required. Configure the multicast parameters for VLANs on
Multicast→IGMP Snooping→VLAN Config page.
If a VLAN has no multicast parameters configuration, it
indicates the IGMP snooping is not enabled in the VLAN,
thus the multicast data in the VLAN will be broadcasted.
113
the port on
Multicast→IGMP
