The following entries are displayed on this screen:
Create Protocol Template

Protocol Name:
Frame Type:
Ether Type:
DSAP:
SSAP:
Protocol Template Table

Select:
ID
Protocol Name:
Protocol Type:
Note:
The Protocol Template bound to VLAN cannot be deleted.
Configuration Procedure:
Step Operation
1 Create VLAN.

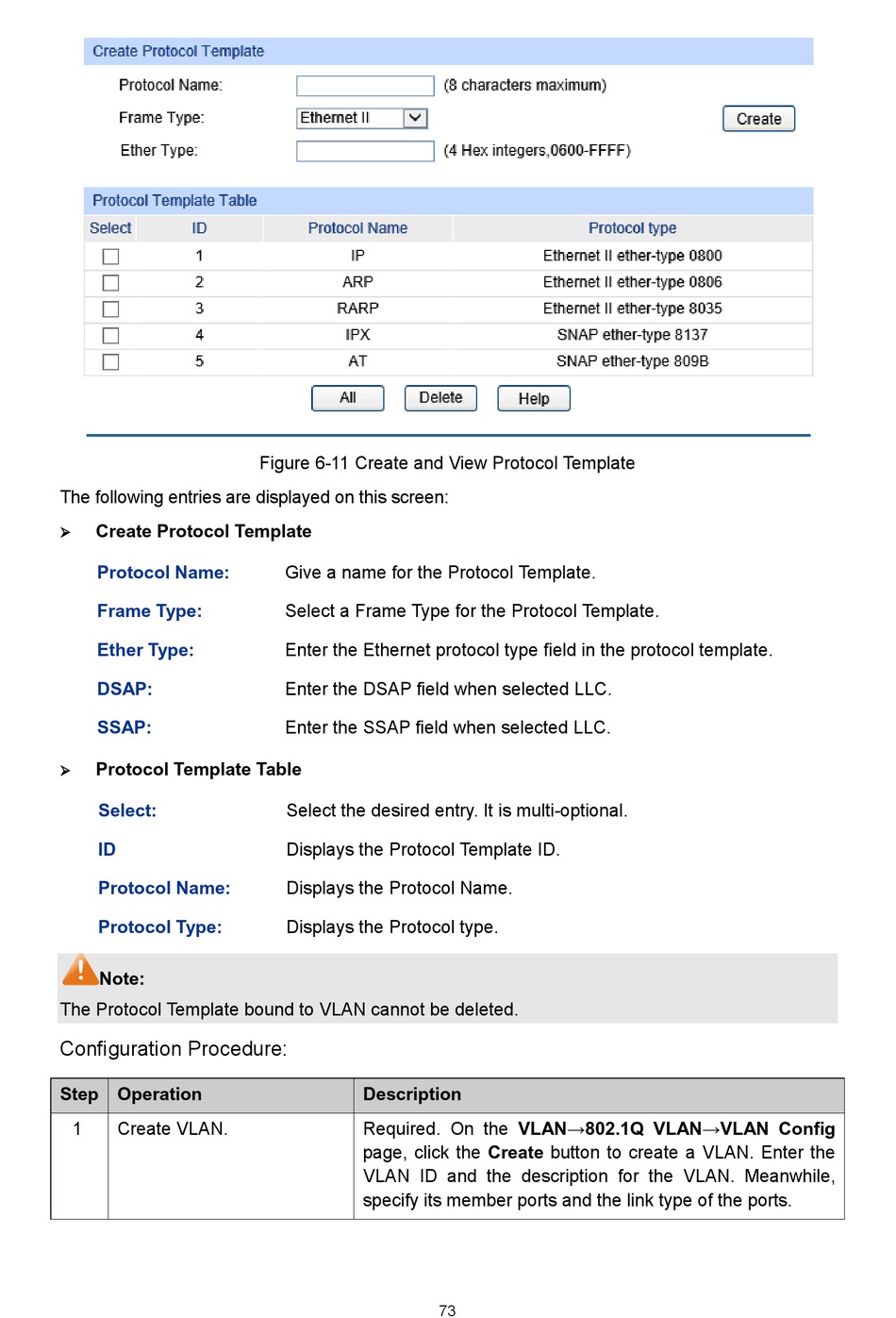

Figure 6-11 Create and View Protocol Template
Give a name for the Protocol Template.
Select a Frame Type for the Protocol Template.
Enter the Ethernet protocol type field in the protocol template.
Enter the DSAP field when selected LLC.
Enter the SSAP field when selected LLC.
Select the desired entry. It is multi-optional.
Displays the Protocol Template ID.
Displays the Protocol Name.
Displays the Protocol type.
Description
Required. On the VLAN→802.1Q VLAN→VLAN Config
page, click the Create button to create a VLAN. Enter the
VLAN ID and the description for the VLAN. Meanwhile,
specify its member ports and the link type of the ports.
