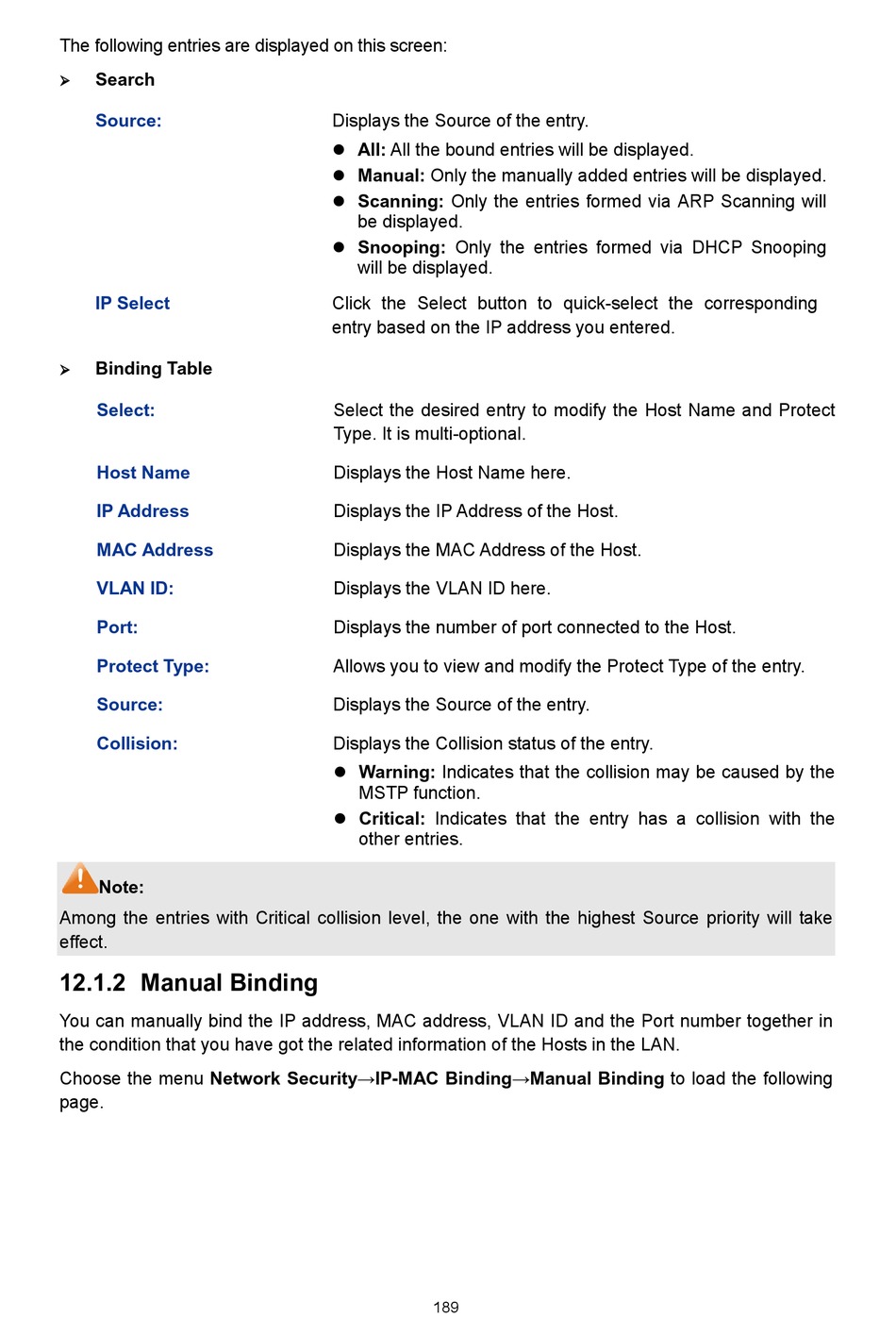

The following entries are displayed on this screen:
Search

Source:
IP Select
Binding Table

Select:
Host Name
IP Address
MAC Address
VLAN ID:
Port:
Protect Type:
Source:
Collision:
Note:
Among the entries with Critical collision level, the one with the highest Source priority will take
effect.

12.1.2 Manual Binding

You can manually bind the IP address, MAC address, VLAN ID and the Port number together in
the condition that you have got the related information of the Hosts in the LAN.
Choose the menu Network Security→IP-MAC Binding→Manual Binding to load the following
page.
Displays the Source of the entry.
 All: All the bound entries will be displayed.
 Manual: Only the manually added entries will be displayed.
 Scanning: Only the entries formed via ARP Scanning will
be displayed.
 Snooping: Only the entries formed via DHCP Snooping
will be displayed.
Click the Select button to quick-select the corresponding
entry based on the IP address you entered.
Select the desired entry to modify the Host Name and Protect
Type. It is multi-optional.
Displays the Host Name here.
Displays the IP Address of the Host.
Displays the MAC Address of the Host.
Displays the VLAN ID here.
Displays the number of port connected to the Host.
Allows you to view and modify the Protect Type of the entry.
Displays the Source of the entry.
Displays the Collision status of the entry.
 Warning: Indicates that the collision may be caused by the
MSTP function.
 Critical: Indicates that the entry has a collision with the
other entries.
