2
.
4
L
o
a
d
i
n
g
R
2
.
4
L
o
a
d
i
n
g
R
2
.
4
L
o
a
d
i
n
g
R

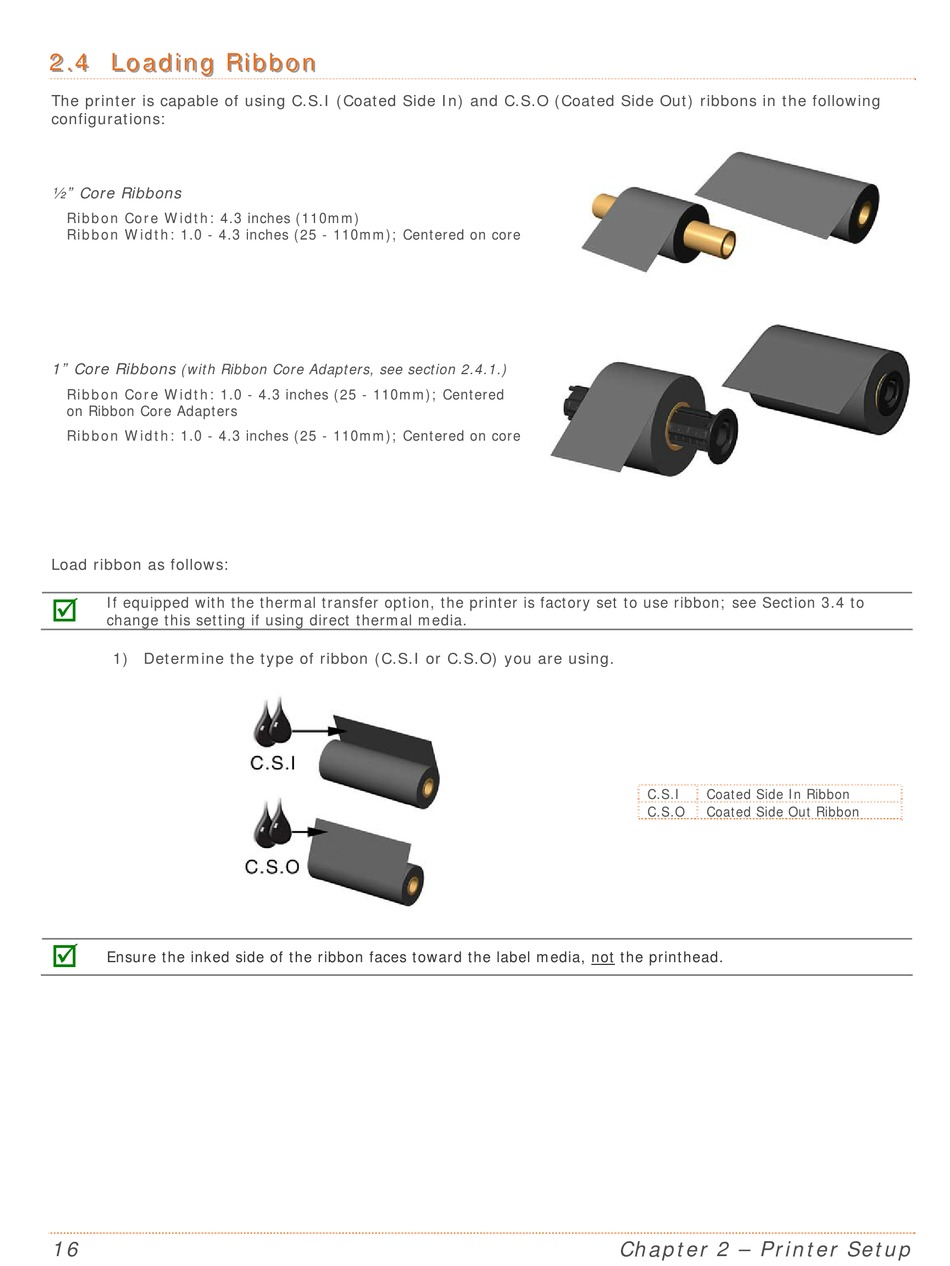

The printer is capable of using C.S.I (Coated Side In) and C.S.O (Coated Side Out) ribbons in the following
configurations:
½" Core Ribbons
Ribbon Core Width: 4.3 inches (110mm)
Ribbon Width: 1.0 - 4.3 inches (25 - 110mm); Centered on core
1" Core Ribbons
(with Ribbon Core Adapters, see section 2.4.1.)
Ribbon Core Width: 1.0 - 4.3 inches (25 - 110mm); Centered
on Ribbon Core Adapters
Ribbon Width: 1.0 - 4.3 inches (25 - 110mm); Centered on core
Load ribbon as follows:
If equipped with the thermal transfer option, the printer is factory set to use ribbon; see Section 3.4 to
change this setting if using direct thermal media.
1) Determine the type of ribbon (C.S.I or C.S.O) you are using.
Ensure the inked side of the ribbon faces toward the label media, not the printhead.
16
i
b
b
o
n
i
b
b
o
n
i
b
b
o
n
312
C.S.I
Coated Side In Ribbon
C.S.O
Coated Side Out Ribbon
Chapter 2 – Printer Setup
