Programming Console Function

6-12-3 Method of Use

Reference:

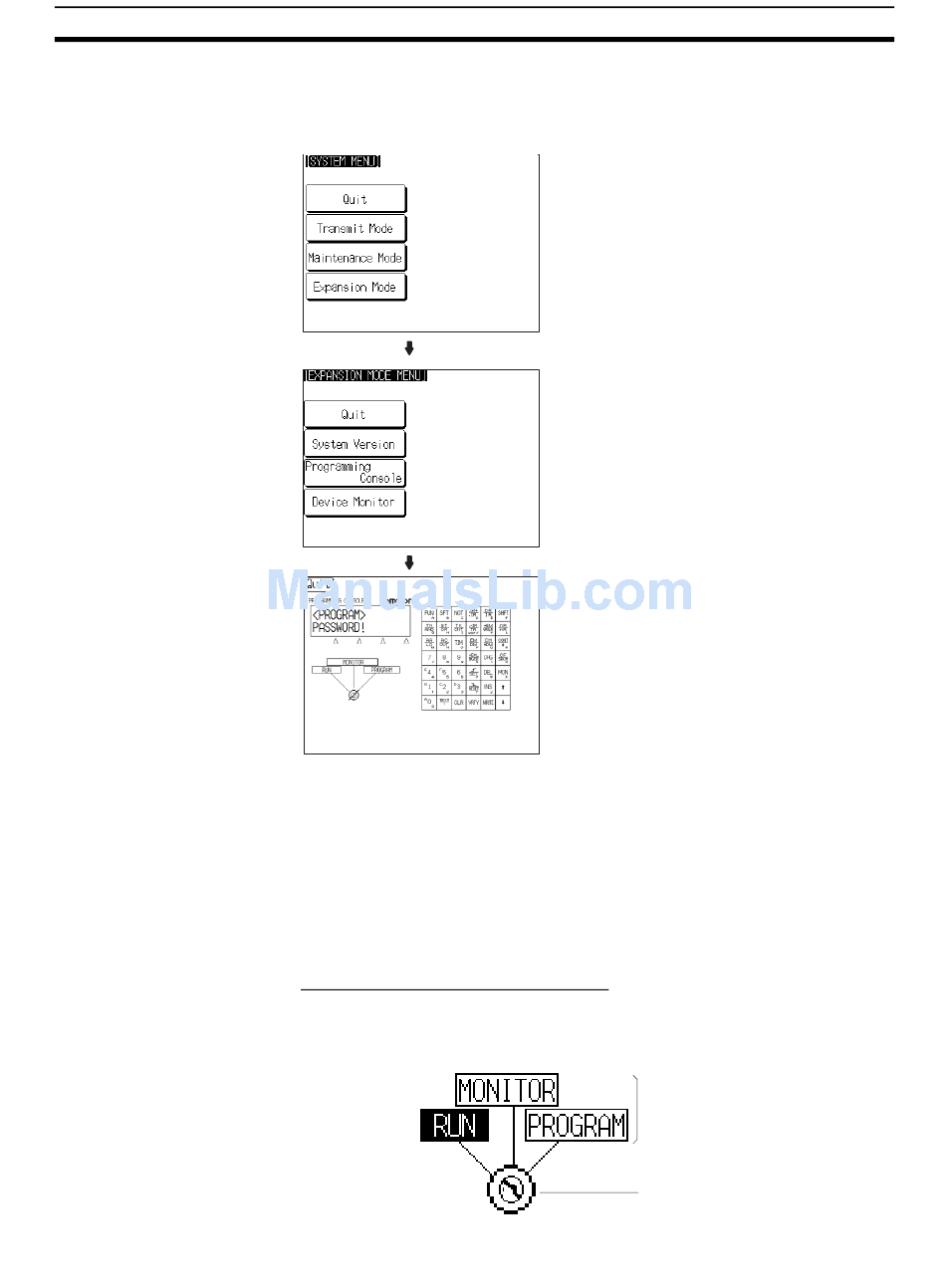

Key Operations
The Programming Console screen is displayed by operating the system menu
as described below.
*1
With the CS1G/CS1H, the Programming Console function can not be used
simultaneously at both the built-in RS-232C port and peripheral port.
If an error screen is displayed, the System Menu can be displayed from the
error screen by pressing two of the four corners of the touch panel
simultaneously. Pressing the OK touch switch on the error screen will return
the display to that immediately before the error occurred, but only if the cause
of the error is removed. If this does not happen, press two of the four corners
of the touch panel to display the System Menu.
Mode Selection Keys, Mode Lock Key
The display element on the Programming Console screen shown below com-
prises the mode selection keys, which change the operation mode of the PLC,
and the mode lock key, which prevents unintended mode changes.
Ver 4.12
Select Expansion Mode.
Select Programming Console.
The Programming Console screen is
displayed.
Press the Programming Console sheet
keys (touch switches) for the operation.
Press the Quit touch switch to exit the
screen.
An error is displayed if a wrong
communications protocol is selected
or a Programming Console is
connected to the peripheral port.
Mode selection keys
Mode lock key
Section 6-12
(*1)
