Using a Memory Unit
Reference:
1,2,3...
44
When data is written to the NT631/NT631C or Memory Unit, the data that has
been stored up until that point is lost.
Method of Execution
Use the following procedure to write screen data using manual transmission.

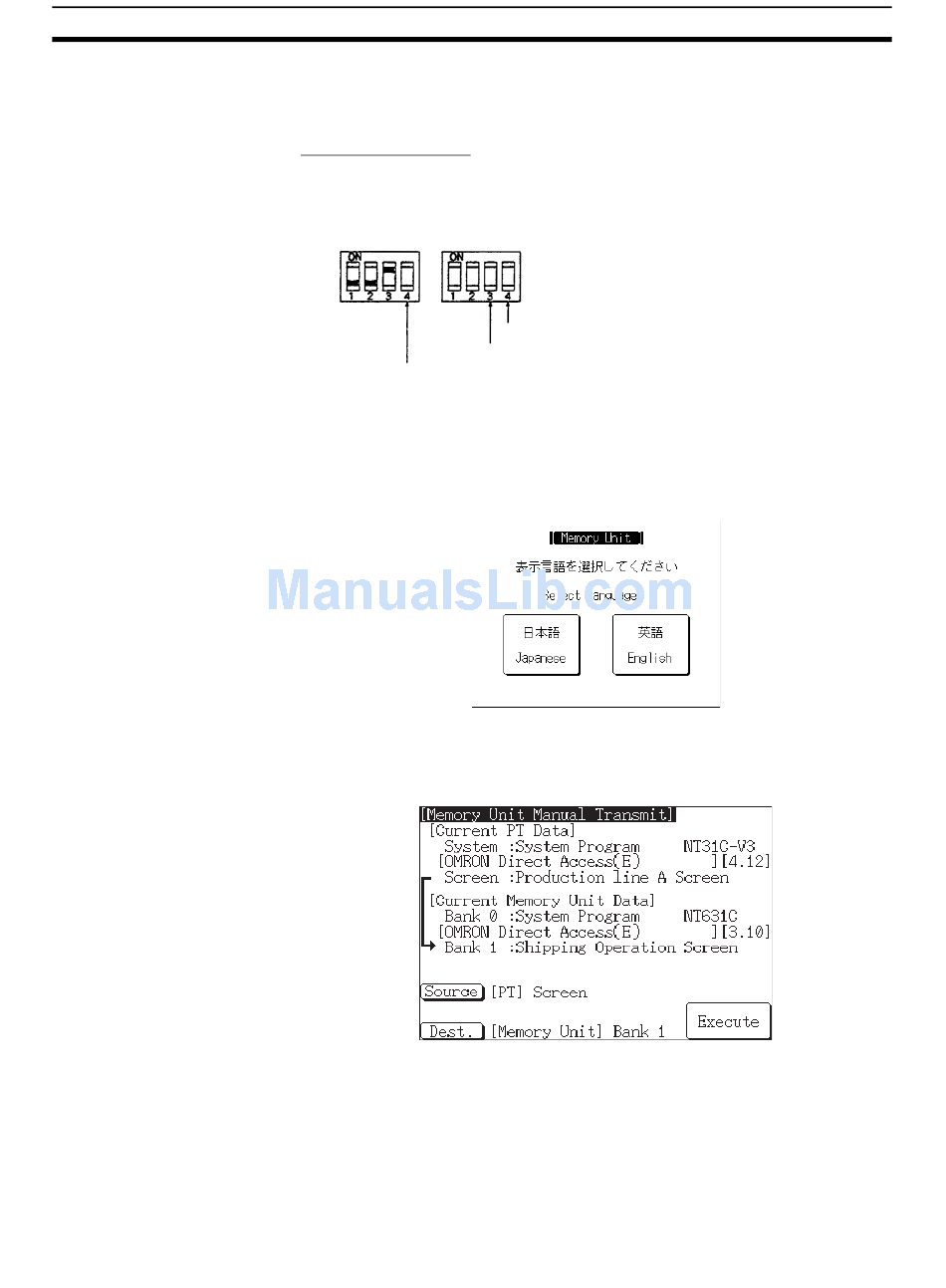

1. Check that the NT631/NT631C power is OFF, then set the DIP switches on
the Memory Unit as follows.
SW2
SW1
Setting of SW2-3 not relevant
Setting of SW1-4 not relevant
In order to avoid loss of data in the event of operating errors, it is advisable
to set SW2-1 and SW2-2 so as to disable writing to the PT from which the
data is to be read.
2. Switch the NT631/NT631C power ON.
Display language select screen appears.
3. Press the Japanese or English touch switches to select the display lan-
guage.
The following descriptions are for when English is selected.
The screen shown below is displayed.
Current PT Screen Data, System
The first line: Compatible PT type for the system program inside PT.
The second line: System program name and Version for the system pro-
gram inside PT.
(The second line may not be displayed in the kind of system program.)
Current PT Screen Data, Screen
The comment for the screen data in the NT631/NT631C is displayed here.
Setting of SW2-4 not relevant
