Functions of the NT631/NT631C
Lamps
Touch Switches
Mark
These are graphics whose display status changes in accordance with the
states of bits at the host. Squares, circles, sectors and polygons can be used
for lamps (normal (standard) lamps). In accordance with the status of the host
bit, they can be lit (displayed in reverse video) or flashed (repeated alternation
between normal and reverse video display states).
Lamps can also display different image/library data for the ON and OFF states
of the host bit (such lamps are called image/library lamps).
There are four standard lamp labels: fixed display character strings, ON/OFF
switching character strings, numeral displays, and character string displays.
When fixed display character strings or ON/OFF switching character strings
are used, several lines of labels can be displayed.

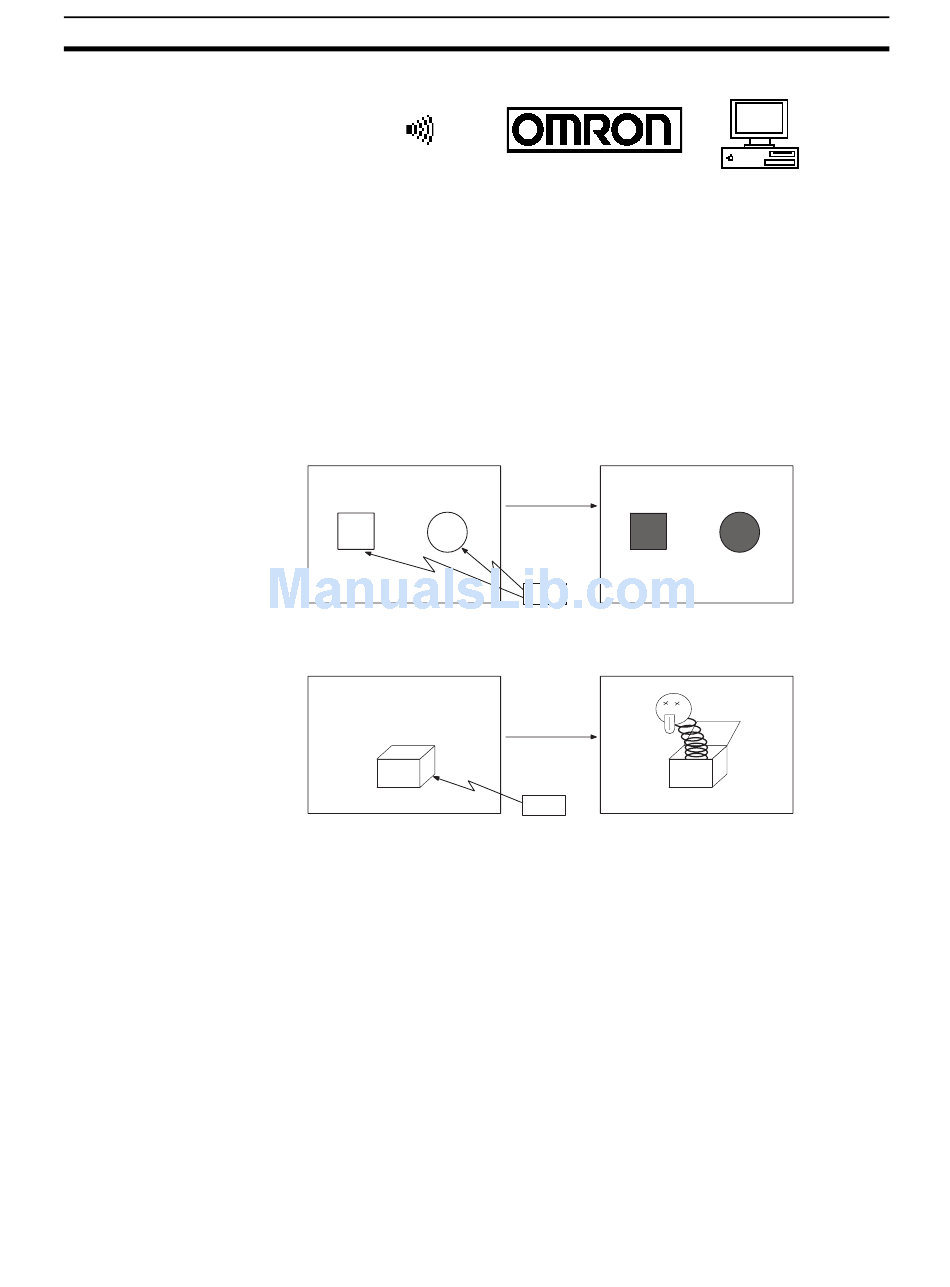

Normal (Standard) Lamps
ON
Unlit state
Image/Library Lamps
ON
Unlit state
These switches can be set at any location on the screen. Pressing a touch
switch on the screen where a touch switch has been set can have the follow-
ing effects:
Notification to a host bit (input notification function)
Changing the displayed screen (screen switching function)
Input of a numeric value or character string (input key function)
Copying of a numeric value or character string (copy key function)
Shifting to another numeric value or character string input field (cursor
moving key function)
Obtaining a hard copy of the screen (screen print function)
Opening / Closing a window
Moving a window
Touch switches can be made to light or flash in accordance with the status of
a host bit in the same way as lamps.
The following 8 types of display graphic can be used for touch switches:
Image data
ON
Host
Lit state
Host
Lit state
