Setting The Nt Link (1:1) Method - Omron Programmable Terminals NT631 Setup Manual

Setting Conditions for Communications with Host by Using Memory Switches
6-7-3

Setting the NT Link (1:1) Method

Set the communications conditions for the NT Link (1:1) method at serial port
A or serial port B by following the operation from the System Menu shown
below.
Ver 4.12
The setting option changes each time the touch switch is pressed.
To set other memory switches, select the relevant screen using the [ ] (next
screen) or [ ] (previous screen) touch switch, then make the setting.
• To confirm the settings and quit the memory switch setting screen, press
the Quit touch switch. The settings made last will be set and the NT631/
NT631C will return to the MAINTENANCE MODE MENU screen.
• To quit the memory switch setting screen without confirming the settings,
press the Abort touch switch. The NT631/NT631C will return to the MAIN-
TENANCE MODE MENU screen with the previous settings still in effect.

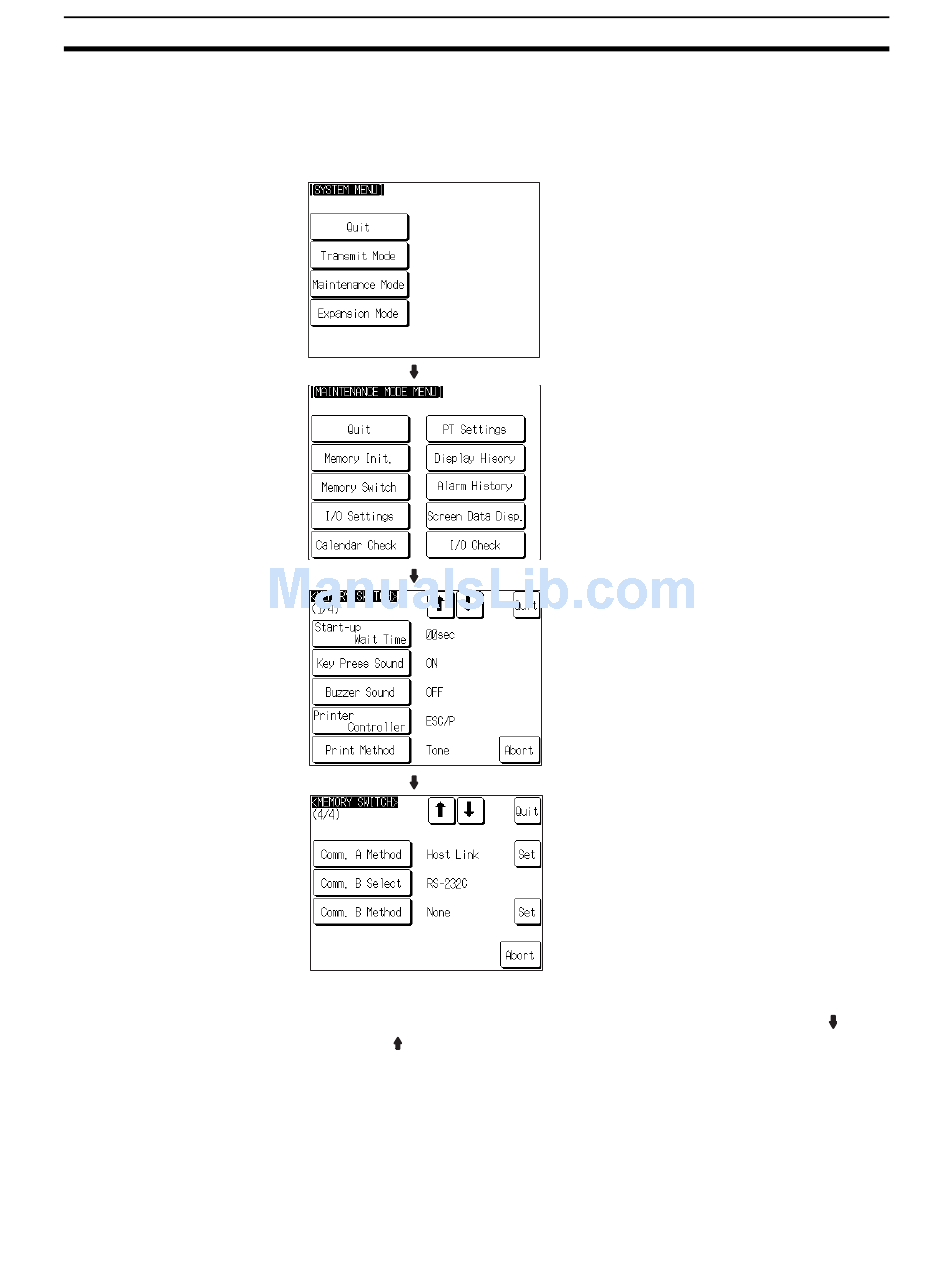

Select Maintenance Mode.
Select Memory Switch.
Display the fourth memory switch
screen by pressing the [↓] (next screen)
or [↑] (previous screen) touch switch.
Press the touch switch corresponding to the
port at which the NT Link (1:1) method is to
be set (Comm. A Method or Comm. B
Method) to display the setting option NT
Link (1:1).
