Version Display

6-13-3 Method of Use

Reference:

6-14 Version Display

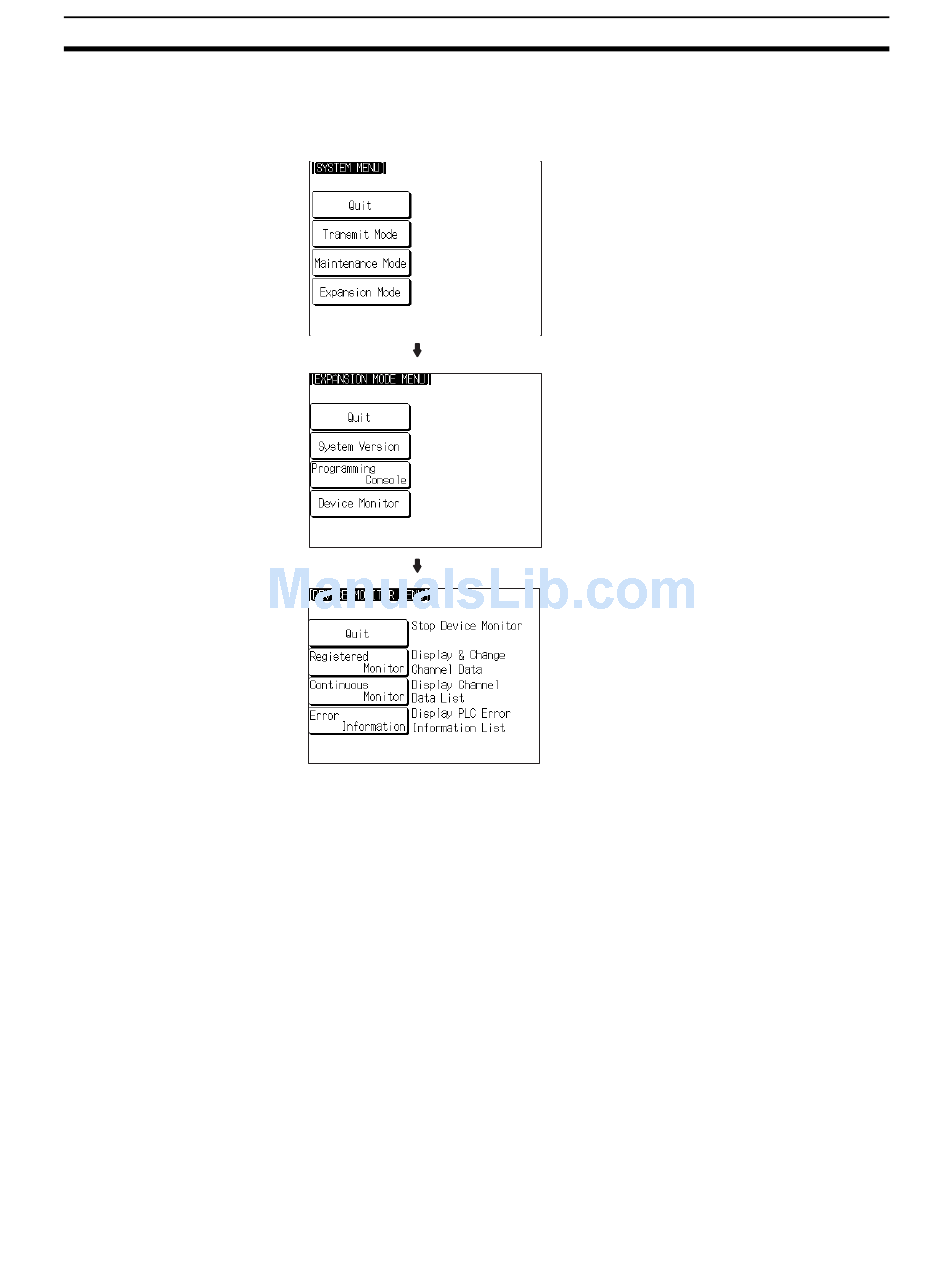

The Device Monitor screen is displayed by operating the system menu as
described below.
If an error screen is displayed, the System Menu can be displayed from the
error screen by pressing two of the four corners of the touch panel
simultaneously. Pressing the OK touch switch on the error screen will return
the display to that immediately before the error occurred, but only if the cause
of the error is removed. If this does not happen, press two of the four corners
of the touch panel to display the System Menu.
For more details on operations of the Device Monitor function, refer to 2-16
Device Monitor Function in the Reference Manual.
Use the Version Display function to check the version of the NT631/NT631C's
system program. The Version Display screen shows the model, creation date,
and version of the system program installed in the NT631/NT631C.
Ver 4.12
Select Expansion Mode.
Select Device Monitor.
An error message will be displayed if
the wrong communications protocol is
selected.
The Device Monitor screen is displayed.
Section 6-14
