System Maintenance
Display Method

6-11-4 Displaying and Printing the Display History Record

194

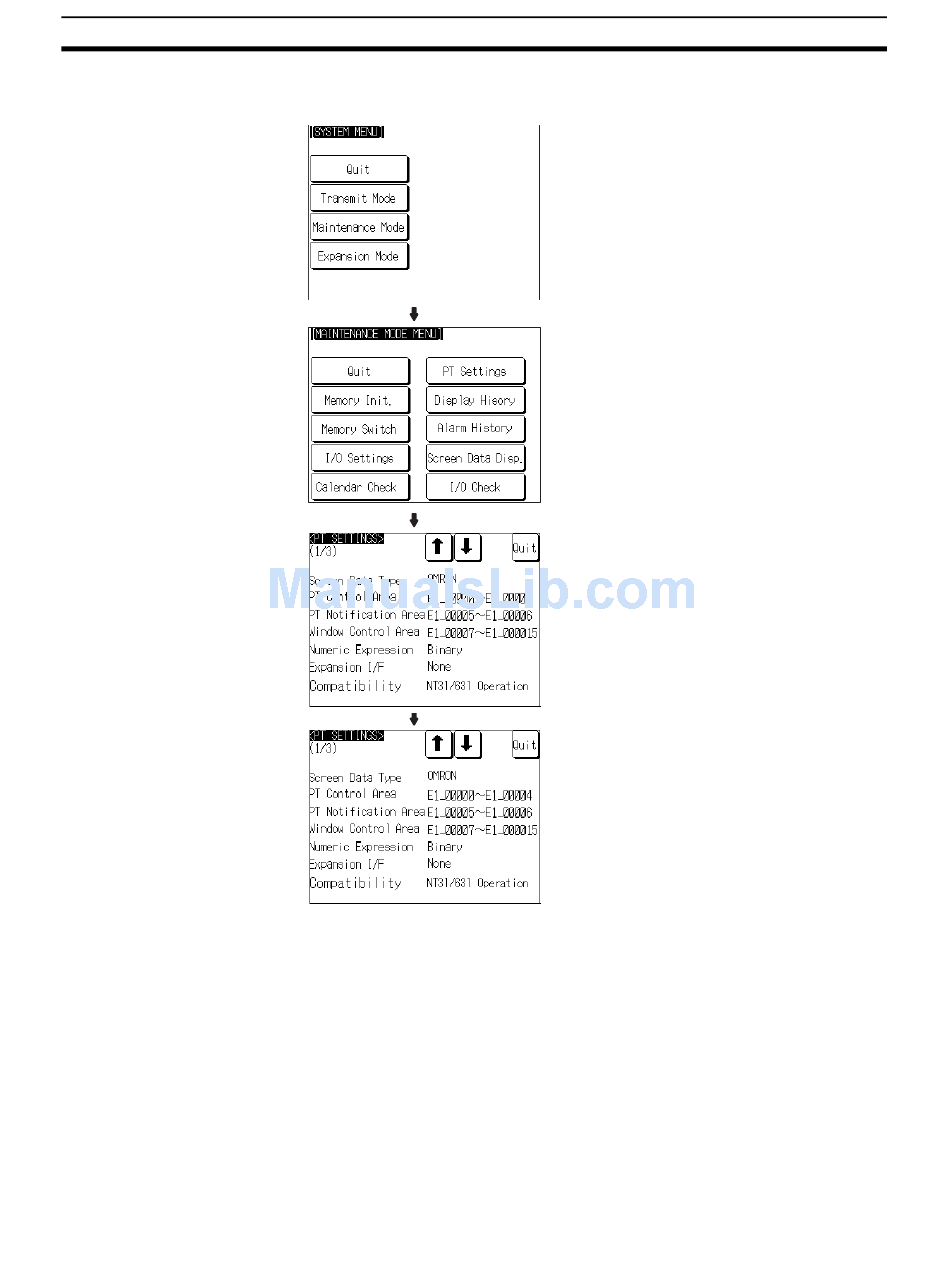

Display the PT setting statuses by following the menu operation from the Sys-
tem Menu shown below.
Ver 4.12
The display history record function is a function that records the order of dis-
play of each screen during operation, and the number of times each screen is
displayed. Only the screens for which the display history screen attribute has
been set in advance are processed by this function.
The record data can be displayed, and printed out at a printer connected to
the NT631/NT631C by operation from the System Menu.
This section explains how to display and print out the display history record
data recorded in the NT631/NT631C.
Note that there are two display methods sort by occurrence (display time
order) and sort by frequency (order of number of times displayed).
Select Maintenance Mode.
Select PT Settings.
Switch the screen as required by pressing
the [↓] (next screen) or [↑] (previous
screen) touch switch.
Press Quit.
The NT631/NT631C returns to the
MAINTENANCE MODE MENU screen.
Section 6-11
