Connecting to the Host's RS-232C Port

5-1

Connecting to the Host's RS-232C Port

80
The methods for connecting the RS-422A/485 port of the NT631/NT631C and
the RS-232C port of the host are described here. There are the following
methods.
The following discussion is focused on the connection method to OMRON
PLCs (By using the memory link method, a connection can be made to any
arbitrary RS-232 unit). When making a connection to a host other than
OMRON PLCs, refer to the PLC Connection Manual (V042-E1-@) or NT31/
631 Multi Vendor Connection Manual (V060-E1-@).

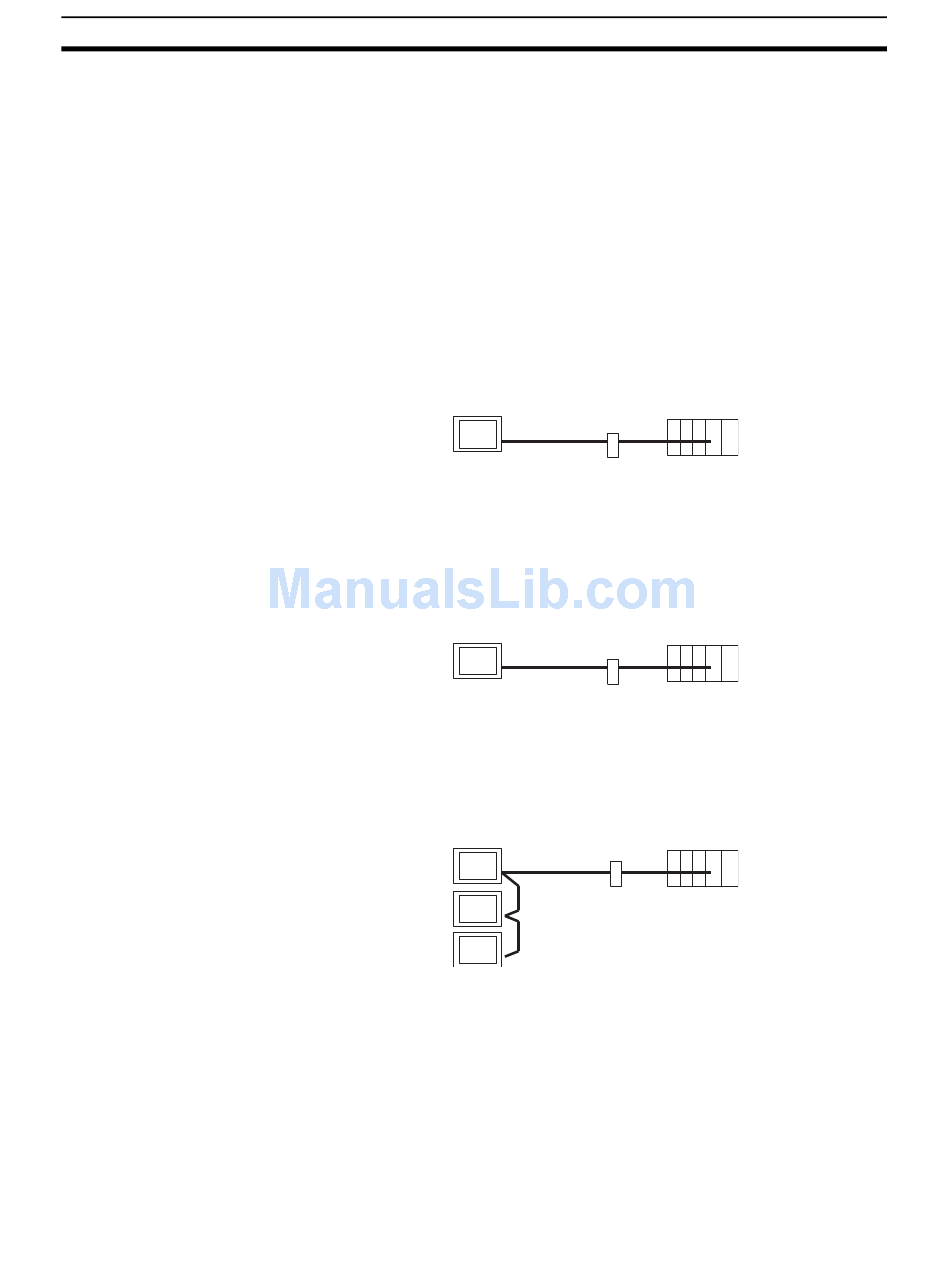

• Method in which the RS-422A port of the NT631/NT631C and the RS-
232C port of the host are connected in a 1:1 connection via an RS-232C/
RS-422A Adapter (page 82).
When this method is used, the cable length can be extended up to
500 m.
PT
• Method in which the RS-485 port of the NT631/NT631C and the RS-232C
port of the host are connected in a 1:1 connection via an RS-232C/RS-
422A Adapter (page 82).
When this method is used, the cable length can be extended up to
500 m. This connection method can be used only with the NT Link
(1:N) method of type RS-485.
PT
• Method in which the RS-422A ports of multiple NT631/NT631Cs and the
RS-232C port of the host are connected in a 1:N connection via an RS-
232C/RS-422A Adapter (page 86).
This connection method is used with the RS-422A NT Link (1:N) meth-
od.
PT
• Method in which the RS-485 ports of multiple NT631/NT631Cs and the
RS-232C port of the host are connected in a 1:N connection via an RS-
232C/RS-422A Adapter (page 86).
This connection method is used with the RS-485 NT Link (1:N) method
(standard or high-speed).
RS-232C/RS-422A
convertor unit
RS-422A cable RS-232C
(max. 500 m) cable
(max. 2 m)
RS-232C/RS-422A
convertor unit
RS-485 cable RS-232C
(max. 500 m) cable
(max. 2 m)
RS-232C/RS422A
convertor unit
RS-232C
RS-422A cable
cable
(max. total length
(max. 2 m)
500 m)
Section 5-1
Host
Host
Host
