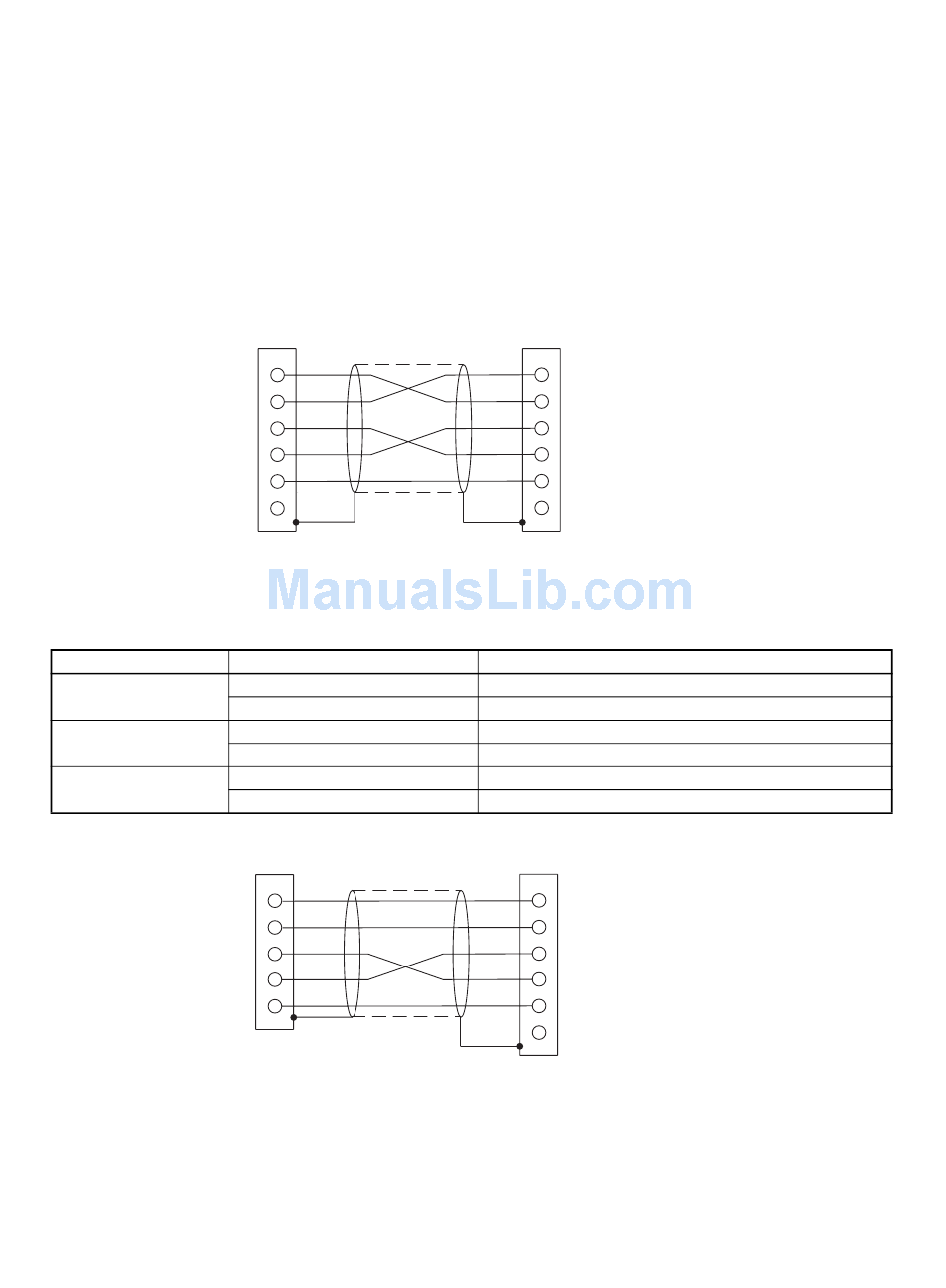

Making the Cable for Connecting a PLC

Refer to the following when making a cable for connecting the Support Tool.
Assembly of Connecting Cables
Wiring should be carried out in one of the following ways, depending on the type of RS-232C connector.

25-pin Connector

Personal computer
Note Connect a shielding wire to the connector hood of the connectors both at the personal computer end
and the PT end.
Use the following recommended products when making the connecting cable.
Name
Connector
Connector hood
Cable
9-pin Connector
RD
SD
RS
Personal computer
CS
SG
Connector hood
Note Connect a shielding wire to the connector hood of the connectors both at the personal computer end
and the PT end.
Appendix F
2
SD
3
RD
4
RS
5
CS
7
SG
1
Shielding wire
FG
Connector hood
Model
XM2D-2501
XM2A-0901
XM2S-2511
XM2S-0911
AWG28×5P IFVV-SB
CA-MA-VV-SB 5P×28AWG
2
3
7
8
5
Shielding wire
2
SD
3
RD
4
RS
Connector for peripheral devices on PT
5
CS
9
SG
Connector hood
Remarks
25-pin, made by OMRON, for personal computer side
9-pin, made by OMRON, for PT side
25-pin, made by OMRON, for personal computer side
9-pin, made by OMRON, for PT side
Multi-core shielded cable, made by Fujikura Ltd.
Multi-core shielded cable, made by Hitachi Cable, Ltd.
2
SD
3
RD
4
RS
Connector for peripheral devices on PT
5
CS
9
SG
Connector hood
271
