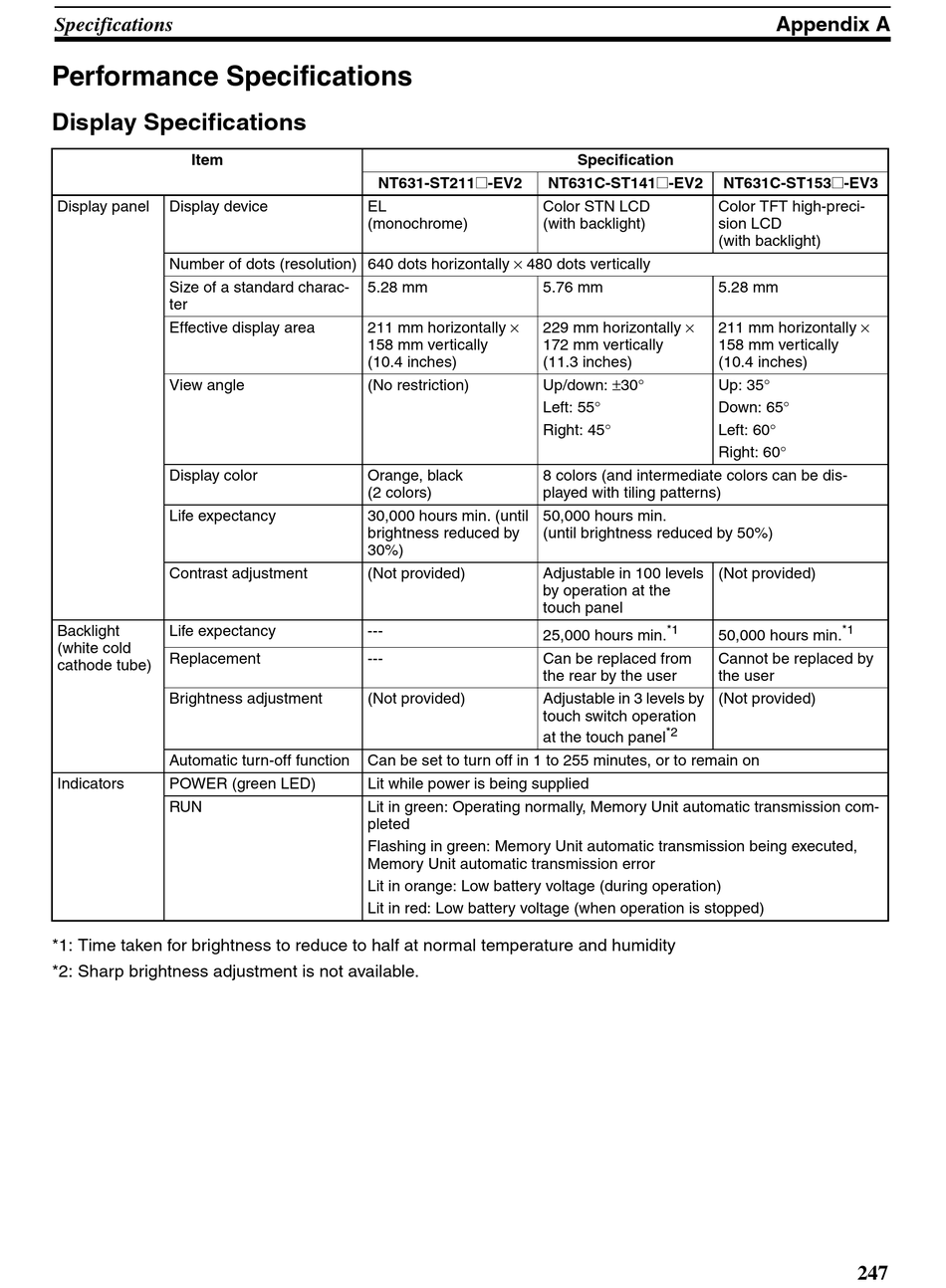

Specifications

Performance Specifications

Display Specifications
Item
Display panel Display device
Number of dots (resolution) 640 dots horizontally × 480 dots vertically
Size of a standard charac-
ter
Effective display area
View angle
Display color
Life expectancy
Contrast adjustment
Backlight Life expectancy
(white cold
Replacement
cathode tube)
Brightness adjustment
Automatic turn-off function
Indicators POWER (green LED)
RUN
*1: Time taken for brightness to reduce to half at normal temperature and humidity
*2: Sharp brightness adjustment is not available.
NT631-ST211@-EV2
EL Color STN LCD
(monochrome) (with backlight)
5.28 mm 5.76 mm
211 mm horizontally × 229 mm horizontally ×
158 mm vertically 172 mm vertically
(10.4 inches) (11.3 inches)
Up/down: ±30°
(No restriction)
Left: 55°
Right: 45°
Orange, black 8 colors (and intermediate colors can be dis-
(2 colors) played with tiling patterns)
30,000 hours min. (until 50,000 hours min.
brightness reduced by (until brightness reduced by 50%)
30%)
(Not provided) Adjustable in 100 levels
by operation at the
touch panel
---
25,000 hours min.
--- Can be replaced from
the rear by the user
(Not provided) Adjustable in 3 levels by
touch switch operation
at the touch panel
Can be set to turn off in 1 to 255 minutes, or to remain on
Lit while power is being supplied
Lit in green: Operating normally, Memory Unit automatic transmission com-
pleted
Flashing in green: Memory Unit automatic transmission being executed,
Memory Unit automatic transmission error
Lit in orange: Low battery voltage (during operation)
Lit in red: Low battery voltage (when operation is stopped)
Specification
NT631C-ST141@-EV2 NT631C-ST153@-EV3
Color TFT high-preci-
sion LCD
(with backlight)
5.28 mm
211 mm horizontally ×
158 mm vertically
(10.4 inches)
Up: 35°
Down: 65°
Left: 60°
Right: 60°
(Not provided)
*1
50,000 hours min.
Cannot be replaced by
the user
(Not provided)
*2
Appendix A
*1
247
