Before Operating

1-6

Before Operating

Set the host settings.
• For the host link, refer to
pages 48 and 94, and the
manuals for the Host Link
Unit and Programming
Devices.
• For the NT link (1:1), refer
to pages 61 and 106.
• For the NT link (1:N), refer
to pages 65 and 108.
• For the high-speed NT
link (1:N), refer to pages
70 and 112.
• For the Memory link, refer
to pages 73 and 114.
Connect to the
NT631/NT631C.
Create the host program.
Reference:
Device or Software
NT31/NT31C, NT631/
NT631C
System Installer
Support Tool

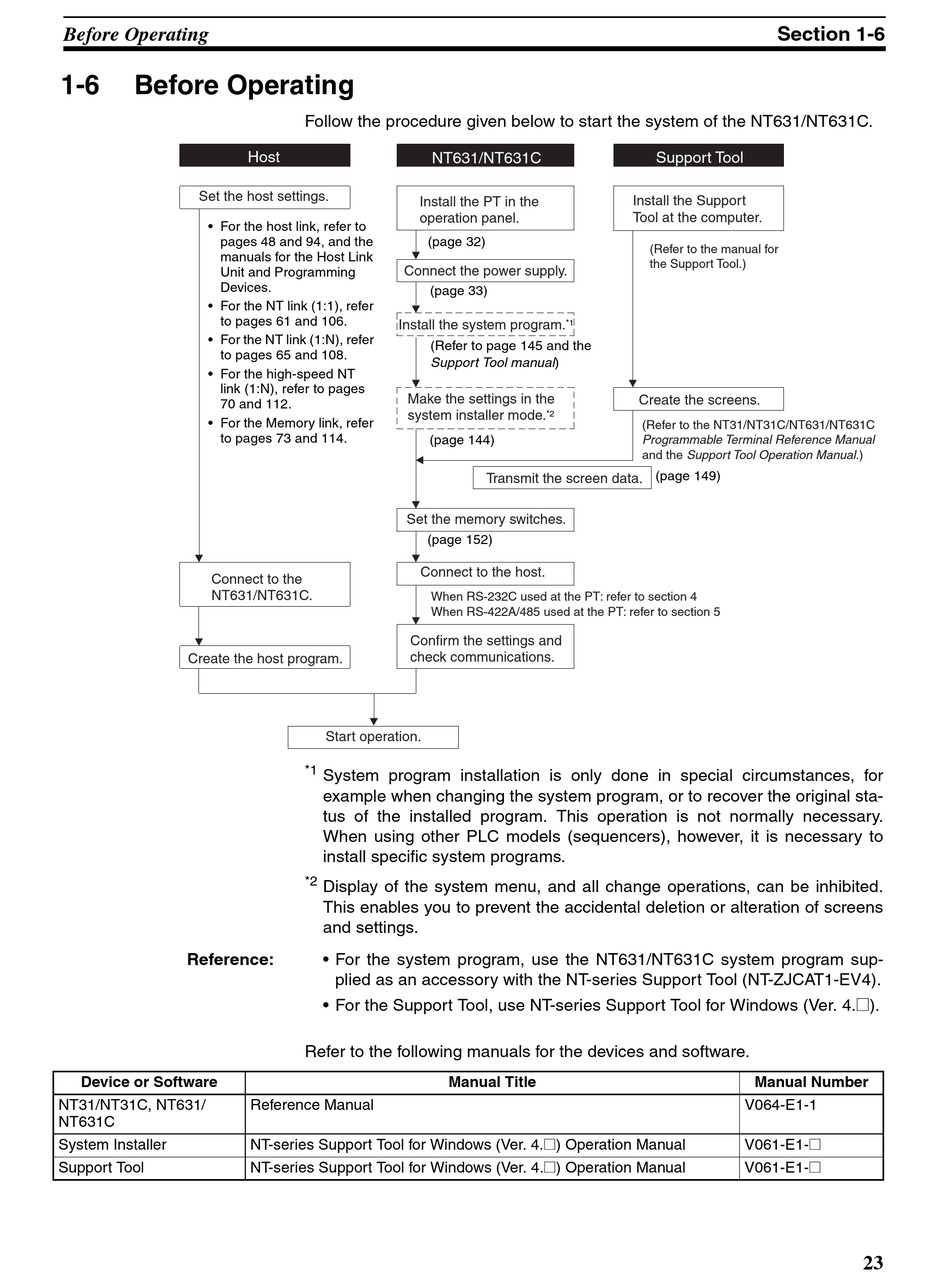

Follow the procedure given below to start the system of the NT631/NT631C.
Host
Install the PT in the
operation panel.
Connect the power supply.
Install the system program.
Make the settings in the
system installer mode.
Set the memory switches.
Connect to the host.
Confirm the settings and
check communications.
Start operation.
*1
System program installation is only done in special circumstances, for
example when changing the system program, or to recover the original sta-
tus of the installed program. This operation is not normally necessary.
When using other PLC models (sequencers), however, it is necessary to
install specific system programs.
*2
Display of the system menu, and all change operations, can be inhibited.
This enables you to prevent the accidental deletion or alteration of screens
and settings.
• For the system program, use the NT631/NT631C system program sup-
plied as an accessory with the NT-series Support Tool (NT-ZJCAT1-EV4).
• For the Support Tool, use NT-series Support Tool for Windows (Ver. 4.@).
Refer to the following manuals for the devices and software.
Reference Manual
NT-series Support Tool for Windows (Ver. 4.@) Operation Manual
NT-series Support Tool for Windows (Ver. 4.@) Operation Manual
NT631/NT631C
(page 32)
(page 33)
*1
(Refer to page 145 and the
Support Tool manual)
*2
(page 144)
Transmit the screen data.
(page 152)
When RS-232C used at the PT: refer to section 4
When RS-422A/485 used at the PT: refer to section 5
Manual Title
Section 1-6
Support Tool
Install the Support
Tool at the computer.
(Refer to the manual for
the Support Tool.)
Create the screens.
(Refer to the NT31/NT31C/NT631/NT631C
Programmable Terminal Reference Manual
and the Support Tool Operation Manual.)
(page 149)
Manual Number
V064-E1-1
V061-E1-@
V061-E1-@
