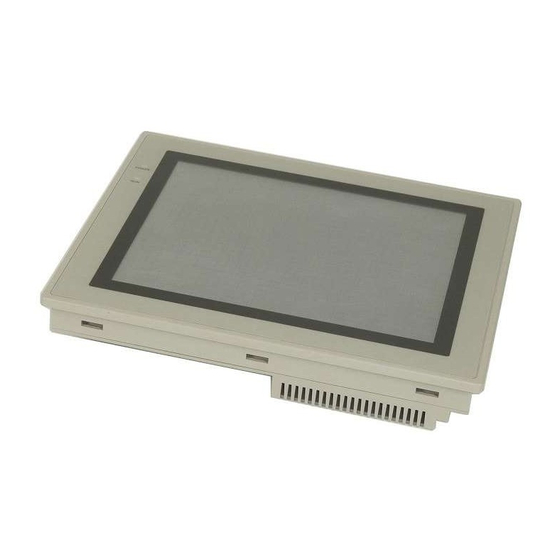

Page 1 NT31, NT31C, NT631, and NT631C Programmable Terminals Reference Manual Revised June 2001...
Page 2 WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS...
Page 3 Application Considerations SUITABILITY FOR USE OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's application or use of the products. At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the products.
Page 4 Performance data given in this manual is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON's test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.
Page 6 OMRON. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.
Page 8: Table Of Contents
Role and Operation of the PT ..........Functions of the NT31/NT31C and NT631/NT631C ......
Page 9 TABLE OF CONTENTS SECTION 5 Function Applications ......Examples of Actual Applications of Direct Access ......Examples of Actual Applications of Memory Link .
Page 10 About this Manual: This manual describes the basic functions and operation procedures of the NT-series NT31, NT31C, NT631, and NT631C Programmable Terminals, their operations when connected to a PC (Programmable Controller) or other host, and includes the sections described below.
Page 11 Programmable Terminal Functions and Operation S NT31/31C/631/631C PT Reference Manual (V064-E1-j, this manual) This manual is used for any of the following PTs: NT31, NT31C, NT631, and NT631C. It describes screen configurations, part functions, host control meth- ods, and other application information.
Page 12: General
Operations of the PT ..........Functions of the NT31/NT31C and NT631/NT631C ......
Page 13: Role And Operation Of The Pt
Role and Operation of the PT Role and Operation of the PT The NT31, NT31C, NT631, and NT631C are sophisticated display units (Pro- grammable Terminals) which automatically display information and can also be used for operations when necessary. The following gives a general description of the role and operation of the PT for those using a Programmable Terminal (PT) for the first time.
Page 14 Section Role and Operation of the PT 1-1-2 Operations of the PT Displays Screens The information to be displayed (screen data) can be created on a computer us- ing the Support Tool and stored in the PT. The screen data can be displayed on the PT in response to instructions from the host or touch switch operation.
Page 15: Functions Of The Nt31/Nt31C And Nt631/Nt631C
For details, refer to Appendix B Compatibility with Screen Data of Other PT Models (page 445) and the Support Tool manual.) • The panel cut-out dimensions for the NT31/NT31C are the same as the dimen- sions for the NT30/NT30C and the panel cut-out dimensions for the NT631/NT631C are the same as the dimensions for the NT625C.
Page 16 STN color LCD (with white backlight) (with white backlight) Note Beige and black are the front panel colors of each NT31/NT31C type. NT631/NT631C Two NT631 models are available: the NT631 has a monochrome (yellow EL) display and the NT631C has an 8-color display. The differences between the NT631 and NT631C are shown in the following table.
Page 17 Section Functions of the NT31/NT31C and NT631/NT631C 1-2-3 Additional Functions of the V2 Versions The V2 versions of NT31/NT31C and NT631/NT631C are supplemented and enhanced by the following functions. High-speed 1:N NT Link The V2 versions are compatible with the high-speed 1:N NT Link as well as the earlier standard 1:N NT Link.
Page 18 Section Functions of the NT31/NT31C and NT631/NT631C 1-2-4 Comparisons with Earlier Models Comparison between NT30/NT30C and NT31/NT31C Item NT30/NT30C NT31/NT31C Compatible Support Tool(s) NT-ZJCAT1-EV4 or NT-ZJCAT1-EV4 NT-ZA3AT-EV2 DIP switches On rear of unit None (software settings) Use of B7A unit...
Page 19 *3: The values are the same as the NT30/NT30C when the PT is in NT30/620 compatible mode. *4: The window control area can be used only in the Vj versions of the NT31/NT31C. *5: These data areas are accessible only when the PT is connected to the CS1 PC in a 1:N NT Link. (They are not accessible through host link communications.)
Page 20 Section Functions of the NT31/NT31C and NT631/NT631C Item NT620S/NT620C/NT625C NT631/NT631C Image data 224 max. 4,095 max. Library data 896 max. 12,288 max. Method for storing numeric values Fixed as BCD (binary coded decimal) Selectable from BCD (binary coded (numeral memory data and PT...
Page 21 Section Functions of the NT31/NT31C and NT631/NT631C 1-2-5 Principal Functions of NT31/NT31C and NT631/NT631C The following are the principal functions of the NT31/NT31C and NT631/NT631C. Functions relating to data display Character display Characters of various sizes can be displayed. Characters can be flashed and displayed in reverse video.
Page 22 PVs of words, or reading the error log. System program install function The system program of the NT31/NT31C or NT631/NT631C can be changed by using the system installer supplied with the Support Tool (NT- ZJCAT-EVj). It can also be installed by using a memory unit (NT-MF261).
Page 23 The NT31/NT31C and NT631/NT631C can display various kinds of elements such as characters, numeric values, graphs, lamps, and touch switches, on a screen. The screen data displayed by the NT31/NT31C and NT631/NT631C are created by using the Support Tool at a personal computer.
Page 24 Section Functions of the NT31/NT31C and NT631/NT631C Library data contain combinations of fixed display graphics registered as a single graphic. They are registered in advance and as many as required can be displayed at any position on the screen. Since it is generated by combining graphics, library data has a small data size.
Page 25 Section Functions of the NT31/NT31C and NT631/NT631C Touch switches can be made to light or flash in accordance with the status of a host bit in the same way as lamps. The following 8 types of display graphic can be used for touch switches: Stan-...
Page 26 Section Functions of the NT31/NT31C and NT631/NT631C String Inputs Character strings can be input at the PT by using touch switches, bar code read- ers, etc. The input character strings can also be stored in a character string memory table and notified to the host.
Page 27 ON are recorded and displayed together with the message (charac- ter string) set for the bit memory table. The NT31/NT31C and NT631/NT631C allow selection of the display order for the newest record first or oldest record first by memory switch setting.
Page 28 Section Functions of the NT31/NT31C and NT631/NT631C • Alarm history Message (character string table No. 13) set for bit memory table No. 24 Recorded data Character string table No. 11 Bit memory table No. 24 No. 22 Character string table No. 13...
Page 29: System Configuration
Section System Configuration System Configuration This section shows the configuration of a system that uses an NT31/NT31C and NT631/NT631C. For details on product models, refer to the Setup Manual . 1-3-1 Peripheral Devices That Can Be Connected The following peripheral devices can be connected to the NT31/NT31C and NT631/NT631C.
Page 30 Replacement battery C500-BAT08 1-3-2 Connecting to the Host NT31/NT31C The NT31/NT31C has the following two communication ports. • Serial port A: D-SUB 9-pin connector For RS-232C use only (The Support Tool and bar code readers can be con- nected here.) •...
Page 31 Section System Configuration The host can be connected at either of these two ports. The connection methods for each communication method at the PT and host sides are indicated below. Make the settings in accordance with the communica- tion method that can be used with the PC to be connected and the conditions at the operation site.
Page 32: Communications With The Host
Section Communications with the Host Communications with the Host The NT31/NT31C or NT631/NT631C is connected to the host by one of the fol- lowing four communication methods. The following communications can be used to connect an OMRON PC: • Host link •...
Page 33 Besides the 1:1 NT Link method, in which one PC is connected to one PT, the NT31/NT31C and NT631/NT631C can also use the 1:N connection NT Link method, which allows a maximum of eight PTs to be connected to one PC port.
Page 34 • If the PC being used supports the Programming Console function, the NT31/NT31C or NT631/NT631C can be used as a Programming Console. • If the PC being used supports the Device Monitor function, the NT31/NT31C or NT631/NT631C can be used to change the PC’s operating mode and read/ change data in the PC’s memory areas.
Page 35 Section Communications with the Host • Changes in memory tables after copying between memory tables, etc. • Numerical results of calculations from the mathematical function Functions of Display Elements Lamps (page 103) Allocation destination: Bit Lamp #1 (Bit 000100) Switch 1: ON (Bit 000100) Unlit Switch 2: OFF (Bit 000101) Lamp #2 (Bit 000101)
Page 36 Section Communications with the Host Character String Display (Character String Memory Tables) (page 138) Allocation destination: Word DM0100 (“a”, “b”) abcdef DM0101 (“c”, “d”) DM0102 (“e”, “f”) Character string memory table 1 Number of allocated words: 3 First word: DM0100 Allocate character string memory tables to any desired words in the PC.
Page 37 Section Communications with the Host Character String Input (Character String Memory Tables) (page 201) Allocation destination: Word Bit (interlock bits) DM 0150 (“A”, “B”) ABCDEF DM 0151 (“C”, “D”) DM 0152 (“E”, “F”) Character string input Character string memory table 100 Number of allocated words: 3 First word: DM 0150 Allocate character string tables to any desired words in the PC.
Page 38 Section Communications with the Host The PC bit allocated to bit memory table for which the history property has been set is continually monitored: when the bit comes ON (1), the time and the number of times, and the contents of the character string memory table registered for the bit memory table, are recorded in the alarm history record data.
Page 39 1-4-5 Connecting to other Companies’ PCs Installing a system program for multi-venders by using a specific system installer enables the NT31/NT31C or NT631/NT631C to be connected to the PCs of oth- er companies in direct connection. This system installer is supplied with the Sup- port Tool (NT-ZJCAT1-EV4).
Page 40: Communication By Using Memory Link
(With the NT31/NT31C and NT631/NT631C, the Support Tool must be used to convert the data to screen data for the memory link.)
Page 41 Section Communication by Using Memory Link • Actual PCs have many kinds of areas, where as PT memory is a single area with only one kind. When creating screen data by using the memory link meth- ods, it is always necessary to allocate display parts in the PT memory. For communication between the host and the PT by the memory link method, refer to Section 4 Using Memory Link , and for how to use screen and display elements, refer to Section 3 How to Use the PT .
Page 42: Before Operating
Section Before Operating Before Operating Follow the procedure given below to start the system of the NT31/NT31C or NT631/NT631C. Host Support Tool NT31/NT31C or NT631/NT631C Set the host settings. Install the Support Install the PT in the Tool at the computer.
Page 43 Section Before Operating Equipment or Software Manual Title Manual Number NT31/NT31C Setup Manual V062-E1-j NT631/NT631C Setup Manual V063-E1-j System Installer NT-series Support Tool for Windows95/98 (Version 4.1) V061-E1-j Support Tool NT-series Support Tool for Windows95/98 (Version 4.1) V061-E1-j SYSMAC CPM1 Operation Manual...
Page 44: Functions
SECTION 2 PT Functions This section describes the functions of the PT. PT Screens ............. . 2-1-1 Screen Composition .
Page 45 Section 2-15 Window Function ............2-15-1 What Are Windows? .
Page 46: Screens
PT Screens PT Screens This section describes the PT screens, which are the basis of PT functions. 2-1-1 Screen Composition The size of the NT31/NT31C and NT631/NT631C screens are as follows: NT31/NT31C: 320 dots wide by 240 dots high NT631/NT631C:...
Page 47 Section PT Screens Normal (Standard) screens can be registered under any screen numbers in the range 1 to 3999. Overlapping Screens The PT allows up to 8 screens to be displayed overlapped as one screen. A group of overlapped screens is called an overlapping screen. To allow distinction, the screen that results when the multiple component screens are overlapped is called the parent screen.
Page 48 Section PT Screens tRestrictions On Overlapping Screens Note the following points, when creating an overlapping screen. • Numeral input and character string input input fields — which allow the input of numeric values and character strings — can each only be set on one of the child screens.
Page 49 Section PT Screens System Screens Screens with predetermined functions are called system screens. The types of system screens are indicated in the table below. Screen Name Function No-display screen If screen number 0 is designated as the display screen, the screen of the PT is made blank.
Page 50 The screen attributes that can be set are listed below. It is possible to set more than one attribute for the same screen at one time. • Backlight (Light/Flash) • Buzzer (None/Continuous/Long/Short) • Background (NT31C and NT631C only) • Screen comment • History (record/don’t record) • History title •...
Page 51 • Registering the buzzer stop touch switch on the screen (page 283) Background Color (NT31C and NT631C Only) With the NT31C and NT631C, the background color of the entire screen can be set for each screen. The following 8 background colors can be set.
Page 52 (The NT631 has an EL display so lit elements will actually appear orange, but the color is still referred to as white.) The color PTs (NT31C and NT631C) can display the following eight colors. Black, blue, red, magenta, green, cyan, yellow, white When an element’s color is the same as the background color (making it invis-...
Page 53 Section PT Screens Color Correspondence Between Color and Monochrome PTs The only colors that a monochrome PT can display are white and black. The screen data for a color PT can be displayed on a monochrome PT without alteration and in this case the color correspondences are as follows. Color on a color PT Color on an NT31 Color on an NT631...
Page 54 Section PT Screens • Display color of alarm list/history Screen Background The background color of the entire screen can be designated with the Back- Color ground screen attribute. Screen attributes are properties set for each screen with the Support Tool. Text Display Color The color of characters (character color) and that of their rectangular frames (background color) can be specified.
Page 55 Section PT Screens For Details, Element Description Refer to Fixed Arcs Possible display modes: standard/flash/inverse/inverse flash. Other Page 81 display display modes are not available. Circles Possible display modes: standard/flash/inverse/inverse flash. Other Page 81 display modes are not available. Rectangles Possible display modes: standard/flash/inverse/inverse flash.
Page 56 Section PT Screens For Details, Element Description Refer to Alarms Alarm list This element monitors the status of host bits designated in advance, Page 173 and displays the message corresponding to the bit that comes ON. By pressing the displayed message, the corresponding image/library data can be displayed and the screen can be switched.
Page 57: Areas For Control/Notification
Section Areas for Control/Notification Areas for Control/Notification The following areas are provided for PT control and PT status notification be- tween the PT and the host. • PT status control area This area is used to designate the screen to be displayed at the PT, to copy data contents between memory tables in the PT, and to control the status of the backlight and other statuses.
Page 58 Section Areas for Control/Notification The PT status control area (host ↔ PT) can be allocated in the following host Allocated Words of the PT Status Control Area (PC) areas. Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation None IR Area CIO Area CIO Area...
Page 59 Section Areas for Control/Notification by the setting for numeral storage type in the PT configuration settings made with the Support Tool. PT status control area ← Screen number Screen switch setting Copy memory Designated screen table setting PT status control setting Reserved for system use Screen Switch Setting In The PT Status Control Area 15 14 13 12 11 10 9...
Page 60 Section Areas for Control/Notification When Data is Written From The PT When the screen display has been switched by operation at the PT, the new screen number is written as a 4-digit BCD or hexadecimal value into the screen switch setting word by the PT. At the same time, the ON status is also notified to the screen switch strobe flag of the PT status word of the PT status notify area by the PT (after notification, the OFF status is re-established) (page 295).
Page 61 Section Areas for Control/Notification S The screen number is notified only when the screen is switched by operation Reference: at the PT. S When an overlapping screen is displayed, the screen number of the parent screen is notified. S When the PT is set to NT30/620 compatible mode, the screen switch setting notification from the PT occurs in the first word (word m) of the PT status notify area.
Page 62 Section Areas for Control/Notification Pt Status Control Bits The PT status control bits have the functions indicated below. n+3ch Controlled Item 1 (ON) 0 (OFF) Screen display Performed Not performed Canceled Processing priority registration (for NT link (1:N)) Registered Stopped Continuous buzzer Sounded Stopped...
Page 63 Section Areas for Control/Notification Processing Priority Registration (For NT Link 1:N) (Bit 14) One of the PTs connected by the NT link (1:N) method can be registered for priority processing. The PT for which bit 14 is set to ON (1) is given priority over the other PTs, and has more rapid response time for screen display, touch switch operations, etc.
Page 64 Section Areas for Control/Notification If more than one of these bits is ON at the same time, the buzzer sounds in accor- dance with the following order of priority. 1. Continuous buzzer 2. Short intermittent buzzer 3. Long intermittent buzzer When stopping the buzzer by PT status control bit operation, set all three of the bits above to 0 (OFF).
Page 65 Section Areas for Control/Notification Bit 6 Function 0 (OFF) Windows can be opened by operation at the PT. 1 (ON) Windows cannot be opened by operation at the PT (windows that are already open can be closed by operation at the PT). Also, when a keyboard screen attribute is designated for a screen, the window will not open when the screen is switched by operation at the PT.
Page 66 Section Areas for Control/Notification Operation 1, 2, 3... 1. Set the numbers of the copy source and copy destination memory tables for copy source memory table No. (word n + 1) and copy destination memory table No. (word n + 2) of the PT status control area. 2.
Page 67 Section Areas for Control/Notification Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation None IR Area CIO Area CIO Area HR Area HR Area AR Area Auxiliary Area AR Area LR Area LR Area TC Area, Timer Area, TC Area, Timer PVs Timer PVs Timer PVs...
Page 68 Section Areas for Control/Notification strobe flag is turned ON. (After turning ON, the flag will automatically turn OFF.) (Refer to page 57.) Numeral memory table 1 12345678 12345678 PT status notify area Table number Content update memory table Numeral setting PT status strobe flag Allocated word (numeral memory table 1)
Page 69 9021, 9022, or 9023 is displayed) Backlight Status (Bit 6) Indicates the status of the EL screen of an NT 631 or the backlight of an NT31/NT31C or NT631C as follows: • 1 (ON): EL screen off or backlight off •...
Page 70 Section Areas for Control/Notification It is possible to know the screen number of the window which is currently open or the display position (bottom-left coordinate) by checking the window control area. Strobes The screen switching, numeral setting, and character string setting strobes are automatically returned to 0 (OFF) after notification to the host.
Page 71 The X coordinate which can be specified is as follows. Hexadecimal Contents X coordinate of bottom-left corner (multiple of 20) 0000X0300 0000X012C NT31/NT31C: 0X300 NT631/NT631C: 0X620 The Y coordinate which can be specified is as follows. Hexadecimal Contents Y coordinate of bottom-left corner (multiple of 20 - 1)
Page 72 • When the window will extend out of the screen with the specified value (for ex- ample, when an NT31/NT31C is being used and an X coordinate of 300 and a Y coordinate of 199 are specified for a window screen of 100 100 dots).
Page 73 Section Areas for Control/Notification X coordi- Y coordi- Window type Screen No. Status nate nate Global window Retains the existing value Remain opened Local window Cleared to 0 Closed (*) * If the local window open attribute is set for the screen switched to, the local window opens.
Page 74 Section Areas for Control/Notification Screen No.. X Coordinate and Y Coordinate of The Window Control Area Word Screen No. (4-digit BCD or hexadecimal) X coordinate (4-digit BCD or hexadecimal) Y coordinate (4-digit BCD or hexadecimal) Grobal Local Local Window Window1 Window2 When The Data is Written From The PT When the display status of the window is changed by the operation at PT, new...
Page 75: Memory Tables
Section Memory Tables Memory Tables The PT has the following three types of memory area that can be written to freely from the host. • Numeral memory tables for numeric value data Page 64 • Character string memory tables for text data Page 71 •...
Page 76 Section Memory Tables Possible Settings Property Property Meaning @ For BCD format: –9999999 to 99999999 @ For binary format: –2147483648 (80000000H) to 2147483647 (7FFFFFFH) Value The initial values that can be set as the contents of memory tables by the Support Tool The format is determined by the system memory of the PT and the Nu- meral Storage Type setting.
Page 77 Section Memory Tables Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation TC Area, Counter Area, TC Area, Counter PVs Counter PVs Counter PVs TC Area, Counter Completion Flags WR Area Task Flags DM Area DM Area DM Area EM Area EM Area, EM Area,...
Page 78 Section Memory Tables instead to denote negative values (a negative sign can be used in the setting for Value. so negative values can be input in the normal manner for this set- ting). If a value with a letter from A to E inclusive as its most significant digit, or a value with a letter from A to F inclusive at any position other than the most significant digit is stored in a host word, it is invalidated as illegal data and the existing value is retained.
Page 79 Section Memory Tables ues that are set with the Support Tool and written to the host when the Resume function is not being used.) Support Tool values Stored value Storage Number Contents of Stored value Stored Value before op- Type host words after start of in decimal...
Page 80 Section Memory Tables Storage Number Conversion and storage Type of words The least significant 4 digits of the 2-word signed binary Binary data are written as is. Binary The 2-word signed binary data is written as is. 4. After operation has started, the host words are read and the data is regularly mirrored in the numeral memory tables.
Page 81 Section Memory Tables Reference: When the PT starts operation, the contents of numeral memory tables is as fol- lows depending on whether or not the numeral memory table is allocated to the host, on the Initial setting for the numeral memory table, and on whether or not the resume function is used.
Page 82 Section Memory Tables • When an analogue meter is used, the contents of a numeral memory table can be displayed in real time in the form of quarter, semi-circle or circle-shaped graph. • When a broken line graph is used, the contents of multiple, consecutive nu- meral memory tables can be displayed in real time in the form of a broken line graph (page 154).
Page 83 Section Memory Tables 0 to 40 characters (= 0 to 40 bytes, which is 0 to 20 words) • Character string memory table numbers 500 and higher always remain at the initial value set with the Support Tool. These values cannot be changed later and can only be read.
Page 84 Section Memory Tables Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation TC Area, Timer Area, TC Area, Timer PVs Timer PVs Timer PVs TC Area, Timer Completion Flags TC Area, Counter Area, TC Area, Counter PVs Counter PVs Counter PVs TC Area, Counter Completion Flags...
Page 85 Section Memory Tables Initialize The initialize setting determines whether the contents of character string memory tables are written to the allocated word(s) in the host when the power to the PT is turned ON, when the PT is reset, or the PT is switched to RUN mode from the System Menu.
Page 86 Section Memory Tables Processing Functions Character string memory tables have no data processing function. Relationship with Other Elements • When character string display is used, the contents of character string memory tables can be displayed in real time as character strings (page 138). •...
Page 87 Section Memory Tables For details, refer to 2-11 Alarm List, Alarm History (page 173 ). Character string memory table No. 50 No. 13 Character string Image/library data 0F51 memory table No. 32 ← 1 (ON) Character string memory table No. 32 Image/library data 102A No.
Page 88 Section Memory Tables 3. In case multiple messages are displayed, pressing another message will cause the newly pressed one to be displayed in reverse video, and the cor- responding image/library data will be displayed. Image/library data corresponding to the second alarm message It is also possible to set PROCESS 3 STOPPED correspondence between bit memory...
Page 89 Section Memory Tables Allocated Bit Bit memory tables can be allocated to the following host (PC) areas. Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation None IR Area CIO Area CIO Area HR Area HR Area AR Area Auxiliary Area AR Area LR Area...
Page 90 Section Memory Tables display switches to the screen set for the bit memory table (this screen remains displayed even if the bit returns to 0 (OFF)). S The screen display can also be switched by PT status control area operation Reference: (page 289), touch switch operation (page 290), and by using the alarm list/his- tory function (page 292).
Page 91 Section Memory Tables Reference: The alarm history can also be checked by pressing the Alarm History touch switch on the MAINTENANCE MODE MENU screen of the PT. For details, refer to section 6 of the Setup Manual . Input Functions When a bit memory table is allocated to a bit at the host, the contents of the bit are read and processing in accordance with the bit status is executed.
Page 92: Fixed Displays
Section Fixed Displays Fixed Displays Fixed displays are graphics and text that are always displayed on the screen and do not change. This section gives details of fixed displays. There are the following types of fixed display. • Text Page 88 •...
Page 93 Color Foreground Display color of the arc (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White The line style is fixed as solid line and thickness is fixed as one dot. At the Support Tool, the center point, start point and end point are specified, as shown in the figure below.
Page 94 Color Foreground Display color of the circle (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White The line style is fixed as solid line and thickness is fixed as one dot. At the Support Tool, the center point and radius are specified as shown be- low.
Page 95 Color Foreground Display color of the rectangle (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White The line style is fixed as solid line and thickness is fixed as one dot. At the Support Tool, specify the start point and end point as shown in the figure below (it is not necessary to draw the rectangle from top left to bottom right).
Page 96 Color Foreground Display color of the polygon (colors other than black and white featured with NT31C, NT631C only) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White The line style is fixed as solid line and thickness is fixed as one dot. At the Support Tool, using a triangle as the base, create the polygon by changing the number and position of the vertices.
Page 97 Color Foreground Display color of the polygon (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White The line thickness is fixed as one dot. At the Support Tool, using a straight line as the base, create the polyline by changing the number and position of the vertices.
Page 98 Color Foreground Display color of the sector (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White The line style is fixed as solid line and thickness is fixed as one dot. At the Support Tool, specify the center point, start point, and end point, as shown in the figure below.
Page 99 Section Fixed Displays Attribute Drawing Result Inverse The entire sector is displayed in the foreground color. Flash Repeated alternation between standard display and no display. ⇔ No display Inverse Flash Repeated alternation between inverse and standard display. ⇔ Input Functions There are no input functions for circles, arcs, sectors, polylines, polygons, or rectangles.
Page 100 Section Fixed Displays Alphanumerics and symbols can be displayed. NT31C Reference: When the PT is in NT30/620 compatible mode, images can be included within character strings of fixed displays. Refer to Appendix C for details on the NT30/620 compatible mode (page 441).
Page 101 Display color of the text (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/ Transparent Background Background color of the text (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/ Transparent Position NT31C...
Page 102 Section Fixed Displays Reference: The 32 dot high-definition font is not displayed for the following models (16×16 dot font is used.) • NT31-ST121j-E • NT31C-ST141j-E • NT631-ST211j-E • NT631C-ST141j-E • NT631C-ST151j-E Smoothing Characters enlarged to a scale of 2 2 or larger can be displayed with the outline automatically smoothed.
Page 103 Section Fixed Displays 2-4-3 Tiling Function Outline The area enclosed by a line of the specified color is tiled with the specified tiling pattern. Restrictions • Up to 65535 of the following graphics can be registered on one screen. For an overlapping screen comprising 8 child screens, the maximum is 524280 (65535 8 screens).
Page 104 Display color of the tiling pattern (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Background Background color of the tiling pattern (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/ Transparent Border...
Page 105 Section Fixed Displays created. However, the way in which they overlap can be changed with the Sup- port Tool. • Color Palette Symbol is supplied with NT-series Support Tool for windows (ver. 4.1), For color palette symbol, combinations of foreground and background colors are registered by each tiling patter.
Page 106 NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/ Transparent Background Background color of the mark (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/ Transparent Position (top left corner of mark) Foreground color...
Page 107 Section Fixed Displays Even if a scale of 2 2 or larger is set for a mark, it will not be smoothed by the smoothing function. Display Attribute And Drawing Result Attribute Drawing Result Standard The mark is displayed with the specified foreground color and background color.
Page 108: Image And Library Data
Image and Library Data 2-5-1 Image Data Display Function Outline Image data are images composed of dots. They can be set to any size within the following range. NT31/NT31C NT631/NT631C Remarks Width 8 to 320 dots 8 to 640 dots...
Page 109 • Altogether, up to 256 image and library data elements (directly and indirectly specified) can be displayed on one screen. For an overlapping screen com- prising 8 child screens, the maximum is 1024. • The size of image data can be specified as follows. NT31/NT31C NT631/NT631C Remarks Width...
Page 110 (Image codes are hexadecimal, so set the numeral memory table’s Storage Type to binary. Also, be sure to write the image code number in hexadecimal.) Color (for NT31C and NT631C only valid when 2 Colors is set for Mode. Foreground Display color of the image data...
Page 111 Section Image and Library Data Relationship with Other Elements • Difference between image data and library data Image data can take any form for it is composed of dots, but library data can only be created by assembling fixed display text and graphics. Since only drawing information for characters and graphics is registered for library data, library data takes up less memory area than image data, which requires all the dots to be displayed on the screen to be registered as data.
Page 112 Section Image and Library Data Procedure for Creating and Using Library Data The procedure for creating library data and registering them on a screen is de- scribed briefly here. For details, refer to the operation manual of the Support Tool. Call the library editor.
Page 113 Section Image and Library Data Display Functions The properties of library data and their relationship with the method of display are indicated below. Properties General Position Coordinates of the top left corner of the library data Size Size of the library data Fixed code (The library code itself is specified directly.) Code Image/library code of the library data...
Page 114: Lamps
Section Lamps Lamps Function Outline Lamps are graphics that change in accordance with the status of a set bit. Lamps are classified into the two major categories indicated below. Normal (Standard) Lamps Normal (standard) lamps change the display status (OFF/ON/flashing) of fixed display graphics.
Page 115 NT31C and NT631C only. Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Color of the lamp in the ON or flashing states (Colors other /Flashing than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Color of the lamp in the OFF state (Colors other than black and white are available with the NT31C and NT631C only.)
Page 116 Section Lamps Shape of Lamps Rectangle Polygon Position Description Position Description Frame color Frame color ON/OFF Size Size colors LAMP LAMP (Y direction) (Y direction) ON/OFF colors Size (X direction) Size (X direction) Circle Sector Position Description Position Description Frame color Size Size Frame color...
Page 117 Section Lamps The range of each memory area differs according to the PC. Refer to Appendix D PC Memory Maps on page 429. When a DM Area or EM Area address is specified, add a bit number (00 to 15) to the end of the word address.
Page 118 Max. number of guide characters* characters/line* lines NT31/NT31C NT631/NT631C 256 * The 4-character new line codes (<\n>) are included in the number of characters. The space between guide character lines (number of dots from the bottom of a line to the top of the next line) is set with the line spacing property. A negative line spacing can be specified, so that a later line will partially overlap the preceding line, but there must be at least 8 dots of space between the tops of the two lines.
Page 119 Color (valid only for image data whose color mode is 2 Colors) Foreground Foreground color of the image/library lamp in the OFF state (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Background Background color of the image/library lamp in the OFF state (Colors other than black and white are available with the NT31C and NT631C only.)
Page 120 Section Lamps Allocated Bit Lamp bits can be allocated to the following host (PC) areas. Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation None IR Area CIO Area CIO Area HR Area HR Area AR Area Auxiliary Area AR Area LR Area LR Area...
Page 121: Touch Switches
The PT allows input from the touch panel on the screen. By pressing (touching) the touch switches on the screen, the PT screen can be switched, and bit in- formation can be sent to the host. NT31/NT31C: 16 wide x 12 high NT631/NT631C: 32 wide x 24 high 20 dots...
Page 122 Section Touch Switches Caution If touch switches are pressed in rapid succession, their inputs may not be suc- cessfully received. Confirm that the input of a touch switch has been successfully received before moving on to the next operation. Reference: Caution on pressing three touch switches When multiple touch switches are arranged as shown in the example below and the three are pressed at the same time, a malfunction will occur due to a pecu- liarity of the touch switch mechanism.
Page 123 Section Touch Switches Input Key – Control Function When used in combination with the numeral/character string setting function, this function allows numeric values to be input into input fields. It is also possible to execute special functions such as checking and clearing input numeric values and character strings, and moving the cursor and moving between input fields with the arrow keys.
Page 124 Section Touch Switches Cursor Moving Key Function When there are a number of numeral setting or character string input fields on the screen, this function makes it possible to move the cursor to any required input field. Press here Input position 1234 1234 moves...
Page 125 NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Display color when the touch switch is ON (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Display color when the touch switch is OFF (Colors other than black and white are available with the NT31C and NT631C only.)
Page 126 Section Touch Switches Light Function Address PC Bit Allocated bit for displaying the touch switch (See Allocated bit Address on page 116.) Comment that indicates the contents of the allocated bit Comments Character string of up to 16 alphanumerics and symbols Lamp Attribute On Type Inverted display of the display graphic when the touch switch...
Page 127 Section Touch Switches With Free-shape Display Frame When a free-shape display frame is used, the display graphic can be set any- where, independently of the area that responds as a touch switch (touch switch area). Rectangle Polygon Position Description Position Description Frame color Frame color Size...
Page 128 Section Touch Switches Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation EM Area EM Area, EM Area, current bank current bank current bank E0_ to EM Area, EM banks 0 to C f: OK : NG n: Host link not available *1: Words LR 00000 to LR 00199 are converted to CIO 01000 to CIO 01199.
Page 129 The touch switch elements of the PT are arranged in a grid measuring 16 wide by 12 high on the screen. It is possible to create a single large rectangular touch switch using multiple touch switch elements. NT31/NT31C: 16 wide x 12 high NT631/NT631C: 32 wide x 24 high 20 dots...
Page 130 Section Touch Switches Screen Print Key Function A hard copy of the currently displayed screen can be printed out at a printer con- nected to the PT. For details, see Processing Functions below. It is possible to sound the key press sound when a touch switch is pressed. Whether or not the key press sound is sounded can be set at key press sound with memory switch.
Page 131 ON by processes other than PT operations, such as the lad- der program or a Programming Device. In the NT31/NT31C and NT631/NT631C, changes to bits by PT processes are always reflected correctly so the momentary, alternate, set, and reset touch switches can be allocated to the same word.
Page 132 Section Touch Switches • In the case of (2) in the table, since notification is executed on the basis of the contents of the word before the display, the other bits in the word are not over- written. However, if the contents of the word are changed at the host during display, they will be rewritten based on the contents before display.
Page 133 Section Touch Switches *3: The EM Area current bank cannot be used in CS1-series PCs when a 1:N NT Link (standard or high-speed) is being used through a Serial Communications Board or Serial Communications Unit. An error will occur during PT operation if a bit is specified in a CS1-series PC’s EM current bank.
Page 134 Section Touch Switches • Screen No. 9021, 9022, or 9023 The Device Monitor function’s screens are displayed. The displayed screen’s screen number (9021 to 9023) is notified to the host. The Device Monitor function can be used even in RUN mode, although this is the case only when the PT is connected to a PC that can use the Device Monitor function.
Page 135 Section Touch Switches the source string exceeds 40 characters, only the first 40 characters will be co- pied. S Input into character string input fields is also possible using the control key Reference: touch switches (0 to 9, A to F), and from a bar code reader connected to the PT. S A control key touch switch (ENT or [ ]) is also necessary to confirm input char- acter strings when character string setting is used.
Page 136 1 to 3999 Window Position X coordinate of bottom-left corner (multiple of 20) NT31/NT31C: 0 to 300 NT631/NT631C: 0 to 620 Y coordinate of bottom-left corner (multiple of 20 - 1) NT31/NT31C: 19 to 239 NT631/NT631C: 19 to 479...
Page 137 Section Touch Switches No check mark: If the other window of the same type is already displayed, no operation is performed. Copy Key Function This function is used to copy the data or constants in a memory table to another memory table or an input field.
Page 138 Window/Keyboard Screen) 1 to 3999 Window Position X coordinate of bottom-left corner (multiple of 20) NT31/NT31C: 0 to 300 NT631/NT631C: 0 to 620 Y coordinate of bottom-left corner (multiple of 20 - 1) NT31/NT31C: 19 to 239 NT631/NT631C: 19 to 479...
Page 139 Section Touch Switches The window is changed to the frame display only as follows, with the mark at the center of it. Window moving key move 3. Press the touch panel of the PT at the moving destination. Window is moved so that the center position of the window comes to the pressed position.
Page 140 Section Touch Switches Relationship with Other Elements • By using input key – string and input key – control in combination with Numeral Input (page 183) and String Input (page 201), numeric values and character strings can be input. Registering these keys in windows makes it possible to switch among win- dows as required for versatile input.
Page 141: Numeral Display
Section Numeral Display Numeral Display Function Outline The contents of numeral memory tables are displayed as numeric values. The values can be displayed either in decimal or hexadecimal notation. There are two methods for referencing a numeral memory table whose contents are to be displayed, as follows.
Page 142 Display color of the numerals (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Background Background color of the numerals (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Settings Reference...
Page 143 With ISO 8859-1 font type, the numerals of 2 2 or larger scale are automatically displayed in 32 dot high-definition font. Reference: The 32 dot high-definition font is not displayed for the following models (16 16 dot font is used.) • NT31-ST121j-E • NT31C-ST141j-E • NT631-ST211j-E • NT631C-ST141j-E • NT631C-ST151j-E Smoothing Characters enlarged to a scale of 2 2 or greater can be displayed with the out- line automatically smoothed.
Page 144 Section Numeral Display Display Attributes And Drawing Result Attribute Drawing Result Standard The numeral display is displayed with the specified foreground color and background color. 12345678 Flash Repeated alternation of the standard display and no display. 12345678 ⇔ Inverse Flash Repeated exchange of the foreground color and background color.
Page 145 Section Numeral Display • Setting for Integer = 4; setting for Decimal = 4: Resulting display: 0012.3456 • Setting for Integer = 2, setting for Decimal = 4: Resulting display: 12.3456 • Setting for Integer = 1, setting for Decimal = 4: Resulting display: ∗.∗∗∗∗...
Page 146 Section Numeral Display Storage Display Words Sign Permissible Display Range Type Type Unsigned 0 to 9999 Decimal Decimal Signed –999 to 9999 Hexadecimal – 0 to 270F Unsigned 0 to 99999999 Decimal Decimal Signed –9999999 to 99999999 Hexadecimal – 0 to 5F5E0FF Unsigned 0 to 32768 Decimal...
Page 147 Section Numeral Display An example is given below. Numeric val- Contents Displayed Storage Display ue stored in of word at numeric val- Words Sign Type numeral Type host memory table 1234 000004D2 1234 F123 FFFFFF85 Unsigned F0001234 FFFFFB2E 1234 Decimal Decimal 1234 000004D2...
Page 148 Section Numeral Display • When numeral display is specified for a lamp or touch switch’s guide character type, the characters are converted and displayed just like numeral displays. Refer to Guide Character T ype on page 106 for more details on guide charac- ter types.
Page 149: Character String Display
Section Character String Display Character String Display Function Outline The contents of character string memory tables are displayed as character strings. Alphanumerics and symbols can be displayed. It is also possible to display marks (character codes FF20 to FFFF ) in character strings. There are two methods for referencing a character string memory table whose contents are to be displayed, as follows.
Page 150 Section Character String Display Magnification NT31/NT31C NT631/NT631C 1 1 (Equal) Up to 40 characters Up to 40 characters 1 2 (High) Up to 40 characters Up to 40 characters 2 1 (Wide) Up to 20 characters Up to 40 characters...
Page 151 Display color of the text (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Background Background color of the text (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Settings Reference...
Page 152 16 16 dot font. Reference: The 32 dot high-definition font is not displayed for the following models. (16 16 dot font is used.) • NT31-ST121j-E • NT31C-ST141j-E • NT631-ST211j-E • NT631C-ST141j-E • NT631C-ST151j-E...
Page 153 Section Character String Display Display Attributes and Drawing Result Attribute Drawing Result Standard The character string display element is displayed with the specified foreground color and background color. ABCDEFG Flash Repeated alternation of the standard display and no display. ABCDEFG ⇔...
Page 154 Section Character String Display • When character string display is specified for a lamp or touch switch’s guide character type, the characters are just like character string displays. Refer to Guide Character T ype on page 106 for more details on guide character types. •...
Page 155: Graphs
Section 2-10 Graphs 2-10 Graphs The following three types of graphs can be used with the PT. The contents of memory tables are read out, and the graph display is updated, automatically. If the numeral memory table is allocated to a word or words at the host, changes in the word or words are continually reflected in the graph.
Page 156 NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White – Range Display color of the negative range (Colors other than black and white are available with the NT31C and NT631C only.) (effective only when a check mark is set for Display Sign) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Settings...
Page 157 Section 2-10 Graphs Settings (Specify 0% value using either of Table Entry or Value.) Table Entry Numeral memory table number checked to find the 0% value for percentage calculations @ Designate the number of the numeral memory table that stores the 0% value. Range: 0 to 1999 Value Checked to find the 0% value for percentage calculations...
Page 158 Section 2-10 Graphs Incremental Direction of Bar Graphs The incremental directions of the bar graph depending on the setting made for Direction are shown below (applies only when no check mark is set for Display Sign). Down: The bar graph increments upward. The bar graph increments downward.
Page 159 The numeric value can also be indicated as a percentage of the designated nu- meric value. Also, scale display is possible. Restrictions • The analogue meter is available only in NT31/NT31C and NT631/NT631C PTs with the -EVj suffix on the system program’s version number.
Page 160 Check mark (frame displayed)/ No check mark (frame not displayed) Display color of the frame (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Display Sign Whether or not a negative area is displayed.
Page 161 (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red Magenta/Green/Cyan/Yellow/White Background Background color of the analogue meter (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White +Range Display color for the positive range (Colors other than black and white are available with the NT31C and NT631C only.)
Page 162 Section 2-10 Graphs When a table entry is specified for the % value, the relationship above will not be satisfied if the contents of the specified numeral memory table are incorrect. In this case, the graph won’t be refreshed even if the values displayed on the graph are changed.
Page 163 Section 2-10 Graphs Incremental Direction of Analogue Meters The incremental directions of the analogue meter depending on the setting made for Meter Shape, Display Direction and Meter Direction are shown below. 0% position Circle 0% position is determined by me- ter direction.
Page 164 Section 2-10 Graphs Display Sign Circle When Display Sign is ON, center position of the meter (It depends on Display Sign) will be 0%, and the each end side corresponds to 100% and –100%. • When the value is more than 100%, it will be displayed same as 100%. •...
Page 165 Section 2-10 Graphs shaped analogue meter will be drawn. Default value for width rate is set to 100%. With default status, therefore, donut- shaped analogue meter will not be drawn since there will be no inner circle. Scale Distance and Scale Length Specify the scale position and scale length in % format regarding the radius as 100%.
Page 166 Section 2-10 Graphs It is possible to display more than one broken line graph in the same frame so that they can be compared. 100% In this example, the values in 11 numeral memory tables are displayed with the sign indicated. –100% With broken line graphs, a 100% value, 0% value and –100% value can be set for each broken line in order to calculate and display the numeral memory table...
Page 167 NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White – Range Display color of the negative range (Colors other than black and white are available with the NT31C and NT631C only.) (effective only when a check mark is set for Display Sign) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White...
Page 168 Even/Uneven (cannot resize) (0 to size in the broken line graph Direction – 1) Line Color Display color of the broken line (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Style Line type used for the broken line graph Solid line:...
Page 169 Section 2-10 Graphs When a table entry is specified for the % value, the relationship above will not be satisfied if the contents of the specified numeral memory table are incorrect. In this case, the graph won’t be refreshed even if the values displayed on the graph are changed.
Page 170 The maximum number of vertices (numeral memory tables) that can be dis- played in one broken line is 320 in NT31/NT31C PTs or 512 in NT631/NT631C PTs, but since a minimum interval of 1 dot is actually required between memory tables, the following restriction applies depending on the width (number of dots) of the graph frame.
Page 171 Section 2-10 Graphs Differences in The Broken Line Graph Display Method According to The Percentage Value The broken line graph display method varies according to the percentage value range. 1, 2, 3... 1. When the percentage value is in the minus range The display varies as follows according to the Display Sign setting.
Page 172 Section 2-10 Graphs 2-10-4 Trend Graphs Function Outline Trend graphs represent the changes over time in the contents of a numeral memory table as one line. It is possible to display more than one such line in the same frame so that they can be compared.
Page 173 NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White + Range Display color of the positive range (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White – Range Display color of the negative range (Colors other than black and white are available with the NT31C and NT631C only.)
Page 174 For details on the Display % properties, refer to the Numeral Display’s General Properties on page 131. Line Color Display color of the line (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Style Line type used @ Solid line:...
Page 175 Section 2-10 Graphs *1: The –100% value, 0% value, and 100% value must comply with the following relationship: –100% value < 0% value < 100% value When a table entry is specified for the % value, the relationship above will not be satisfied if the contents of the specified numeral memory table are incorrect.
Page 176 Section 2-10 Graphs S If a small value is set for Interval Type, even if broken line, 1-dot chain line, or Reference: 2-dot chain line is specified the line will appear to be a solid line. S In the case of a standard trend graph which determines the 100%, 0% and –100% values according to the Table Entry settings, if the contents of the refer- enced numeral memory tables change, the graph becomes discontinuous.
Page 177 Section 2-10 Graphs Drawing Width The drawing width is the interval at which successive data are drawn in the direc- tion of motion. If a value outside the display area of the graph is specified, the graph will not be displayed. Drawing width →...
Page 178 Section 2-10 Graphs When Pen Recorder Is Set for Type With the pen recorder type, the latest drawing position is always displayed at the edge of the graph area. As time passes, the part of the graph which is already displayed moves in the direction specified by Direction (as if paper were moving underneath a pen).
Page 179 Section 2-10 Graphs 1, 2, 3... 1. When the percentage value is negative The following happens, depending on the setting for Display Sign: • No check mark: The graph line is displayed as 0% (Display % is shown in negative value). •...
Page 180 Section 2-10 Graphs Reference: The retention of data by the data logging function remains effective until any of the following operations is performed. S The power to the PT is turned OFF. S The PT is reset. S All the screen data is transmitted. S Data is transmitted in screen units.
Page 181 Section 2-10 Graphs Controls on Display According to Touch Switches Trend graphs can be displayed in the form shown below, with associated touch switches to control operations. These dedicated touch switches can be used for data sampling and display op- erations.
Page 182 Section 2-10 Graphs With a standard type trend graph, if this touch switch is pressed during dis- play of the latest data to backtrack to past data, and then the next page (for- ward) touch switch is pressed to return to display of the latest data, the latest data is plotted following the past data.
Page 183 Section 2-10 Graphs Pen Record Type With the pen recorder type, the latest drawing position is always displayed at the edge of the graph area. Therefore, depending on the number of data in the latest page, old data may be displayed discontinuously as shown below (Internally, the data is recorded continuously.) 1 page of display Display...
Page 184: Alarm List, Alarm History
Section 2-11 Alarm List, Alarm History 2-11 Alarm List, Alarm History Function Outline Alarm List The PT can monitor the status of bits at the connected host designated in bit memory tables and, when the status of a particular bit changes to 1 (ON), display the corresponding message (from a character string memory table) or image/li- brary data.
Page 185 Section 2-11 Alarm List, Alarm History Differences Between Alarm List and Alarm History The alarm list and alarm history differ in the following respects. Item Alarm List Alarm History Display As element only As element, and as a screen displayed from the method System Menu Monitored...
Page 186 Section 2-11 Alarm List, Alarm History Outline of Alarm List/Alarm History Operations The operations of the alarm list and alarm history are described below. S The alarm list only checks host bits allocated to bit memory tables within the Reference: designated range.
Page 187 (Same for window screen) In the case of an overlapping screen with 8 child screens, the maximum total is also 4. • With the NT31/NT31C, up to 12 alarm list/alarm history messages can be dis- played at the same time. With the NT631/NT631C, up to 24 alarm list/alarm history messages can be displayed at the same time.
Page 188 (But note that motion is in touch-switch-sized units only) Message Length Maximum number of characters in the displayed message NT31/NT31C: 1 to 39 NT631/NT631C: 1 to 40 For the alarm history function, the number of characters is decreased by the number required to display the History Info.
Page 189 NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Background ON color of the message display field (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White OFF color of the message display field (Colors other than black and white are available with the NT31C and NT631C only.)
Page 190 Section 2-11 Alarm List, Alarm History Display Functions Alarm List Apart from the Common Attributes, alarm lists have the properties indicated be- low. Properties Settings List Settings Start Bit Table First bit memory table number of the bit memory tables Entry used for monitoring for the alarm list Range: 0 to 1999...
Page 191 Y/M/D h:m (15 digits), a total of 55 characters will be displayed in the alarm history. Message Length Maximum number of characters in the displayed message NT31/NT31C: 1 to 39 NT631/NT631C: 1 to 40 For the alarm history function, the number of characters is decreased by the number required to display the History Info.
Page 192 Section 2-11 Alarm List, Alarm History • [When a message is added] • If a message is added outside the display range (before or after the display range), there is no change in the messages being displayed. • If a message is added within the display range, the new message is dis- played, and the messages following it are shifted one line downward.
Page 193 Section 2-11 Alarm List, Alarm History responding bit memory table, the message field lights (the corresponding image/library data is also displayed at this time). This makes it possible to tell at a glance which message the displayed image/library data corresponds to. Line Scroll Touch Switches When there are messages above or below the displayed range, these touch switches are lit.
Page 194: Inputting Numeric Values
At this time, the occurrence of change in the contents of the numeral memory table is notified to the host via the PT status notify area. NT31/NT31C Notification Data writing 1 2 3 4...
Page 195 Standard/Flash/Inverse Flash Color Foreground Display color of the numerals (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Background Background color of the numerals (Colors other than black and white are available with the NT31C and NT631C only.)
Page 196 Section 2-12 Inputting Numeric Values Settings Table Entry Number of the numeral memory table into which the input numeric value is written Range: 0 to 1999 Display Type Display format for the numeric value (Input numeric value and stored data, page 186) Decimal/Hexadecimal Format (Number of digits displayed, page 185) Integer...
Page 197 Section 2-12 Inputting Numeric Values Note that if the number of digits of the numeric value is greater than the total of the settings for Integer and Decimal, an error occurs and ∗ is displayed for all the digits. Example: Displaying 123456 •...
Page 198 Section 2-12 Inputting Numeric Values The permissible input range is determined as follows depending on these prop- erties. If input of a value outside this range is attempted, the PT checks and pre- vents the input. Storage Display Words Sign Permissible Input Range Type Type...
Page 199 Section 2-12 Inputting Numeric Values Numeric value Input nu- Contents Display stored in nu- Storage meric val- Sign Words of word at Type meral memory Type host table 1234 000004D2 1 word 1234 0000007B 1 word 0123 signed 1234 000004D2 00001234 words Decimal...
Page 200 Section 2-12 Inputting Numeric Values For a numeric key type numeral setting input field, the check is executed when an attempt is made to confirm a numeric value. If the value is higher than the upper limit or lower than the lower limit, the buzzer sounds three times and the input value is cleared (the status returns to that before input was attempted).
Page 201 Section 2-12 Inputting Numeric Values Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation None IR Area CIO Area CIO Area HR Area HR Area AR Area Auxiliary Area AR Area LR Area LR Area TC Area, Timer Area, TC Area, Timer PVs Timer PVs...
Page 202 Section 2-12 Inputting Numeric Values For details on the method of display according to the General settings, refer to Common Attributes (page 184). Input Functions • Numeric values are input into numeral setting input fields by using the control code input key touch switches. •...
Page 203 Section 2-12 Inputting Numeric Values 2. Each time a change is made to the numeric value it is confirmed and the oc- currence of the change is notified to the host via the PT status notify area. – – – – Notification Data writing 1 2 3 4...
Page 204 Standard/Flash/Inverse Flash Thumbwheel Color Frame Color of the frame of the numeral setting input field (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Foreground Foreground color of the numeral setting input field (Colors other than black and white are available with the NT31C and NT631C only.)
Page 205 Section 2-12 Inputting Numeric Values Settings Table Entry Number of the numeral memory table into which the input numeric value is written Range: 0 to 1999 Display Type Display format for the numeric value (Input numeric value and stored data, page 195) Decimal/Hexadecimal Format (Number of digits displayed, page 195) Integer...
Page 206 Section 2-12 Inputting Numeric Values Display Attributes and Drawing Result Display Attribute Drawing Result Standard The numeral setting input field is displayed with the specified foreground color and background color. Flash Repeated alternation of the standard display and no display. ⇔...
Page 207 Section 2-12 Inputting Numeric Values When the word allocated in the host is input to a 1-word memory table, the in- put value is treated as 4-digit (16-bit) signed binary data so it is converted to 8-digit signed binary data before being stored. For example, if a value of 8001 hexadecimal is input to a 1-word numeral memory table, it is recognized as a negative value because the most signifi- cant bit is ON.
Page 208 Section 2-12 Inputting Numeric Values also differs according to the settings made for Words and Storage Type (BCD or Binary). Numeral memory table 8-digit hexadecimal (Can’t be read externally.) Decimal Binary Hexadecimal Binary Set the data format in Set the data format in which the values input at which the numeral memory the PT will be stored in the...
Page 209 Section 2-12 Inputting Numeric Values value in the numeral memory table changes. Reference: When the Storage Type is BCD, the numeral memory table’s signed binary data is converted to data for storage in the host word (BCD data) and written to the host.
Page 210 Section 2-12 Inputting Numeric Values Desired input Lower limit to set Upper limit to set range 0 to FFFF –32,768 ($8000) 32,767 ($7FFF) 0 to FFFFFFFF –2,147,483,648 ($8000 0000) 2,147,483,647 ($7FFF FFFF) Interlock Function A numeral input from a thumbwheel switch can be controlled (enabled/disabled) from the PC by setting the interlock function for the numeral input and allocating an interlock bit in a PC data area.
Page 211 Section 2-12 Inputting Numeric Values Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation EM Area EM Area, EM Area, current bank current bank current bank E0_ to EM Area, EM banks 0 to C f: OK : NG n: Host link not available *1: Words LR 00000 to LR 00199 are converted to CIO 01000 to CIO 01199.
Page 212: Inputting Character Strings
1. Input a character string into a character string input field using touch switches or a bar code reader. The input text is inserted at the position of the input cursor. Character string input field Display NT31C Input NT31C NT31 NT631C 2.
Page 213 • The following numbers of characters can be displayed in one character string input field, depending on the scale. Magnification NT31/NT31C NT631/NT631C 1 1 (Equal) Up to 40 characters...
Page 214 Standard/Flash/Inverse Flash Color Foreground Display color of the text (Colors other than black and white are available with the NT31C and NT631C only.) Black/Blue/Red/Magenta/Green/Cyan/Yellow/White Background Background color of the text (Colors other than black and white are available with the NT31C and NT631C only.)
Page 215 Section 2-13 Inputting Character Strings Position Foreground color ABCDE Background color If the number of characters actually input is greater than the number of input characters set for the character string input field, the excess characters are ig- nored. If the number of characters actually input is less than the number of input charac- ters set for the character string input field, the character string is input at the cur- sor position, and the characters that were to the right of the cursor position are shifted to the right.
Page 216 Section 2-13 Inputting Character Strings Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation AR Area Auxiliary Area AR Area LR Area LR Area TC Area, Timer Area, TC Area, Timer PVs Timer PVs Timer PVs TC Area, Timer Completion Flags TC Area, Counter Area, TC Area,...
Page 217 Section 2-13 Inputting Character Strings For details on the connection and settings of the bar code reader, refer to section 3 of the Setup Manual . When a character string input field using the interlock function is being displayed on the screen, the PT continuously reads the status of the corresponding inter- lock bit allocated in the PC.
Page 218: Recipe
Section 2-14 Recipe 2-14 Recipe 2-14-1 Function Outline You can write data in table format to the host (PC memory or PT memory), and read data in table format from the host. Use this function to write multiple settings from the PT to the host in a single operation, and to read multiple settings from the host in a single operation.
Page 219 Section 2-14 Recipe • After writing to the host, you can send a writing completed notification to the host using the status notify bits (strobe operation) on the host. Outline Overall Configuration Create (1) recipe tables and (2) recipe elements. Support Tool Transfer screen data containing registered recipe tables and recipe elements.
Page 220 Section 2-14 Recipe List of Functions Item Function Recipe tables Consist of multiple individual recipe data. Recipe data 1,000 records max. ( bl d (table data) Record Consists of 200 parameters max. details details Parameter Numerical data A touch switch for moving the cursor appears in the parameter field.
Page 221 Section 2-14 Recipe Display Configuration of Recipe Elements Recipe elements are displayed with records as rows and parameters as col- umns. Set the parameters (numerical data) in the parts shaded below. Unshaded parts are fixed character strings. You can set the parameters (numerical data) using initial settings on the Support Tool or an edit operation on the PT.
Page 222 Section 2-14 Recipe Elements Configuration Table Table format Displays records as rows, and parameters as columns. Recipe data Recipe data name You can attach a table name to the top left. (1 d (1 data in Recipe data comment You can attach a comment about the table (not table displayed on PT screen).
Page 223 Section 2-14 Recipe Note a) Names and comments can be set only from the Support Tool. You cannot change them from the PT. b) You can also set the following details in the recipe table using the Support Tool. Enable or disable parameter editing on the PT (“Lock”; set for each record individually), and specify the start address for consecutive words allocated to the host.
Page 224 Section 2-14 Recipe Note You can also send recipe elements to the PT in units of screens, and send recipe tables to the PT in recipe table units. Create recipe tables and register recipe elements Support Tool in each screen. [Recipe Table Setting Screen] Recipe table title Parameter 1...
Page 225 Section 2-14 Recipe Note Once a record is displayed in reverse video, clear the selection by pressing the same record name field again, or by pressing the name field for another record, or by pressing the line scroll touch switches or page scroll touch switches.
Page 226 Section 2-14 Recipe Interlock Function While a specified host bit (interlock bit) is OFF, you can prohibit all recipe touch switch operations. Write (and Read) switch is disabled. Record selection is not possible. Recipe table titleParameter 1 Parameter 2 Parameter 3 Record 1 Record 2 Record 3...
Page 227 Section 2-14 Recipe Select a record and press the Write switch. Recipe table title Parameter 1 Parameter 2 Parameter 3 Record 1 Record 2 Record 3 Example: Transfer write completed data to another area in the PC. Ladder program Writing record data Write Notification Flag...
Page 228 Section 2-14 Recipe Support Tool (1) Downloading (3) Uploading Flash memory Recipe data memory (Battery backup) Updated data (3) Overwriting during upload- (1) Copying during downloading (4) Copying during recipe table initialization in the System Menu. (2) Editing on PT (2) Data transfer with PC 2-14-3 Limits •...
Page 229 Section 2-14 Recipe Recipe Table Properties Specifying Individual Recipe Data (Recipe Settings) Recipe Entry Number (Number) Automatically allocated (1 to 200) Recipe Data Name (Name) Character string (12 alphanumeric characters) Comment Character string (24 alphanumeric characters) No. of Records 1 to 1000 No.
Page 230 Specifying color Frame Color Black, blue, red, magenta (violet), green, cyan (aquamarine), yellow, white (Colors except white and black are available only with the NT31C and NT631C.) Foreground Black, blue, red, magenta (violet), green, cyan Record name Color (aquamarine), yellow, white...
Page 231 Section 2-14 Recipe Setting properties Recipe Entry 1 to 200 (recipe data number being referred to) Note Multiple recipe elements can reference recipe data with the same number. Show Window/Keyboard Screen Local window 1/local window 2 Screen No. Local 1 (keyboard) Select to control local window 1 Specify number of window screen to be controlled;...
Page 232 Section 2-14 Recipe Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation TC Area, Timer Area, TC Area, Timer PVs Timer PVs Timer PVs TC Area, Timer Completion Flags TC Area, Counter Area, TC Area, Counter PVs Counter PVs Counter PVs TC Area, Counter Completion Flags...
Page 233 Section 2-14 Recipe Note The most significant bit is taken to be the sign (i.e., when this bit is ON (1), the number is negative). Writing from PT to Host Recipe Conversion to signed BIN When storage type is BCD: Recipe table memory (conversion) When storage...
Page 234 Section 2-14 Recipe Host Storage Words Dec/Hex Sign Input range permitted type 1 word Decimal 0 to 9999 –999 to 9999 FC19 to FFFF (negative numbers) 0 to 270F (positive numbers) 2 words Decimal 0 to 99999999 –9999999 to 99999999 FF676981 to FFFFFFFF (negative numbers) 0 to 5F5E0FF (positive...
Page 235 Section 2-14 Recipe word for each recipe data, the number of words for each parameter, whether the data is in decimal or hexadecimal, and whether or not the data is signed. The ranges are shown in the following table. Host Storage Number Dec/Hex...
Page 236 Section 2-14 Recipe Number of Digits The contents of recipe data memory in the PT are all stored as integers. To dis- play values that contain decimals, set “Decimal” to 1 or more, and specify the number of digits after the decimal point. Decimal point will be automatically in- serted.
Page 237 Section 2-14 Recipe Symbol C-series PCs Allocation CV-series PCs Allocation CS1-series PCs Allocation TC Area, Counter Area, TC Area, Counter PVs Counter PVs Counter PVs TC Area, Counter Completion Flags WR Area Task Flags DM Area DM Area DM Area EM Area EM Area, EM Area,...
Page 238 Section 2-14 Recipe Note If there is a numerical input column in the pop-up window, it is a tem- porary input column. Once input values are displayed in the tempo- rary input column, press the Return key to store them to the parame- ters column.
Page 239: Window Function
Section 2-15 Window Function 2-15 Window Function The PT has window function which can display a window overlapping the cur- rently displayed screen (base screen). Windows can be opened without restric- tion whenever necessary. Reference: The opening of windows by the operations at PT can be inhibited by a PT status control area operation.
Page 240 Section 2-15 Window Function • By registering multiple screen switching keys (touch switches), menus for screen switching can be created. Graph Next MENU MENU When Graph is pressed Press here When Next is pressed MENU MENU • The window can also be used as a sub screen for displaying a detailed in- formation as required.
Page 241 Section 2-15 Window Function Opening, closing or moving a window can be performed by the following opera- tions. • Setting the screen attribute (A window pops up when the screen is displayed.) • Touch switch operation (using input key-window/keyboard or window move function touch switch) •...
Page 242 Window control area can control both global window and local window. For de- tails, refer to 3-4 Display and Control of Windows (page 298). NT31/NT31C Local window 1 open (Window screen No.125) Window control area ←0125...
Page 243 Section 2-15 Window Function 2-15-6 Changing the Displaying Order of Windows When multiple windows are displayed on a base screen, the part of the windows may overlap with each other. To move a window which is covered by the other window to the front, follow the methods below.
Page 244 Section 2-15 Window Function 2-15-7 Checking the Display Status of a Window Whether window is opened or closed is written to window open status at PT sta- tus of PT notify area. Window screen number and window position (bottom left coordinate) of current- ly displayed screen is written to window control area.
Page 245 Section 2-15 Window Function Example: Temporary input field 1 Character string input field Temporary input field 2 Window 1 Window 3 Window 2 In the example above, window 2 is a focus window. All the input indicated below is performed to a temporary input field on window 2. •...
Page 246: Special Functions
Section 2-16 Special Functions 2-16 Special Functions Apart from the elements, the PT has the following functions which can be executed at the PT itself. • Display history function Page 235 • Alarm history function Page 237 • Resume function Page 240 •...
Page 247 In either case of order of occurrence or order of frequency, the number of records that can be displayed on one screen is 14 with NT31/NT31C PTs or 29 with NT631/NT631C PTs. To view those records that are not displayed on the current screen, scroll the screen with the up and down touch switch arrow keys.
Page 248 2-16 Special Functions determined by memory switch setting at the PT. The following example shows an NT31/NT31C PT: Order of Frequency The screen records are displayed in the order of frequency of display (number of times displayed) of the corresponding screens. The following example shows an...
Page 249 Section 2-16 Special Functions character string memory tables that contain messages indicating the con- tents of alarms. Only bits for which the History attribute is set are objects of the alarm history record function. Bits for which History is set are continually monitored during operation of the PT regardless of the screen being displayed.
Page 250 For details on the System Menu operation, refer to section 6 of the Setup Manu - al . When the record is checked in the Maintenance mode, screens like those shown below are displayed. (The following examples show NT31/NT31C PTs.) Occurrence Order Screen Frequency Order Screen...
Page 251 Section 2-16 Special Functions Frequency Order Screen Cycle time exceeds Cycle time over 100 msec! Abnormal high function unit The following countermeasure should Abnormal remote I/O be taken:Program is checked again. Setting of cycle time over not detected (DM6655:X1XX) 2-16-3 Resume Function The PT has a function to protect the contents of memory tables that have been changed during operation (by the numeral/character string setting function, or by an instruction from the host) and retain them even when the power to the PT is...
Page 252 • Screen saver that displays the contents of character string memory table No. 0 for a set length of time each at random positions on the screen (with the NT31C and NT631C, the color is also changed randomly). With this screen saver, the backlight is not turned off.
Page 253 Section 2-16 Special Functions 2. Short intermittent buzzer 3. Long intermittent buzzer For example, if the continuous buzzer and short intermittent buzzer are speci- fied together, the continuous buzzer sounds. Sounding the Buzzer Except the case the buzzer is set not to sound at all, the buzzer automatically sounds when an error occurs at the PT.
Page 254 Section 2-16 Special Functions Numeral Func- memory Digit position Information Value Remarks tion table Setting Second 00 to 59 only Minute 00 to 59 Date Date Hour Hour 00 to 23 24-hour system Minute Minute Date 01 to 31 Second Month 01 to 12 Year...
Page 255 Section 2-16 Special Functions Printing a Screen Image The following two methods are available for printing out a hard copy of the cur- rently displayed screen. Using a Touch Switch with The Screen Print Function When creating the screen to be printed out, register a touch switch with the screen print touch switch for it.
Page 256 Section 2-16 Special Functions Display History Occurrence order Scrn YY/MM/DD HH:MM Comment 98/02/23 08:45 menu screen 98/02/23 08:46 alarm screen 98/02/23 08:47 setting screen 98/02/23 08:47 alarm screen 98/02/23 08:48 menu screen 98/02/23 08:50 alarm screen 98/02/23 08:51 setting screen 98/02/23 08:55 menu screen...
Page 257 Section 2-16 Special Functions Frequency order No. Comment Cnt. WATER TANK OVERHEATING WATER TANK TEMP. TOO LOW PROCESS 3 STOPPED TEMP. OUT OF SETTING RANGE SUPPLY MATERIAL A PROCESS 5 EMERGENCY STOP SUPPLY LABEL PAPER SUPPLY MATERIAL B PROCESS 2 STOPPED PROCESS 1 STOPPED 2-16-8 Adjusting Contrast and Brightness During PT Operation With the NT31/31C and NT631/631C, in addition to using the System Menu...
Page 258 Section 2-16 Special Functions • Increase 10 steps: • Increase 1 step: • Decrease 10 steps: • Decrease 1 step: You can adjust the contrast while checking the actual screen. Brightness and contrast adjustment screen Close screen Quit PT status control area Brightness Contrast Display screen...
Page 259 2-16 Special Functions 2-16-9 Programming Console Function As an expansion function, the NT31/NT31C and NT631/NT631C feature the Programming Console function, which allows to be used in place of a C200H- PRO27-E Programming Console. The following table shows the combinations of communications methods and PCs that can support the PT’s Programming Console function.
Page 260 Section 2-16 Special Functions Most of Programming Console functions are possible, with the exception of re- cording (storing) ladder programs on cassette tape and replaying (reading) them. For details on the system configuration for using the Programming Console function, the method for connection to a PC, and how to use the Programming Console function, refer to Programming Console Function in section 6 of the Setup Manual .
Page 261: Device Monitor Function
2-17 Device Monitor Function 2-17 Device Monitor Function The NT31/NT31C and NT631/631C PTs have been equipped with the Device Monitor function which can be used to read/change words in the PC’s data areas and display the PC’s error log. Caution Be sure that it is safe to proceed before using the Device Monitor function to per- form one of the following operations from the PT.
Page 262 Section 2-17 Device Monitor Function 2-17-2 Device Monitor Screens and Functions Screen Configuration The Device Monitor function has 3 screens: the registration monitor screen, con- tinuous monitor screen, and error log screen. The following examples show the screens from an NT631/NT631C. Registration monitor screen Continuous monitor screen Error log screen...
Page 263 Section 2-17 Device Monitor Function Calling from the System Menu 1. Select Expansion Mode → Device Monitor function from the System Menu. 1, 2, 3... The Device Monitor Menu will be displayed. (The following example shows the menu of an NT631/NT631C.) 2.
Page 264 This section describes the operations that can be performed in all 3 Device Mon- itor screens. Displaying/Changing the The operating mode of the PC that is connected to the PT is displayed in the bot- PC Operating Mode tom-right corner of the Device Monitor screens. NT31/NT31C NT631/NT631C Change-mode Change-mode Operating mode Operating mode...
Page 265 Switch Device Monitor Touch switches are provided to switch from one Device Monitor screen to anoth- Screen NT31/NT31C NT631/NT631C All of the Device Monitor screens have 3 touch switches in the upper-left corner of the screen that correspond to the 3 Device Monitor screens. The current De- vice Monitor screen is displayed in reverse-video.
Page 266 2-17 Device Monitor Function NT31/NT31C Screen Address Hexadecimal PV Binary PV ASCII characters Data area With the NT31/NT31C, the PVs of up to 3 words can be displayed simultaneous- NT631/NT631C Screen Data area Binary PV ASCII characters Hexadecimal PV Address With the NT631/NT631C, the PVs of up to 8 words can be displayed simulta- neously.
Page 267 Section 2-17 Device Monitor Function Specifying/Changing the Word and Clearing the Display Words Displayable in the Registration Monitor Screen The following table shows which words can be monitored in the registration monitor screen. Data Name C200HX/HG/HE (-Z) C200HS, CPM1, CQM1H area CPM2A, CPM2C, CQM1, or SRM1...
Page 268 1. Press the hexadecimal PV table cell in the desired row. (Pressing the cell won’t have any effect if a word isn’t being displayed in the row.) The following popup input window will be displayed. NT31/NT31C input window NT631/NT631C input window...
Page 269 2-17 Device Monitor Function When the input window is displayed, the binary PV cell will change as shown below to receive the new hexadecimal PV. NT31/NT31C: “From > jjjj To > ????” NT631/NT631C: “From > jjjj To > ????” • The jjjj field shows the original PV that was displayed when the hexade- cimal PV table cell was pressed.
Page 270 The following popup input window will be displayed. NT31/NT31C input window NT631/NT631C input window At the same time, the binary PV field will be displayed in reverse video.
Page 271 (Pressing the cell won’t have any effect if a word or timer/counter isn’t being displayed in the row.) The following popup input window will be displayed. NT31/NT31C input window NT631/NT631C input window S Monitoring will stop in the row while the popup input window is being dis- Reference: played.
Page 272 Section 2-17 Device Monitor Function operating.) 2. Press the Release or Force release touch switch in popup input window. A confirmation message will be displayed in the bottom-left corner of the screen. 3. Press the Write touch switch to clear the forced status of all bits and timer/ counter Completion Flags in the PC.
Page 273 Device Monitor Function NT31/NT31C Screen Data area Address ASCII character area Hexadecimal PV area With the NT31/NT31C, the PVs of up to 25 words (5 words × 5 rows) can be dis- played simultaneously. NT631/NT631C Screen Data area Address PV area Hexadecimal PV area With the NT631/NT631C, two tables of 50 words (10 words ×...
Page 274 Use the following procedure to specify the words to monitor, change the words’ PVs, or clear words from the display. With the NT31/NT31C, the 25-word table containing the specified word will be displayed. (The first word in the table is a multiple of 25.) With the NT631/NT631C, the 50-word table containing the specified word will be displayed.
Page 275 Increment or Decrement Key. The table containing the specified word will be displayed. Each table con- tains either 25 words (NT31/NT31C) or 50 words (NT631/NT631C). 4. Press the Write touch switch. The PT will begin monitoring the range of words that contains the specified word and the popup input window will be closed.
Page 276 Device Monitor Function NT31/NT31C Screen Error Log display area With the NT31/NT31C, 5 error records can be displayed in one screen. The high- est priority error must be cleared in order to display the sixth error record. NT631/NT631C Screen Error Log display area With the NT631/NT631C, 30 error records (15 records ×...
Page 277 Section 2-17 Device Monitor Function Errors CS1-series C-series Fatal System FALS Error FALjjj (jjj: FALS errors number) Too Many I/O Units I/O Table Setting Error I/O Bus Error jjj (jjj: Rack number) No END Instruction Memory Error Unit Number Duplication Error Rack Number Duplication Error Fatal Inner Board Error Too Many I/O Points Error...
Page 278 The Device Monitor function can be used only when the control area. in the PT is for a PC maker PT is connected to an OMRON PC. Refer to 6-14 other than OMRON. Version Display in the Setup Manual and check the system program type.
Page 279 Section 2-17 Device Monitor Function Error Probable cause Remedy Remove trouble execution The cause of the PC error Eliminate the cause of the error that you are trying to fails. has not been eliminated. clear. For details, refer to the PC’s operation manual. (when clearing an error from error log screen) Connection failed.
Page 280: Mathematical Function
Mathematical Function 2-18 Mathematical Function The NT31/NT31C and NT631/631C PTs have been equipped with a mathemati- cal function that automatically executes formulas which have been registered in the PT in advance with the Support Tool. The mathematical function can auto- matically perform data processing such as scaling in the PT and display the re- sults.
Page 281 Section 2-18 Mathematical Function Available Operators The following operators can be used by the mathematical function. Type Symbol Function Result Arithmetic Addition Result of addition operators – Subtraction Result of subtraction Multiplication Result of multiplication Division, yields the quotient Result of division (quotient) Division, yields the remainder Result of division (remainder)
Page 282 Section 2-18 Mathematical Function Using Numeral Memory Tables Any numeral memory table can be specified as an operand. When a numeral memory table is specified, the number of words used in the calculation or the number of words stored as the calculation result depends upon whether words are allocated to the host.
Page 283 Section 2-18 Mathematical Function Using Constants Use the following ranges for the constants when specifying constants for oper- ands. –2,147,483,648 to 2,147,483,647 (8000 0000 to 7FFF FFFF hexadecimal) When constants are used, the number of words of operands is fixed at 2 words. 2-18-2 Data Flow in Calculations Up to 256 formulas can be registered in the PT’s mathematical table.
Page 284 Section 2-18 Mathematical Function that the calculations were performed. (All of the calculation results are ex- amined.) 4. If any results have changed, the new results are written to the corresponding numeral memory table or word allocated in the host. The host will not be notified that new results have been written to the numer- al memory table, but the same results will be written to words in the host if the numeral memory tables have been allocated in the host.
Page 285 Section 2-18 Mathematical Function tent is non-zero. (When the denominator is specified from the Support Tool, an error message will be displayed if you attempt to specify 0.) • Overflow An error will occur if the calculation result exceeds the maximum value that can be stored in the number of words in the result.
Page 286: Configuration Settings
NT30/620 Compatible Mode When you want to use screen data from an earlier PT (NT30, NT30C, NT620C, or NT625C) in an NT31, NT31C, NT631, or NT631C, you can set NT30/620 compatible mode to improve compatibility and reduce the editing required to make the screen data and the user program compatible.
Page 287 Section 2-19 PT Configuration Settings Number of Table Entries Set the numbers of numeral memory tables, character string memory tables, and bit memory tables here. For details on the numbers that can be set, refer to 2-3 Memory Tables (page 64). Numeral Storage Type Set whether the contents of words allocated to the following tables will be han- dled as BCD data or binary data.
Page 288: How To Use The Pt
SECTION 3 How to Use the PT This section describes how to use the functions provided by the PT. Screen Creation Procedure ..........Buzzer, Backlight, and Display Control .
Page 289: Screen Creation Procedure
Section Screen Creation Procedure Screen Creation Procedure Follow the procedure shown below to create screens for the NT31/NT31C and NT631/NT631C. The following gives the procedure assuming that the setting for the PT has been completed. The operating procedure for a Support Tool is not given here. For the operating procedure for the Support Tool, refer to the NT-series Support Tool Ver.
Page 290 PT in the Transmit mode, execute the screen data transmission operation with the Support Tool. NT31/NT31C Support Tool Reference: If is not necessary to allocate words to window control area, when the window is not used or when the window is not controlled from the host.
Page 291: Buzzer, Backlight, And Display Control
Section Buzzer, Backlight, and Display Control Buzzer, Backlight, and Display Control The procedure for controlling the PT status including sounding the buzzer, back- light ON/OFF status, and turning ON/OFF the screen display is described below. 3-2-1 Sounding the Buzzer The PT provides the following three types of buzzer sounds. •...
Page 292 Section Buzzer, Backlight, and Display Control Setting The PT status control area must be allocated to a word in the host and, accord- ingly, there are no special settings required for the control of buzzer. Operation The bit for controlling the PT status (PT status control bit) is provided at the fourth word (n + 3 words) from the beginning of the PT status control area.
Page 293 Section Buzzer, Backlight, and Display Control Stopping the Buzzer by the Operation at the PT Control Area This method allows the operator to stop the buzzer at any required time. PT status control area Stopping the buzzer Screen switch setting Copy memory table setting ←...
Page 294 The backlight is lit continuously. • Flash: The backlight alternates between lit and unlit states. With the NT31/NT31C and NT631C, the following two methods are used for con- trolling the backlight mode. • Displaying a screen for which the backlight attribute is set •...
Page 295 Section Buzzer, Backlight, and Display Control Controlling the Backlight Status by the Operation at the PT Status Control Area Using this method, the backlight status (lit/flashing) can be controlled at any re- quired time. Backlight is flashing PT status control area Screen switch setting Copy memory table setting...
Page 296 Section Buzzer, Backlight, and Display Control • Using the screen saver function of the PT • Operating the PT status control area Note To prevent the formation of an afterimage, either use the screen saver function or periodically switch screens. S The screen can be made to enter the no-display state by specifying screen No.
Page 297 Section Buzzer, Backlight, and Display Control Operation The bit for controlling the PT status (PT status control bit) is provided at the fourth word (n + 3 words) from the beginning of the PT status control area. Controlled Item 1 (ON) 0 (OFF) Screen display Performed...
Page 298 Section Buzzer, Backlight, and Display Control Redisplaying the Screen by the Operation at the PT Status Control Area This method allows the operator to redisplay the screen at any required time. Redisplaying the screen PT status control area Screen switch setting Copy memory table setting ←...
Page 299 Section Buzzer, Backlight, and Display Control Caution Do not press the touch panel carelessly while the backlight is off or while the screen is displaying nothing. Confirm system safety before pressing the touch panel. S Even if a position on the touch panel where a touch switch is set is pressed, the Reference: touch switch function is not executed but the screen is displayed.
Page 300: Screen Display And Notification
Section Screen Display and Notification Screen Display and Notification This section describes the each procedure for changing and checking the screen displayed by the PT. Reference: The methods of controlling PT status that are described below are not correct for PTs in NT30/620 compatible mode.
Page 301 Section Screen Display and Notification • 9001: Occurrence history screen • 9002: Frequency history screen • 9020: Programming Console function screen • 9021 to 9023: Device Monitor function screens • 9030: Brightness and contrast adjustment screen S To display overlapping screens, specify the screen number of a parent screen. Reference: S When the PT is started up, the screen of which screen number is stored for Screen Switch Setting in PT status control area is displayed.
Page 302 Section Screen Display and Notification S To display overlapping screens, specify the screen number of a parent screen. Reference: S The screen is not switched if elements have not been registered to the speci- fied screen number. Operation Press the touch switch with the screen switching function when the screen is to be switched.
Page 303 Section Screen Display and Notification The screen numbers that can be specified are: • 0001 to 3999: Screen No. 1 to No. 3999 • 9001: Occurrence history screen • 9002: Frequency history screen • 9020: Programming Console function screen • 9021 to 9023: Device Monitor function screens •...
Page 304 Section Screen Display and Notification Message and image/library data which correspond to bit memory table No. 10 Character string table 50 Character string No. 9 Image library 124A memory table No. 32 Allocated bit (bit table 10) Screen No. 100 1 ←...
Page 305 Section Screen Display and Notification • 9999: Return to the previous screen For details of the setting for bit memory tables, refer to 2-3-3 Bit Memory T ables (page 75). S To display overlapping screens, specify the screen number of a parent screen. Reference: S The screen is not switched if elements have not been registered to the speci- fied screen number.
Page 306 Section Screen Display and Notification 3-3-2 Finding the Screen Number of the Presently Displayed Screen The PT has a function to notify the host of the occurrence of a screen switching event, and the screen number of the new screen when the display screen is switched by operation at the PT.
Page 307 Section Screen Display and Notification If this bit changes to 1 (ON), it indicates that the screen has been switched by operation at the PT. Reference: The screen switching strobe automatically returns to 0 (OFF) when the occur- rence of the event is notified to the host. Notifying The Screen Number The area for the screen switch command and notification of the screen number is provided at the beginning (word n) of the PT status notify area.
Page 308 Section Screen Display and Notification to DM0101. The previous screen number is saved to the word provided for that purpose. 2. The program reads out the new screen number that was notified to the PT to transmit it to DM0100. The screen number of the screen presently displayed at the PT is stored to DM0100.
Page 309: Display And Control Of Windows
Section Display and Control of Windows Display and Control of Windows A window means a partial screen which can be displayed on the presently dis- played screen (base screen). A window can be created by registering a screen under a screen number from 1 to 3999 as a window screen.
Page 310 Section Display and Control of Windows Opening/Closing a Window by Pressing a Touch Switch That Has the Input Key – Keyboard Function If this method is used, the specified window can be opened and closed by opera- tion at the PT. By this method, only the local window can be controlled.
Page 311 Section Display and Control of Windows When a cursor moving key is used, the window opens in the same manner as an input key-window/keyboard function which has open action type. Numeral/character string input Numeral/character string input field field Touch switches for which cursor moving and 123456 123456...
Page 312 The coordinates that can be set are: PT model Allowed settings X coordinate: 0000 to 0300 (0000 to 012C hexadecimal) NT31/NT31C Y coordinate: 0019 to 0239 (0013 to 00EF hexadecimal) X coordinate: 0000 to 0620 (0000 to 026C hexadecimal) NT631/NT631C...
Page 313 Section Display and Control of Windows S When a new window is opened (when a window screen number is changed Reference: from 0000), window open status bit of the corresponding window type in PT status notify area goes ON. (Refer to page 303) However, when a window which is already opened is switched (when a window screen number is changed), window open status bit does not change.
Page 314 Section Display and Control of Windows S When a window control area is allocated to a host, window screen number and Reference: the bottom left coordinate of the window which is opened are notified to the window control area. (Refer to page 303) Also, window open status bit of the corresponding window type in PT status notify area goes ON.
Page 315 Section Display and Control of Windows Reading Out The Opening/Closing Status of a Window The bit for notifying the PT status (PT status notify bit) is provided at the second word (word m + 1) from the beginning of the PT status notify area. Notified Information 1 (ON) 0 (OFF)
Page 316 Section Display and Control of Windows (such as system menu or error screen) is displayed, the window is automatically closed, but the window screen number retains the existing value. The value in a window control area is effective only when the window is dis- played.
Page 317: Changing Numeral And Character String Display
Section Changing Numeral and Character String Display Changing Numeral and Character String Display This section describes the procedure(s) for changing the contents of the numer- al and character string memory tables which are allocated to the host and also the procedure for changing the display on the PT by operation at the host. For the procedure for displaying the contents of the numeral and character string memory tables at the PT, refer to 2-8 Numeral Display (page 130) and 2-9 Char - acter String Display (page 138).
Page 318 Section Changing Numeral and Character String Display Operation Change the contents of the word in the host to which the numeral memory table is allocated. The contents of the word are reflected to the numeral memory table according to the setting of the numeral memory table. Note that the contents of a numeral memory table allocated word can only be read out when the memory table is being used for an element that is currently displayed by the PT (if the background function is set for a trend graph, the con-...
Page 319 Section Changing Numeral and Character String Display 2. Each time carry over occurs during processing at (1) above, the contents of D0001 are incremented by 1. At the PT, the value of the higher 4 digits in numeral memory table No.1 increases by 1. 3.
Page 320 Section Changing Numeral and Character String Display PC Program Make a PC ladder program as shown below. The program must also be made so that the value of ACHIEVED is stored to D0010 and the value of TARGET is stored to D0011. 00100 @INC (38) Numeral memory table No.
Page 321 Section Changing Numeral and Character String Display S If the control code 00 Reference: is written to a word, it is displayed as a space by the PT. The character string is displayed only up to this code since it is regarded as the end of the characters.
Page 322 1. The display on the PT changes to the next item in the sequence NT631C → 1, 2, 3... NT631 → NT31C → NT31 each time bit 00100 comes ON. 2. The display on the PT changes to the next item in the sequence NT31 →...
Page 323 Section Changing Numeral and Character String Display Changing Numerals/Character Strings by Copying the Contents by Operation at the PT Status Control Area If this method is used, contents can be copied between any required memory tables at any time in response to a command from the host. Note that this meth- od is possible only for the following combinations.
Page 324 Section Changing Numeral and Character String Display PT Status Control (word n + 3) Controlled Item 1 (ON) 0 (OFF) Screen display Performed Not performed Processing priority registration (for NT link (1:N)) Registered Canceled Continuous buzzer Sounded Stopped Intermittent buzzer (short) Sounded Stopped Display history initialization...
Page 325 Section Changing Numeral and Character String Display 4. After the execution of memory table copying, return the setting for bit 3 of the 4th word (word n + 3) from the beginning of the PT status control area to 0 (OFF).
Page 326 Section Changing Numeral and Character String Display PC Program Make a PC ladder program as shown below. 09000 @MOV(21) #0004 Copy destination memory table No. Error flag Copy destination word @MOV(21) #0010 Copy source memory table No. Copy source word @ORW(35) #0008 Copy type, memory table copy execution bit...
Page 327 Section Changing Numeral and Character String Display The touch switch Copy Setting function executes copying in the following com- binations. Copy Source Copy Destination Numeral memory table Numeral memory table Numeral setting input field Character string memory table Character string memory table Character string input field Numeral memory table Constant...
Page 328: Display Of Graphs
Section Display of Graphs Display of Graphs This section describes the method for changing the graph display which shows the contents of numeral memory table, taking the trend graph as an example. For details of changing the contents of numeral memory table, refer to 3-5 Changing Numeral and Character String Display (page 306).
Page 329: Input Of Numeric Values And Character Strings
Section Input of Numeric Values and Character Strings Input of Numeric Values and Character Strings The procedure for inputting numeric values and character strings by operation at the PT is described below. 3-7-1 Inputting a Numeric Value Numeric values can be input with a numeral input field or thumbwheel switch, as shown in the following diagram.
Page 330 Section Input of Numeric Values and Character Strings S Inputs to input fields and thumbwheel switches can be disabled by setting the Reference: interlock function and turning OFF the host’s interlock bit that controls the in- put. (Refer to page 357.) S Likewise, the interlock function can be set for touch switches and the touch switch’s operation can be disabled by turning OFF the host’s interlock bit that controls the touch switch.
Page 331 Section Input of Numeric Values and Character Strings 3. Press the ENT key of the input key – control or the key to confirm the input. When the input is confirmed, the input numeric value is stored to a numeral memory table.
Page 332 Section Input of Numeric Values and Character Strings the input. When the input is confirmed, the input numeric value is written to the numeral memory table and the occurrence of a change in the contents of the numeral memory table is notified to the PT status notify area (page 55). The ENT key and the key differ from each other in the following respects.
Page 333 Section Input of Numeric Values and Character Strings Displayed Displayed Displayed numeric numeric numeric Order Order Order value value value Initial value ± 0000.000 0152.000 1524.130 0001.000 1524.000 0000.000 0015.000 1524.000 0000.900 0152.000 1524.100 0000.950 0152.000 1524.130 0000.950 Cases Where Multiple Numeral Setting Input Fields Exist on a Screen (Without Cursor Moving Keys) The following describes the procedure for inputting a numeric value at a screen which has multiple numeric key type numeral setting fields.
Page 334 Section Input of Numeric Values and Character Strings S If the objective input field is shifted before confirming the input, the input nu- Reference: meric value is canceled and the screen returns to the one displayed before the numeric value was input. S When a numeric input is confirmed, the PT checks whether the input is within the upper and lower (max./min.) limits set for that numeral setting input field.
Page 335 Section Input of Numeric Values and Character Strings Cases When Multiple Numeral Setting Input Fields Exist on a Screen (With Cursor Moving Keys) The following describes the procedure for inputting a numeric value at a screen which has multiple numeric key type numeral setting fields. The way in which the touch switch cursor moving keys are used to specify the input field is explained.
Page 336 Section Input of Numeric Values and Character Strings S If the objective input field is shifted before confirming the input, the input nu- Reference: meric value is canceled and the screen returns to the one displayed before the numeric value was input. S When a numeric input is confirmed, the PT checks whether the input is within the upper and lower (max./min.) limits set for that numeral setting input field.
Page 337 Section Input of Numeric Values and Character Strings • ENT or (necessary for confirming the input) The following keys can be registered if necessary. • HOME or ↑, ↓, ←, →, (necessary for specifying an input field) • CLR (for clearing the numeric value being input) •...
Page 338 Section Input of Numeric Values and Character Strings S If the objective input field is shifted before confirming the input, the input nu- Reference: meric value is canceled and the screen returns to the one displayed before the numeric value was input. S When a numeric input is confirmed, the PT checks whether the input is within the upper and lower (max./min.) limits set for that numeral setting input field.
Page 339 Section Input of Numeric Values and Character Strings • Touch switch input key – control • 0 to 9 • A to F (only for the numeral setting input field of the hexadecimal display format) • (necessary for inputting a negative value) •...
Page 340 Section Input of Numeric Values and Character Strings S If the objective input field is shifted before confirming the input, the input nu- Reference: meric is canceled and the screen returns to the one displayed before the nu- meric value was input. S When a numeric input is confirmed, the PT checks whether the input is within the upper and lower (max./min.) limits set for that numeral setting input field.
Page 341 Section Input of Numeric Values and Character Strings Example of Use <Base screen> <Window> 5 input settings Temporary input field 8 integer digits, no sign display (8 digits can be displayed) 00000001 Integer digits: 8; Decimal fraction digits: 0; Sign display: No;...
Page 342 Section Input of Numeric Values and Character Strings Inputting Numeric Values Using a Thumbwheel Type Input Field The following describes the procedure for inputting or changing a numeric value in a thumbwheel type input field. – – – – Decrease by 1 when key is touched –...
Page 343 Section Input of Numeric Values and Character Strings table is notified to the host. It is not necessary to confirm the input numeric value by pressing the ENT key or the key, which is required when a numeric key type input field is used.
Page 344 Section Input of Numeric Values and Character Strings When inputting a character string, the specification of an input field, window opening procedure, and the major purposes of a temporary input field are identi- cal to those for inputting a numeric value. The explanation below concentrates on how a character string is input;...
Page 345 – string and input key – control provided on the same screen when the screen has only one character string input field. Character string input field Display NT31C Input NT31C NT31 NT631C...
Page 346 Character string input field Display NT31C Input Bar code reader When a bar code reader is used, either of the following methods can be selected for confirming the input.
Page 347 Section Input of Numeric Values and Character Strings • CA (for canceling the input) • BS (for deleting a character located immediately before the input cur- sor) • DEL (for deleting a character located immediately after the input cur- sor) •...
Page 348: Using The Alarm List/History Function
Section Using the Alarm List/History Function Using the Alarm List/History Function This section describes how to use the alarm list and the alarm history which monitor the status of bits in the host and, if a bit status changes to 1 (ON), display the corresponding message and the image/library data.
Page 349 Section Using the Alarm List/History Function • String Table Entry: Table No. (0 to 1999) of the character string memory table to be displayed as a message • Image/Library Code: Image/library code displayed together with a message • 0000 No display •...
Page 350 Section Using the Alarm List/History Function Dedicated touch switches are provided for the alarm list/history. For the pro- cedure for using these touch switches, refer to How To Use the Touch Switches of the Alarm List/History (page 339). Contents of character string memory table set for the bit memory table whose status has If an alarm list with multiple lines is changed to 1 (ON).
Page 351 The recorded alarm history record data can be confirmed from the System Menu. It is possible to print the alarm history record data using a printer con- nected to the PT. Display in The Order of Occurrence (NT31/NT31C Shown) Display in The Order of Frequency (NT31/NT31C Shown) Setting When creating a screen using the Support Tool, set the following.
Page 352 Section Using the Alarm List/History Function Operation 1, 2, 3... 1. Initialize the recorded alarm history record data as needed. To initialize the alarm history record data using System Menu operation, se- lect Alarm History on the MEMORY INIT. MENU screen. To initialize the alarm history record data by operation at the PT status con- trol area, change the status of bit 1 in the 4th word (word n + 3) from the be- ginning of the PT status control area to 1 (ON).
Page 353: Using The Display History Function
After initializing the alarm history record data by the operation at the PT sta- tus control area, return the status of bit 11 to 0 (OFF). 2. Display the display history screen. (The following displays show screens from an NT31/NT31C PT.) The screen number of the display history screen is: Order of occurrence: No.
Page 354 11 to 0 (OFF). 2. Display the display history confirmation screen from the System Menu. (The following displays show screens from an NT31/NT31C PT.) The recorded display history record data is displayed.
Page 355 Section Using the Display History Function Display in The Order of Frequency (Screen No. 9002) 3. It is possible to display the previous and the next page by pressing the ↑ and ↓ keys. 4. To end the display, press the Quit touch switch. Reference: For the procedure for displaying display history from the System Menu, refer to Displaying and Printing the Display History Record in section 6 in the Setup Manual .
Page 356 Section 3-10 Display and Setting of Calendar Clock 3-10 Display and Setting of Calendar Clock The PT provides a function for displaying and setting the date and time. This sec- tion describes the procedure for using the clock function. Numeral Memory Table Used by The Clock Function Numeral memory tables No.
Page 357 Section 3-10 Display and Setting of Calendar Clock 3-10-1 Setting the Date and Time The clock data can be set by the following methods. • Setting from the System Menu • Changing the value in numeral memory tables No. 254 and No. 255 The following explains the procedure for writing the required clock data to the numeral memory tables.
Page 358 Section 3-10 Display and Setting of Calendar Clock Operation In the PT status control area, the following areas are provided to be used for copying the data between memory tables. • Second word from the beginning (word n + 1) Copy source memory table No.
Page 359 Section 3-10 Display and Setting of Calendar Clock 1, 2, 3... 1. Set the date and time data in the words where numeral memory table A is allocated (word A and word A+1, in the illustration below). A + 1 Word Date Hour...
Page 360 Section 3-10 Display and Setting of Calendar Clock 3-10-2 Displaying the Date and Time The procedure for displaying the date and time data set using the clock function of the PT by the numeric value display of numeral memory tables No. 247 to No. 253 is described below.
Page 361 Section 3-10 Display and Setting of Calendar Clock PC Program Create the PC ladder program as shown below. 00000 @XFER(70) #0004 AR18 DM0000 @MOV(21) #0254 @MOV(21) #0264 @ORW(35) #000C #0010 (1.0S) TIM001 @ANDW(34) #FFF7 #0010 (1.0S) TIM002 @MOV(21) #0255 @MOV(21) #0265 @ORW(35) #000C...
Page 362 Section 3-10 Display and Setting of Calendar Clock The date and time set at the PC is set for the PT and displayed. Reference: Only the last two digits of the year are displayed. For 2000 and later years the year shows the last two digits (20jj).
Page 363 Section 3-11 Printing Data and Checking the Printer Status 3-11 Printing Data and Checking the Printer Status The following data below can be output to a printer connected to the PT while the PT is operating. • Hard copy of the screen The status of the printer connected the PT can be checked from the host.
Page 364 Section 3-11 Printing Data and Checking the Printer Status • By the operation at the PT status control area • By pressing a touch switch with the print screen function. Printing a Hard Copy by Operation at the PT Status Control Area When this method is used, an operator can print a hard copy of the screen at any time.
Page 365 Section 3-11 Printing Data and Checking the Printer Status To print the hard copy of the screen, operate the PT status control area in the manner shown below. 1, 2, 3... 1. Read the second word (word m + 1) from the beginning in the PT status notify area and make sure that bit 7 (printer operating status) in the PT status notify bits is 0 (OFF).
Page 366 Section 3-12 Enabling/Disabling PT Operations 3-12 Enabling/Disabling PT Operations For the following functions of the PT, operations can be enabled or disabled by instructions from the host. • Opening a window (with PT status control bits) • Inputting numeric values and character strings (with PT status control bits or interlock bits) •...
Page 367 Section 3-12 Enabling/Disabling PT Operations Controlling the Enabling/Disabling of PT Side Operation by Operation at the PT Status Control Area Use this method to enable and disable PT operations from the host. PT opera- tions that can be controlled include opening windows, inputting numeric values and character strings, and switching screens.
Page 368 Section 3-12 Enabling/Disabling PT Operations Controlling PT Operations with Interlock Bits Use this method to enable and disable PT operations from the host. PT opera- tions that can be controlled include touch switch operations, numeric inputs, and character-string inputs. Operations are controlled individually. Touch switch interlock bit: CIO 010015 is OFF.
Page 369 SECTION 4 Using Memory Link This section gives an overview of memory link operations and contains explanations centered on communications between the PT and host when using memory link. Operation of the Memory Link ..........4-1-1 PT Memory .
Page 370 Section Operation of the Memory Link Operation of the Memory Link This section describes the function of the memory link. For outline of the function of memory link, refer to 1-5 Communication by Using Memory Link . 4-1-1 PT Memory With memory link, allocation of element bit or word is performed for PT memory.
Page 371 Section Operation of the Memory Link • PT memory write command Page 371 • Numeral memory table write command Page 372 • Character-string memory table write command Page 373 • Bit memory table write command Page 374 • PT memory batch write (FILL) command Page 375 •...
Page 372 Section Outline of Communications Outline of Communications This section describes the basic communication protocol when using memory link and the program flow for using memory link, taking RS-232C communica- tions using the BASIC language as an example. 4-2-1 Communication Protocol Communication between the host and the PT takes place in accordance with the following protocol.
Page 373 Section Outline of Communications Sometimes multiple responses may be received for one command. • Pattern when the operation at the PT is notified to the host. [Operation at host] [Operation at PT] Notify Command Notify Command Notification reception Transmission 4-2-2 Notes on Using Commands The points that should be observed when using commands are given below.
Page 374 Section Outline of Communications Command Transmission Intervals • If commands are sent too frequently, processing at the PT will not be able to keep pace with them and a communication error (buffer overflow) will occur. • Use the flow control to prevent a buffer overflow. Order of Priority of Input Communication Commands When a reason for input notification arises during processing of a command from the host, the input command is issued only after the ongoing command...
Page 375 Section Commands/Responses Commands/Responses This section describes the commands used with the memory link and their re- sponses. 4-3-1 PT Memory Read Command (Sent from Host to PT) Command Format [ESC] (l1) (l2) (s1) (s2) [CR] Check sum present/absent (1 BCD digit) 0 : Absent 1 : Present 8 : Absent (1 word read)
Page 376 Section Commands/Responses • A maximum of 100 words can be read at one time. • In the response, maximum of 50 words can be returned at one time. If reading of more than 50 words is specified, the response is split into two parts. In this case the first part always contains 50 words of data.
Page 377 Section Commands/Responses Response Format [ESC] Data of 1 word Data of 1 word [CR] to t First numeral memory table number read (4 BCD digits) 0000 to 1999 Number of read tables (2 BCD digits) 01 to 20: 1 to 20 tables to d1 , ..., dn to dn...
Page 378 Section Commands/Responses Reference: The maximum number which can be specified for first character string memory table read depends on the setting for numbers of character string table entries (256/1000/2000) made at the Support Tool. Response Format [ESC] [CR] to t First character string memory table read (4 BCD digits) 0000 to 1999 , d1...
Page 379 Section Commands/Responses Response Format [ESC] [CR] to t First bit memory number table read (4 BCD digits) 0000 to 0999 Number of read tables (2 BCD digits) :100 tables 01 to 99 :1 to 99 tables , d1 , d1 , d1 , ..., dn , dn...
Page 380: Response Format
Section Commands/Responses Check sum present/absent (1 BCD digit) 0 : Absent 1 : Present Check sum (2 hexadecimal digits) Response Format [ESC] [CR] , ..., d Comments of the read screen data file (1 to 28 characters, space code (20H) is inserted in vacant area) Check sum (2 hexadecimal digits) This is always added.
Page 381: D1 1 , D1
Section Commands/Responses 4-3-7 PT Memory Write Command (Sent from Host to PT) Command Format [ESC] (l1) (l2) Data of 1 word Data of 1 word dnm (s1) (s2) [CR] Check sum present/absent, write attribute (1 BCD digit) 0 : Absent, SET attribute 1 : Present, SET attribute 2 : Absent, AND attribute 3 : Present, AND attribute...
Page 382 Section Commands/Responses • AND attribute: The result after executing the AND operation on the present data of the PT and the written data is written. • OR attribute: The result after executing the OR operation on the present data of the PT and the written data is written. •...
Page 383 Section Commands/Responses Check sum (2 hexadecimal digits) This is always added (fixed as 20H). Function • Writes the data of the specified number of numeral memory tables, starting from the specified numeral memory tables. • A maximum of 20 tables can be written at one time. •...
Page 384: The Contents Of Bit Memory Table Are Represented As 1 Bit Data
Section Commands/Responses Reference: The maximum number which can be specified for character string memory table depends on the setting for numbers of character string table entries (256/1000/2000) made at the Support Tool. However, it is not possible to write to character string memory table of numbers higher than No.500 since they are used only as a reading area.
Page 385: Specified Bit Memory Table
Section Commands/Responses Reference: The maximum number which can be specified for bit memory table depends on the setting for numbers of bit memory table entries (256/1000) made at the Sup- port Tool. Response Only if Yes is set for the Response memory switch, the response indicated below is returned on normal completion.
Page 386 Section Commands/Responses to d Data to be written (1 to 4 hexadecimal digits) 0 to FFFF It is possible to omit initial zeroes so that there are less than 4 digits. Check sum (2 hexadecimal digits) If m is 0, omit this setting. Response Only if Yes is set for the Response memory switch, the response indicated below is returned on normal completion.
Page 387 Section Commands/Responses • If settings are omitted for both the first cleared numeral memory table number and the final cleared numeral memory table number, all the numeral memory tables are cleared. It is not possible to omit just one of these settings. •...
Page 388 Section Commands/Responses 4-3-14 Bit Memory Table Clear Command (Sent from Host to PT) Command Format [ESC] (b1) (b2) (b3) (b4) (e1) (e2) (e3) (e4) (s1) (s2) [CR] Check sum present/absent (1 BCD digit) 0 : Absent 1 : Present to b First cleared bit memory table number (4 BCD digits) 0000 to 0999 to e...
Page 389 Section Commands/Responses The changed bit in the contents of the word after the change is set to 1. Check sum (2 hexadecimal digits) This is always added. Response Format None Function • When the status of a touch switch changes because it has been touched or released, notifies the change of status to the host.
Page 390 Section Commands/Responses Check sum (2 hexadecimal digits) This is always added. Response Format None Function • In accordance with operations at the PT, such as numeral setting and copying of memory tables, notifies the host that a numeric value has been input to the numeral memory table.
Page 391: Dn 2 , Dn 3 , Dn
: No.210 Input character string data (hexadecimal) : OMRON Check sum (hexadecimal) : 0FH Here, it is ascertained that OMRON has been input to character string memory table No.210. 4-3-18 Direct Area Changing Notify Command (Sent from PT to Host) Command...
Page 392 Section Commands/Responses digits) 0 to FFFF Area type of the changed direct area Contents to be changed PT control area Screen number PT notify area PT status notify bit Window control area Window number Window X coordinate Window Y coordinate It is possible to omit initial zeroes so that there are less than 4 digits.
Page 393 Section Commands/Responses Command [ESC] [CR] First word number of PT notify area : 110CH Number of changed words in PT control area : 1CH PT status notify bit (hexadecimal) : 8080 (PT operation status bit, screen printing bit: ON) Check sum : AC Reference: When NT30/620 compatible mode is being used, the current screen number oc- cupies the first word of the PT status notify area and the words containing the...
Page 394: Dn1 Dn2 Dn3 Dn4
Section Commands/Responses 4-3-19 PT Memory Changing Notify Command (Sent from PT to Host) Command Format [ESC] [CR] to c First word number of PT memory (4 BCD digits) 0000 to 9999 Number of words in direct area (2 BCD digits) 01 to 50 , d1 , d1...
Page 395 Section Commands/Responses Normally, data part is 00, however, it is 10 (31H, 30H) when serial port B is used. (see below) Function • Changes the operation mode of PT from RUN mode to transmit mode by the instruction from the host. •...
Page 396 Section Commands/Responses 01 : Invalid command A non-exist command has been used. 02 : Command length error The command length differs from the stipulated length. 03 : Range error The word/table number is outside the setting range. 04 : Check sum present/absent specification error A value other than those stipulated has been set for the check sum present/absent specification.
Page 397 The Online Trans- fer Specifications are available separately and provide detailed operating in- structions. Contact your OMRON representative listed for more information. 4-4-1 Online Transfer Processes The following processing can be performed with the memory link online transfer function.
Page 398 Item Condition Support Tool NT-ZJ3PC1-EV4 NT-series Support Tool for Windows (Ver. 4.1) PT model NT31, NT31C, NT631, or NT631C (V1 or later) PC type Memlink (memory link) (Supports direct access) Screen data file type mmi (Memory Map Image) format Usable memory area...
Page 399 Section Memory Link Online Transfer Function 2. Automatically Switch The PT’s screen data can be changed at the scheduled times each day to dis- PT Screen Data at play the regular operating screen or maintenance screen. Certain Times 8 AM Screen Change Host b) Start regular operation with...
Page 400 SECTION 5 Function Applications This section presents a collection of simple practical examples that will give you hints on how to make best use of the functions of the PT. Please use these examples for reference when using the PT. Examples of Actual Applications of Direct Access .
Page 401: Continually Monitoring A Specific Pc Bit And Displaying An Alarm When It Comes On
Section Examples of Actual Applications of Direct Access Examples of Actual Applications of Direct Access Some examples that will give you an idea of how to actually apply the functions of the PT such as those indicated below are presented here. •...
Page 402 Section Examples of Actual Applications of Direct Access Suggestions • In order to display TEMPERATURE ABNORMAL with no frame, make its background color the same as that of other screens ( Alarm List , page 173). • So that TEMPERATURE ABNORMAL is displayed regardless of which screen is currently displayed, display the overlapping screens created in (4) at the PT ( Overlapping Screens , page 36).
Page 403 Section Examples of Actual Applications of Direct Access Example: Displaying a screen that shows details of the error when the TEMPERATURE ABNORMAL alarm message is pressed. 192_C 165_C 183_C TEMPERATURE ABNORMAL 250_C 180_C 175_C Error location displayed in red Alarm list 1, 2, 3...
Page 404 Section Examples of Actual Applications of Direct Access Example: Displaying a screen with details of the times at which alarms occurred in the past when the TEMPERATURE ABNORMAL alarm message is pressed. TEMPERATURE ABNORMAL 13:12 CONVEYOR STOPPED 11:47 TEMPERATURE PROCESS 3 STOPPED 11:23 ABNORMAL Alarm list...
Page 405: Changing Display Contents In Accordance With Pc Bit Status
Section Examples of Actual Applications of Direct Access Example: Displaying the corrective action (help information) when the alarm message TEMPERATURE ABNORMAL is pressed. Library data Inspect ... TEMPERATURE ABNORMAL TEMPERATURE ABNORMAL Alarm list 1, 2, 3... 1. Set TEMPERATURE ABNORMAL as the initial value for any character string memory table.
Page 406 Section Examples of Actual Applications of Direct Access 1, 2, 3... 1. Create figures depicting the valve when open (A in the figure below) and the valve when closed (B in the figure below), either by using library data (fixed display graphic) or image data (comprised of dots).
Page 407: Displaying Online Help With A Touch Switch
Section Examples of Actual Applications of Direct Access 1, 2, 3... 1. Create figures depicting the automatic guided vehicle with library data (fixed display graphics) or image data (composed of dots). If there is a figure with a different orientation, create it separately. 2.
Page 408: Continually Monitoring A Specific Pc Bit And Displaying A Message On A Window When It Comes On
Section Examples of Actual Applications of Direct Access • Function: Input key – keyboard • Keyboard screen No.: Numbers of keyboard screens created in (1) to • Action type: Open • Guide character display:Check mark set, fixed character string, guide characters HELP By setting the action type of the touch switch on the base screen as Toggle, the window can be opened and closed from the base screen.
Page 409: Continuously Reading Out The Contents Of A Pc Word And Displaying A Trend Graph By Backtracking
Section Examples of Actual Applications of Direct Access 5. Create the following ladder program so that the window is opened from the host when the bit comes ON. (Word numbers are not shown in the ladder program below, set the value when programming.) error bit @MOV(21) Window screen No.
Page 410 Section Examples of Actual Applications of Direct Access • Touch switches for logging: Check marks set for all • Touch switches for display function: Check marks set for all Regardless of whether or not the trend graph is displayed, reading of the contents of the word starts at the same time as PT operation is started.
Page 411: Displaying The Day Of The Week Using The Clock Data In The Pt
Section Examples of Actual Applications of Direct Access • Stop touch switch Stops data sampling. • Restart (Continue) touch switch Restarts data sampling when it has been stopped. • Display Clear (Clear display) touch switch Clears the currently displayed trend graph, then starts drawing the graph from the new status (past records are retained).
Page 412: Enabling And Disabling A Touch Switch With An Interlock Bit
Section Examples of Actual Applications of Direct Access • If character string memory tables No. 0 to No. 6 are used for other applications at the same time as they are used to display the day of the week. 1, 2, 3... 1.
Page 413: Scaling The Contents Of A Pc Word And Displaying The Result
Section Examples of Actual Applications of Direct Access • Bits in the PT status control area can be turned OFF/ON to control the following PT operations as groups. • Enable/disable the opening of windows (bit 6) • Enable/disable numeral and character string inputs (bit 5) •...
Page 414 Section Examples of Actual Applications of Memory Link Examples of Actual Applications of Memory Link Some examples that will give you an idea of how to actually apply the memory link are presented below. • Switching screen by the operation at PT control area Page 405 •...
Page 415 Section Examples of Actual Applications of Memory Link • Response [ESC] [CR] • Explanation Format of response is fixed. Hint • In the same way, by changing the status of PT control bit, buzzer can be beeped or backlight ON/OFF status can be controlled from the host. See page •...
Page 416 Section Examples of Actual Applications of Memory Link • Explanation • Numeral memory table number: 142 • Input numeral: 00000000F0 (240 in decimal) • Check sum: It is ascertained that 240 is input to numeral memory table No.142. With numeral input notify command, input numeral data is expressed as binary.
Page 417 SECTION 6 Troubleshooting and Maintenance This section describes the action to take when PT errors occur. Troubleshooting ............Responding to Displayed Error Messages .
Page 418 The PT model setting and direct Using the PT Configuration settings of the Support connection setting at the Support Tool, set the PT model and direct connection Tool do not match the NT31/NT31C settings that match the NT31/NT31C or or NT631/NT631C. NT631/NT631C.
Page 419 The system program installed in the The Device Monitor function can be used only when PT is for a PC maker other than the PT is connected to an OMRON PC. Refer to OMRON. Version Display in section 6 in the Setup Manual and check the system program type.
Page 420 Section Troubleshooting PT Symptoms Cause Remedy A numeral/text display is Since the memory table is allocated When the contents of the memory table are set as a not displayed correctly, to the host memory, the display is fixed value, do not allocate the memory table to the nothing is displayed for a updated in accordance with the host.
Page 421 Section Troubleshooting PT Symptoms Cause Remedy Cannot input numeric The upper/lower (max./min.) limit Check the screen data’s upper/lower (max./min.) values check for numeric value input is in limit check setting for numeric value input, and effect. correct it if necessary (for numeric key type, refer to page 183;...
Page 422 Screen Data again. Setup Manual .) - Transmission of screen data was interrupted. If the problem persists, contact your OMRON service center. - Illegal data has been written to the screen data memory. [No Screen Data] No screen data is registered.
Page 423 Replacing the Backlight in section 7 in the Setup Manual . Contact your OMRON service center if the problem persists. [Memory Switch Corrupted] The memory switches have been...
Page 424 Section Responding to Displayed Error Messages 6-2-2 Errors Occurring during Operation and Their Remedies The table below shows the errors that can occur during operation of the PT and their remedies. Operational Errors (Other than Device Monitor Errors) Message Cause Remedy [Address Setting Error] The host side allocated words...
Page 425 (memory for clearing the screen data or transmitting screen Flash Memory I/O Error. storing screen data) has reached data several times, contact your OMRON If this happens frequently, Flash the end of its service life. service center. Memory may be broken.
Page 426 Download System Program and program) has reached its life. attempting to delete the system program several times, contact your OMRON service center. (Refer to Clearing/Installing the System Program in section 6 in the Setup Manual .) Unable to download System...
Page 427 Section Responding to Displayed Error Messages 6-2-5 Communication Errors and Their Remedies This section describes the errors relating to communication that can occur dur- ing operation, and their remedies. Operation When a When a communication error occurs, the error message is displayed at the PT, Communication Error and the buzzer sounds, provided the setting made for Buzzer Sound in the Sys- Occurs...
Page 428 Section Responding to Displayed Error Messages Probable Causes and The remedies to take in accordance with the displayed cause are indicated in the Remedies table below. Error Details Displayed Probable Cause Remedy Parity Error Communication parameters/ Check if the settings at the host for parity bit, frame conditions set incorrectly.
Page 429 Section Responding to Displayed Error Messages Error Details Displayed Probable Cause Remedy Data Over Flow Error Communication command from the Set flow control method in the host. host is too long. Increase transmission interval. (With memory link) Command transmission to the host Check the communication cable.
Page 430 8 graphs per screen data file Broken line graphs One frame per screen (max. of 8 frames on an overlapping screen), 256 graphs per frame, 320 points per graph (NT31/NT31C) or 512 points per graph (NT631/NT631C) Graphic displays (fixed Can be displayed wherever required...
Page 431 Variable-size pictographs Size: Min. 8 8 dots 320 240 dots max. for NT31/NT31C, 640 480 dots max. for NT631/NT631C The size can be set as required in 8-dot units. Enlarged display, smoothing processing, and display attributes such as inverse and flash cannot be set.
Page 432 Display colors NT31, NT631: 2 colors (black, white) NT31C, NT631C: 8 colors (black, blue, red, magenta, green, cyan, yellow, white) Color specification Foreground color, background color, boundary color (line color) *1: Usable only when ISO8859-1 font type is selected at the Support Tool.
Page 433 Appendix A Specifications Element Restriction on Read Data Analogue meter One numeral memory table When numeral memory tables are designated for each of the –100%,0%, and 100% settings for each graph line, one numeral memory table is read for each of these settings.
Page 434 Appendix A Specifications Element Element Coefficient Alarm lists 1 + number of display lines + number of dedicated touch switches If image/library data is displayed, the total is increased by another 64. Alarm histories 1 + number of display lines + number of dedicated touch switches If image/library data is displayed, the total is increased by another 64.
Page 435 Appendix A Specifications Item Specifications Calendar and clock function - Displays the current time in accordance with the built-in clock - Displayed and set with Calendar Check in the MAINTENANCE MODE menu Programming Console function Executes functions equivalent to those of a Programming Console (model C200H-PRO27-E) with C series CPM1, CPM1A, CPM2A, CPM2C, CQM1 (-EV1 only), CQM1H, C200HX/HG/HE(-Z)E, and SRM1 (C02-V2 only).
Page 436 The screen data of the NT31/NT31C and NT631/NT631C does not have complete downward compatibility with earlier PT models. Consequently, when the data for an earlier PT model is converted for use in an NT31/NT31C or NT631/NT631C, partial modification may be necessary.
Page 437 NT31/NT31C and NT631/NT631C are described here. For details of the differences between different versions of the NT31/NT31C and NT631/NT631C, refer to Differences between PT models without the -V1 suffix and PT mo - dels with -V1 (page 434) or Differences between -V1 and -V2 PTs (page 436).
Page 438 Possible Not possible A parent screen is deleted after the data conversion, such as from an screens NT30/NT30C or NT620S/NT620C/NT625C to a NT31/NT31C or NT631/NT631C. Use a switch screen touch switch instead. Overlap- A window or keyboard screen can be specified as a child screen.
Page 439 Simultaneous setting of recording in an alarm history and screen switching is possible. switching is not possible (if NT30/NT30C data in which simultaneous memory operation is specified is converted for use with an NT31/NT31C, only table set- the alarm history recording operation is performed). ting...
Page 440 Memory link only Shared with OMRON/Memory link (-V1 and later versions) program memory link Screen OMRON screen data (data area allocation only, no allocation check) Memory link screen data (Allocation check is possible.) data for memory link Device Not available Can be used to switch the PC’s operating mode, display/change...
Page 441 Appendix B Compatibility with Screen Data of Other PT Models Differences between PT models without the -V1 Suffix and PT models with -V1 Item NT31/NT31C and NT631/NT631C (without -V1) NT31/NT31C and NT631/NT631C (with V1) Drawing Display Object Types Display Object Types...
Page 442 Appendix B Compatibility with Screen Data of Other PT Models Item NT31/NT31C and NT631/NT631C (without -V1) NT31/NT31C and NT631/NT631C (with V1) S Only 1 window can be displayed S Up to 3 screens can be displayed (1 global window, 2 local...
Page 443 Appendix B Compatibility with Screen Data of Other PT Models Differences between -V1 and -V2 PTs Item NT31/NT31C and NT631/NT631C (V1 versions) NT31/NT31C and NT631/NT631C (V2 versions) Screen dis- No display No display play 1 to 3999 : Normal, window, and overlapping screens...
Page 444 Support Tool as follows. • System programs for NT31-ST121j-E/NT31C-ST141j-E: System Program Ver. 1.0j (System programs supplied with NT-ZJ3AT1-EV2/ZJCAT1-EV2) • System programs for NT31-ST121j-EV1/NT31C-ST141j-EV1: System Program Ver. 2.0j or 2.1j (System programs supplied with NT-ZJ3AT1-EV3/ZJCAT1-EV3) • System programs for NT31-ST121j-EV2/NT31C-ST141j-EV2: System Program Ver. 3.0j...
Page 445 For details of the relationship with the screen data created using the Support Tool, refer to NT-series Support Tool for Windows (Ver. 4.1) Operation Manual. Combining a -V1 Version and Version without a -Vj Suffix Software Software Hardware NT31-ST121j-E NT31-ST121j-EV1 NT31C-ST141j-E NT31C-ST141j-EV1 NT631-ST211j-E NT631-ST211j-EV1 NT631C-ST141j-E NT631C-ST141j-EV1 NT631C-ST151j-E NT631C-ST151j-EV1 System program Ver.
Page 446 Appendix B Compatibility with Screen Data of Other PT Models Combining a -V2 Version and Version without a -Vj Suffix Software Software Hardware NT31-ST121j-E NT31-ST121j-EV2 NT31C-ST141j-E NT31C-ST141j-EV2 NT631-ST211j-E NT631-ST211j-EV2 NT631C-ST141j-E NT631C-ST141j-EV2 NT631C-ST151j-E NT631C-ST151j-EV2 System program Ver. 1.0j The following functions cannot be used...
Page 447 Support Tool’s PT environment settings). The default setting converts screen data with the highest level of com- patibility. • Even though a newer NT31, NT31C, NT631, or NT631C PT is operating in NT30/620 compatible mode, it still retains all of its new functions. The enhanced functions can be applied to screen data converted from an earlier Functional Changes when Using NT30/620 Compatible Mode This section describes the changes in PT functions resulting from the NT30/620 compatible mode.
Page 448 Image and library codes cannot be inserted in character strings. codes in strings Scrolling The size and color from the earlier PTs can be used as-is. (Editing is The size and color are changed to NT31/NT31C or NT631/NT631C alarm list not possible.) defaults. (Editing is not possible.) and history...
Page 449 The remaining differences are listed below. The following differences are related to reuse of screen data and the user program only. The added capabilities of the NT31, NT31C, NT631, and NT631C are not listed. For details on added capabilities, refer to Improvements from Earlier Models on page 430.
Page 450 Appendix C NT30/620 Compatible Mode Reference: Appendix A of the Support Tool’s operation manual describes the editing that may be required when converting data. The following items may need to be edited. Refer to the Support Tool’s operation manual as necessary. S Editing Related to Continuous Screens S Editing Related to Overlapping Screens S Editing Related to the Display Ranges of Window/Keyboard Screens...
Page 451 Appendix D PC Memory Maps OMRON C-series PC, SRM1 Memory Map Host Links, 1:1 NT Links, and 1:N NT Links Extended Timer/ Data Counter Data Relay Area Holding Auxiliary Link Relays Memory Area Present Memory (CIO) Relays (HR) Relays (AR)
Page 452 Appendix D PC Memory Maps OMRON CVM1 and CV-series PC Memory Map Host Links Extended Timer/Count Holding Data Relay Area Auxiliary Link Relays er Present Area Relays*1 Memory (Current (CIO) Relays (AR) (LR) Values (HR) (DM) Bank) (TIM/CNT) CV500 00000 to...
Page 453 Appendix E Keycode Tables ISO 8859/1 Ð ð ’ À à Space Space NBSP ¡ Á Ñ á ñ Space Space ” ¢ Â Ò â ò Space Space £ Ã Ó ã ó Space Space ¤ Ä Ô ä ô...
Page 454 Appendix E Keycode Tables MS-DOS CP437 α ≡ ’ Ç É á β ± ü æ Í Γ ≥ ” é Æ ó π ≤ â ô ú Σ ⌠ ä ö ñ σ ⌡ à ò Ñ µ ÷ &...
Page 455 Differences between alarm list and alarm history, Bit memory tables, Differences between PT models without ”V1” and PT models with ”V1”, Broken line graphs, Differences between the NT30/NT30C and the NT31/NT31C, Buzzer (screen attributes), Buzzer function, Direct area changing notify command, Direct connection function,...
Page 456 Index Enlarged display, Lamps, Error messages, Library data display, Errors in the system installer mode and their remedies, Line scrolling touch switches (alarm list/history), Errors occurring at start of operation, Load Local1, Errors occurring during operation, Load Local1 (Keyboard) (screen number), Errors occurring on screen data initialization and transmission, Load Local2, Load Local2 (screen number),...
Page 457: Screen Data Comment Read Command
Polyline, Restrictions specific to character string input when using temporary input fields, Pop–up window/keyboard function, Resume function, Principal functions of NT31/NT31C, “Return to previous screen” designation, Print function, Printer operating status (PT status notify bits), Printing a screen image, Printing display history and alarm history record data,...
Page 458 Index Short intermittent buzzer (PT status control bits), Touch switch input notify command, Size and display position of a window, Touch switches, Smoothing, Transparent, Sounding the buzzer, Transparent display, Special features, Trend graphs, Specifying the objective numeral setting input field using the Turning off the screen, input key –...
Page 459 Revision History A manual revision code appears as a suffix to the catalog number on the front cover of the manual. Cat. No. V064-E1-2 Revision code The following table outlines the changes made to the manual during each revision. Page numbers refer to the previous version.

This manual is also suitable for:

Nt31 Nt631 Nt631c

Omron NT31C Reference Manual

Table of Contents

Section 4-3

-1 Examples of Actual Applications of Direct Access

Quick Links

Chapters

Related Manuals for Omron NT31C

Summary of Contents for Omron NT31C

This manual is also suitable for:

Table of Contents
