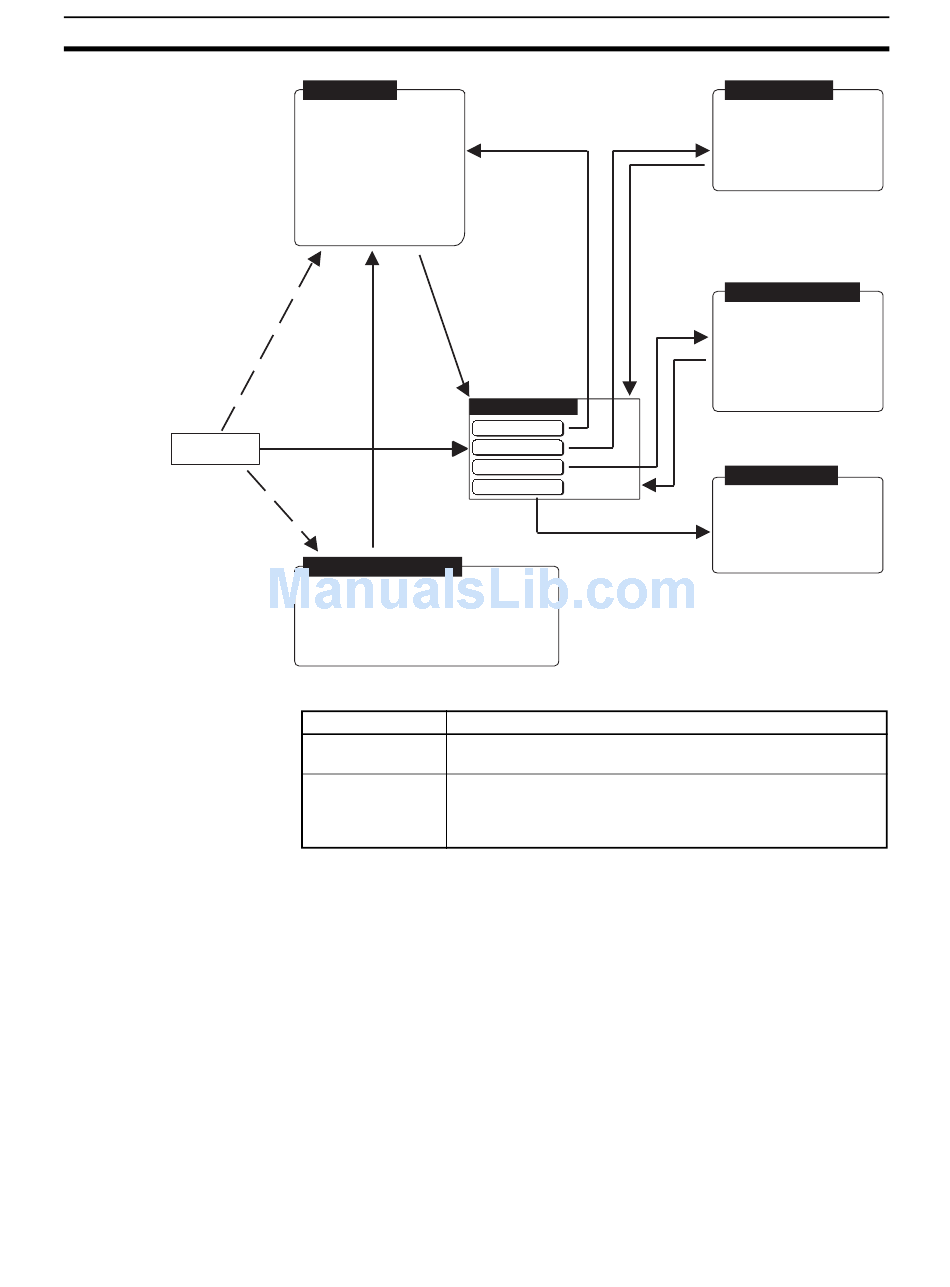

Operation Modes and the System Menu
When system
settings and screen
data registration have
been completed.
Power ON
If there is no system
program, or if the
settings for data
control are changed...
Items in the System Menu
[RUN Mode]
This is the mode in which
the NT631/NT631C
operates.In this mode the
NT631/NT631C can be
controlled from the host,
and various display and
I/O operations are
possible.
To change system
settings or screen
data contents.
[System Installer Mode]
In this mode, the system program of the
NT631/NT631C is installed, display of
the System Menu is enabled or disabled,
and screen data changes are enabled
and disabled, among other operations.
The items displayed in the system menu and their functions are as follows.
Menu Item
Quit
Transmit Mode
To change system
settings or screen
data contents.
SYSTEM MENU
Quit
Transmit Mode
Maintenance Mode
Expansion Mode
Clear the System Menu screen and return to the RUN mode
screen.
Display the Transmit Mode screen to allow transmission for
screen data between the Support Tool and the NT631/NT631C.
For details on transmission of screen data, refer to 6-6 Transmit-
ting the Screen Data.
Section 6-3
[Transmit Mode]
In this mode, screen
data and other data are
transmitted between the
Support Tool and the
NT631/NT631C.
[Maintenance Mode]
In this mode,
NT631/NT631C
maintenance operations,
such as initialization of
the memory, checking
settings, and the I/O
check, are executed.
[Expansion Mode]
In this mode, the
Programming Console
function is used, or check
the version of system
program.
