Displays

Fixed Displays
12

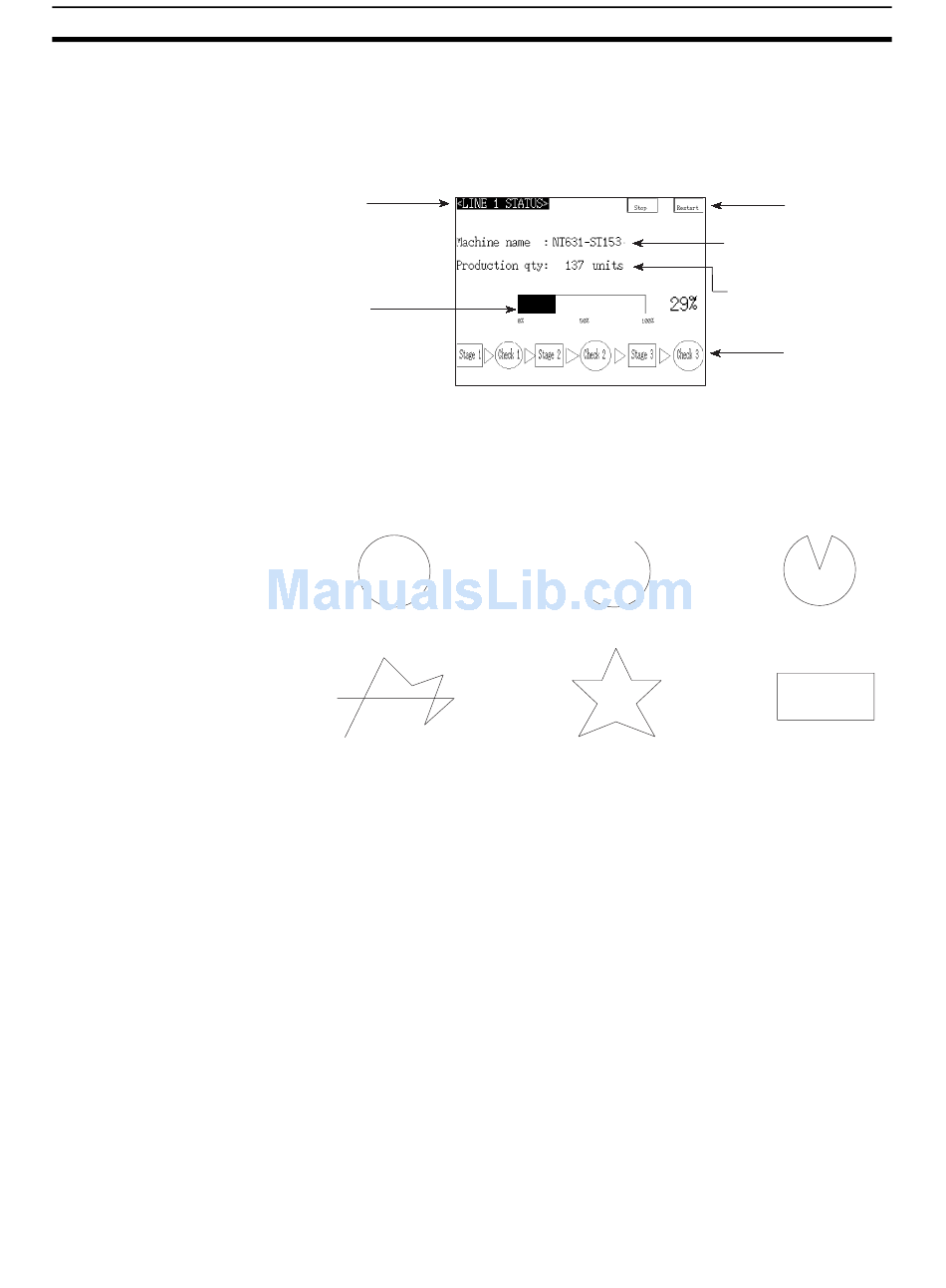

The NT631/NT631C can display various kinds of elements such as charac-
ters, numeric values, graphs, lamps, and touch switches, on a screen. The
screen data displayed by the NT631/NT631C are created by using the Sup-
port Tool at a personal computer.
Characters
(fixed display)
Bar graph
Characters and various graphics (circles, circular arcs, sectors, polylines,
polygons and rectangles) whose display does not have to be changed, and
mark data, image data, and library data that has already been registered, can
be written directly onto the screen.
Circle
Polyline
* A continuous straight line
with up to 256 points can
be drawn.
Marks are graphics comprising 16 by 16 dots that can be used as characters.
They can be used as custom characters within character strings.
Image data are graphics comprising any required area of dots. They are regis-
tered in advance and as many as required can be displayed at any position on
the screen.
Windows bit map (BMP) data can be used for images.
There is a two-color mode, in which the display color and background color of
the image are specified when it is registered in a screen, and an eight-color
mode in which colors are assigned to the image in advance.
Since image data is composed of dots, it requires a large data size but offers
great powers of expression.
Library data are combinations of fixed display graphics registered as a single
graphic. They are registered in advance and as many as required can be dis-
played at any position on the screen.
Since it is generated by combining graphics, library data has a small data
size.
Arc
Polygon
* A polygon with up to
255 vertices can be
drawn.
Section 1-2
Touch switches
Characters
(character string display)
Numeric values
(numeral display)
Lamps
Sector
Rectangle
