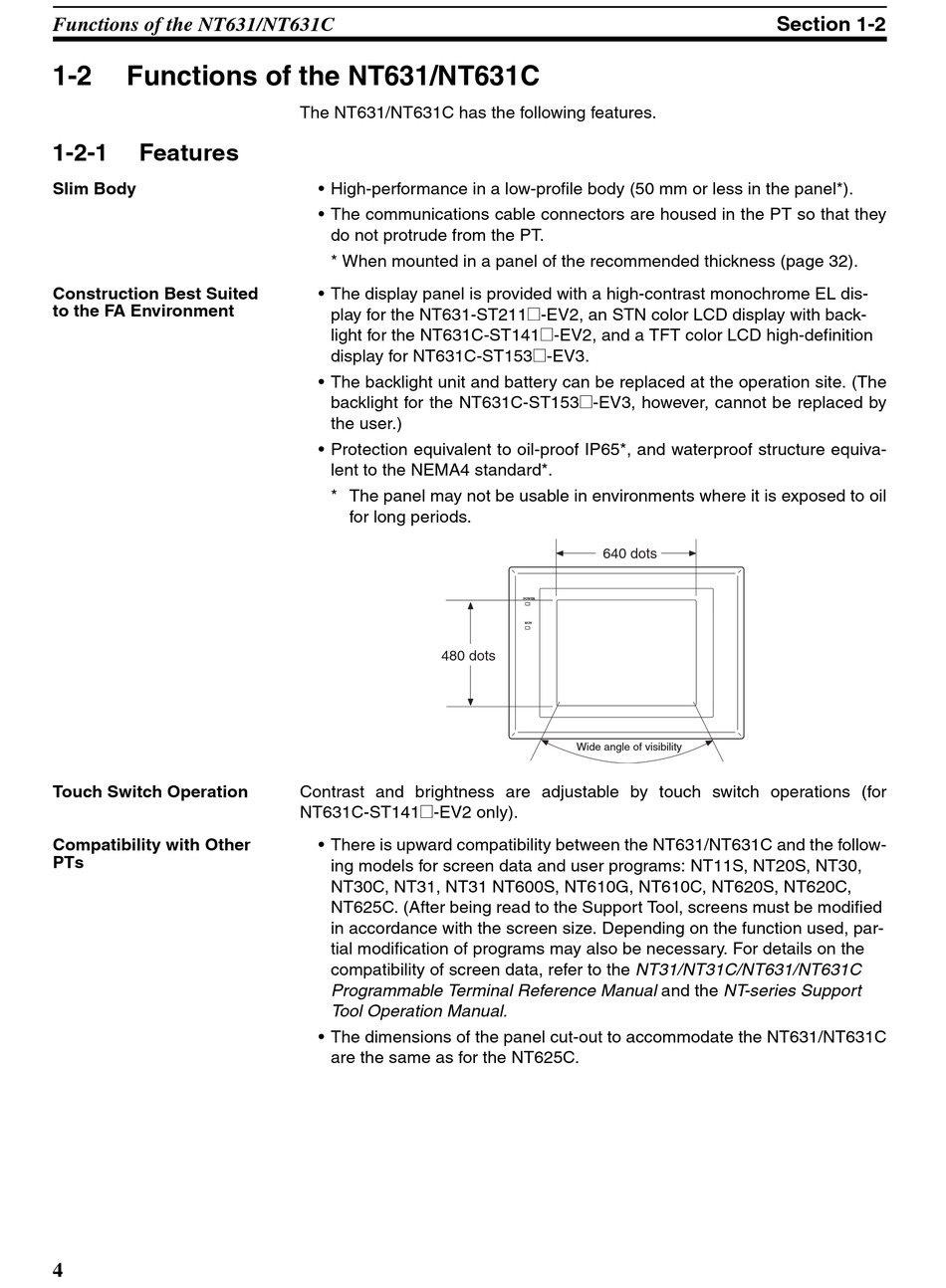

Functions of the NT631/NT631C

1-2

Functions of the NT631/NT631C

1-2-1

Features

Slim Body
Construction Best Suited
to the FA Environment
Touch Switch Operation
Compatibility with Other
PTs
4
The NT631/NT631C has the following features.
• High-performance in a low-profile body (50 mm or less in the panel*).
• The communications cable connectors are housed in the PT so that they
do not protrude from the PT.
* When mounted in a panel of the recommended thickness (page 32).
• The display panel is provided with a high-contrast monochrome EL dis-
play for the NT631-ST211@-EV2, an STN color LCD display with back-
light for the NT631C-ST141@-EV2, and a TFT color LCD high-definition
display for NT631C-ST153@-EV3.
• The backlight unit and battery can be replaced at the operation site. (The
backlight for the NT631C-ST153@-EV3, however, cannot be replaced by
the user.)
• Protection equivalent to oil-proof IP65*, and waterproof structure equiva-
lent to the NEMA4 standard*.
* The panel may not be usable in environments where it is exposed to oil
for long periods.
480 dots
Contrast and brightness are adjustable by touch switch operations (for
NT631C-ST141@-EV2 only).
• There is upward compatibility between the NT631/NT631C and the follow-
ing models for screen data and user programs: NT11S, NT20S, NT30,
NT30C, NT31, NT31 NT600S, NT610G, NT610C, NT620S, NT620C,
NT625C. (After being read to the Support Tool, screens must be modified
in accordance with the screen size. Depending on the function used, par-
tial modification of programs may also be necessary. For details on the
compatibility of screen data, refer to the NT31/NT31C/NT631/NT631C
Programmable Terminal Reference Manual and the NT-series Support
Tool Operation Manual.
• The dimensions of the panel cut-out to accommodate the NT631/NT631C
are the same as for the NT625C.
640 dots
POWER
RUN
Wide angle of visibility
