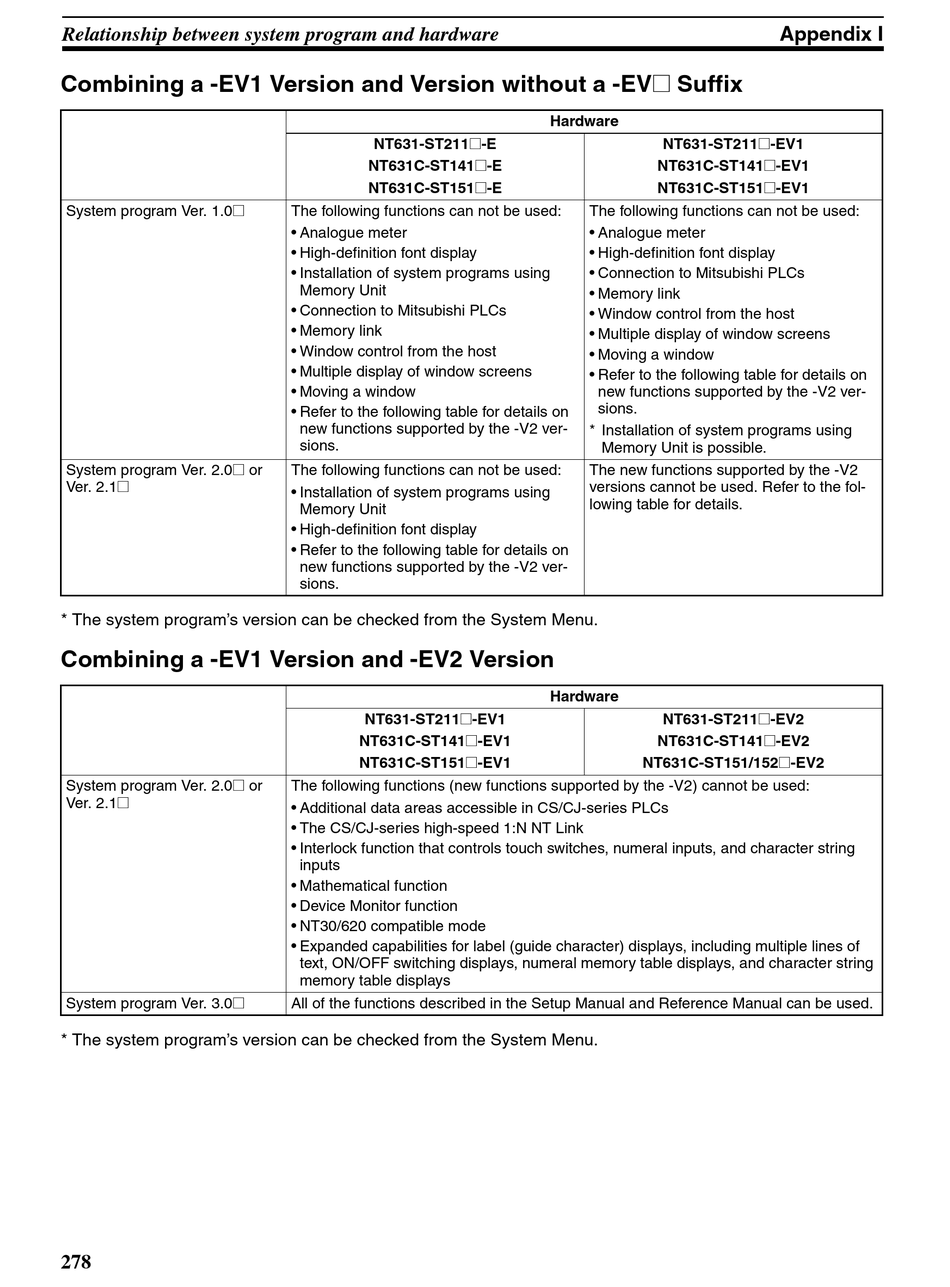

Relationship between system program and hardware
Combining a -EV1 Version and Version without a -EV@ Suffix
System program Ver. 1.0@
System program Ver. 2.0@ or
Ver. 2.1@
* The system program's version can be checked from the System Menu.
Combining a -EV1 Version and -EV2 Version
System program Ver. 2.0@ or
Ver. 2.1@
System program Ver. 3.0@
* The system program's version can be checked from the System Menu.
278
NT631-ST211@-E
NT631C-ST141@-E
NT631C-ST151@-E
The following functions can not be used:
• Analogue meter
• High-definition font display
• Installation of system programs using
Memory Unit
• Connection to Mitsubishi PLCs
• Memory link
• Window control from the host
• Multiple display of window screens
• Moving a window
• Refer to the following table for details on
new functions supported by the -V2 ver-
sions.
The following functions can not be used:
• Installation of system programs using
Memory Unit
• High-definition font display
• Refer to the following table for details on
new functions supported by the -V2 ver-
sions.
NT631-ST211@-EV1
NT631C-ST141@-EV1
NT631C-ST151@-EV1
The following functions (new functions supported by the -V2) cannot be used:
• Additional data areas accessible in CS/CJ-series PLCs
• The CS/CJ-series high-speed 1:N NT Link
• Interlock function that controls touch switches, numeral inputs, and character string
inputs
• Mathematical function
• Device Monitor function
• NT30/620 compatible mode
• Expanded capabilities for label (guide character) displays, including multiple lines of
text, ON/OFF switching displays, numeral memory table displays, and character string
memory table displays
All of the functions described in the Setup Manual and Reference Manual can be used.
Hardware
NT631-ST211@-EV1
NT631C-ST141@-EV1
NT631C-ST151@-EV1
The following functions can not be used:
• Analogue meter
• High-definition font display
• Connection to Mitsubishi PLCs
• Memory link
• Window control from the host
• Multiple display of window screens
• Moving a window
• Refer to the following table for details on
new functions supported by the -V2 ver-
sions.
* Installation of system programs using
Memory Unit is possible.
The new functions supported by the -V2
versions cannot be used. Refer to the fol-
lowing table for details.
Hardware
NT631-ST211@-EV2
NT631C-ST141@-EV2
NT631C-ST151/152@-EV2
Appendix I
