Connecting to the Host's RS-232C Port
Connection between
NT631/NT631C Units (RS-
422A)
88

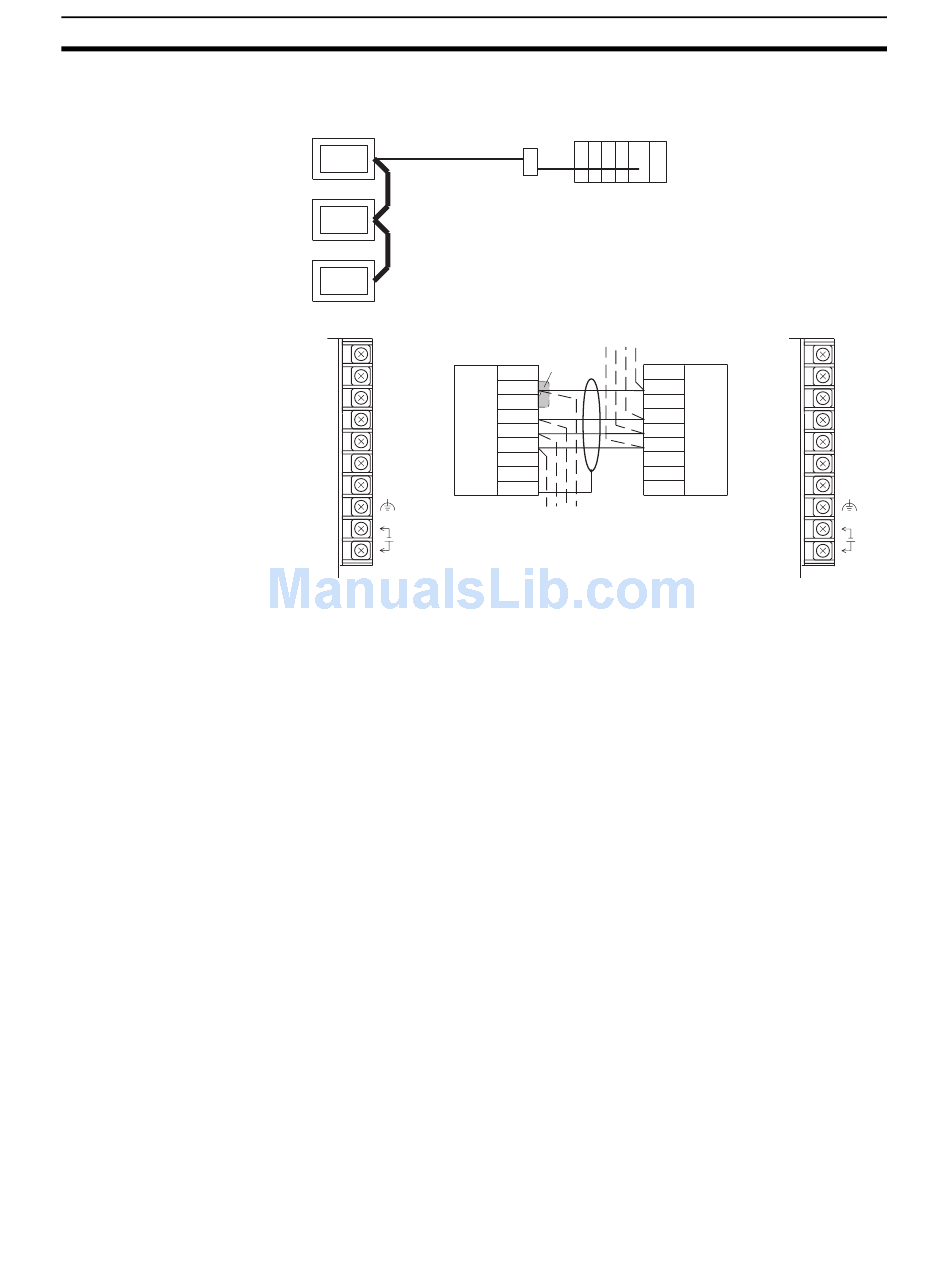

The relay terminal board is not included in the figure below. Insert a relay ter-
minal board so as to achieve the wiring configuration indicated below.
NT631/NT631C
RS-422A
:
RDA NT631/NT631C side
TRM
RDB
RS-422A/
485
SDA
terminal
block
SDB
RSA
RSB
24V
+DC
* Short TRM and RDA terminals of the NT631/NT631C at the end of the RS-
422A cable (* marked in the above figure) using the short-circuit tool sup-
plied with the NT631/NT631C.
For details on handling shield wires, refer to 5-2-8 Handling the Shield on RS-
422A/485 Cables on page 125.
