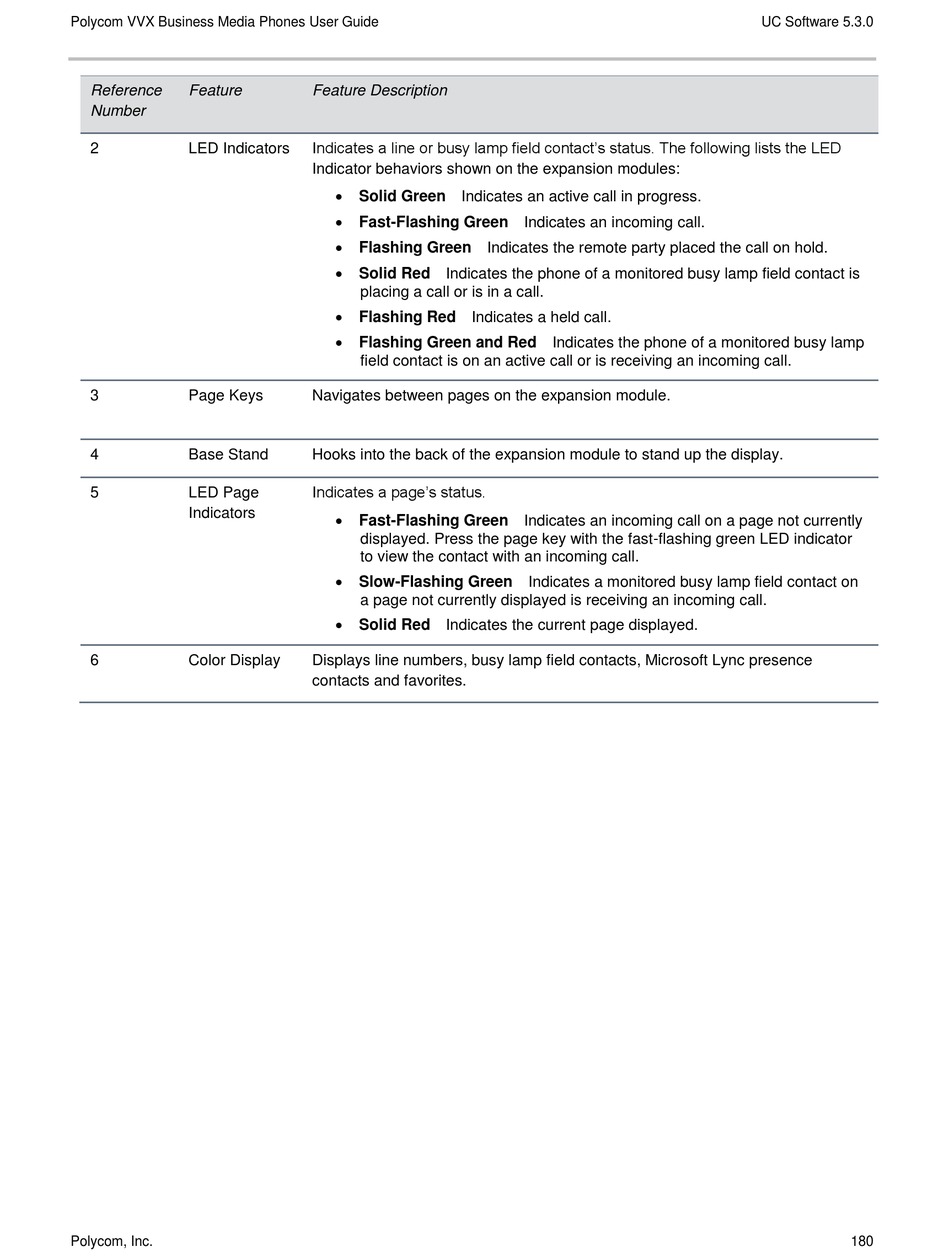

Polycom VVX Business Media Phones User Guide
Reference Feature
Number
2 LED Indicators
3 Page Keys
4 Base Stand
5 LED Page
Indicators
6 Color Display
Polycom, Inc.
Feature Description
Indicates a line or busy lamp field contact's status. The following lists the LED
Indicator behaviors shown on the expansion modules:

Solid Green Indicates an active call in progress.

Fast-Flashing Green Indicates an incoming call.

Flashing Green Indicates the remote party placed the call on hold.

Solid Red Indicates the phone of a monitored busy lamp field contact is
placing a call or is in a call.

Flashing Red Indicates a held call.

Flashing Green and Red Indicates the phone of a monitored busy lamp
field contact is on an active call or is receiving an incoming call.
Navigates between pages on the expansion module.
Hooks into the back of the expansion module to stand up the display.
Indicates a page's status.

Fast-Flashing Green Indicates an incoming call on a page not currently
displayed. Press the page key with the fast-flashing green LED indicator
to view the contact with an incoming call.

Slow-Flashing Green Indicates a monitored busy lamp field contact on
a page not currently displayed is receiving an incoming call.

Solid Red Indicates the current page displayed.
Displays line numbers, busy lamp field contacts, Microsoft Lync presence
contacts and favorites.
UC Software 5.3.0
180
