Polycom VVX Business Media Phones User Guide
To generate and download the directory card using the Web Configuration Utility:
1 In your Internet browser, enter your phone's IP address into your browser's address bar.
To find your phone's IP address, navigate to Settings > Status > Platform > Phone.
2 Log in as a User, enter the default password 123, and click Submit.
3 Click Utilities > EM Directory.

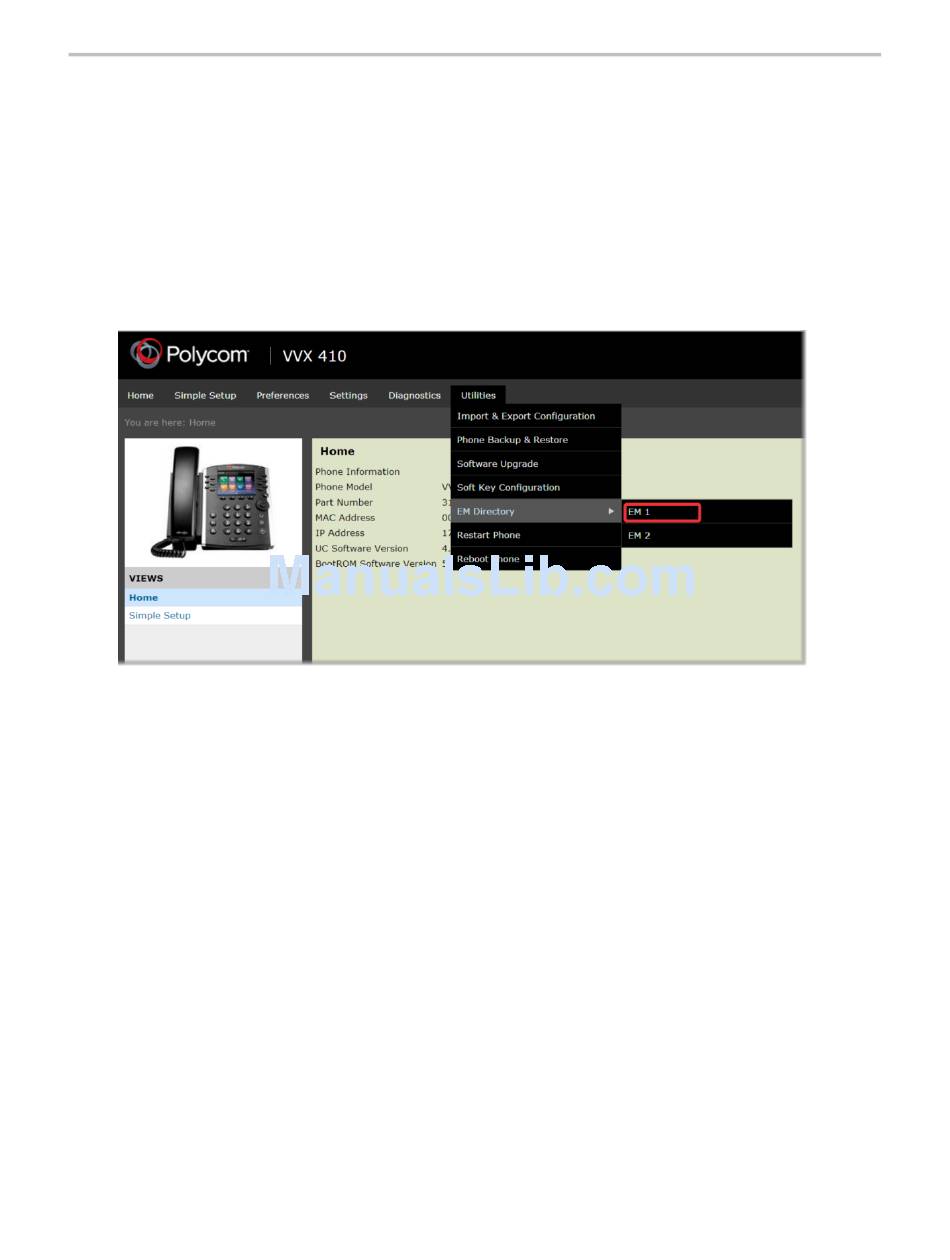

4 Select the VVX Expansion Module you want to generate a PDF for. For example, EM1 is chosen in
the following figure.
5 In the confirmation dialog box, select Yes to download the directory card.
6 Select Save > Open.
The directory card is displayed.
After you download the directory card, you can print and insert the directory card in your VVX Expansion
Module.
To insert the directory card on the VVX Expansion Module with a paper display:
1 Place the tip of a paper clip under the plastic cover cut out of the VVX Expansion Module plastic
cover to remove the plastic cover.
2 Place the directory card on your VVX Expansion Module.
3 Align the tabs on either side of the plastic cover with the corresponding indents on the expansion
module and bend the plastic cover into place to reinsert the cover over the directory card for
protection.
Navigate VVX Color Expansion Module Paging
The VVX Color Expansion Modules display three pages of line information on the LCD screen for each
module connected to a VVX phone. Each page of the expansion module contains 28 registrations, busy
lamp field contacts, Lync contacts, or favorites assigned to line keys.
