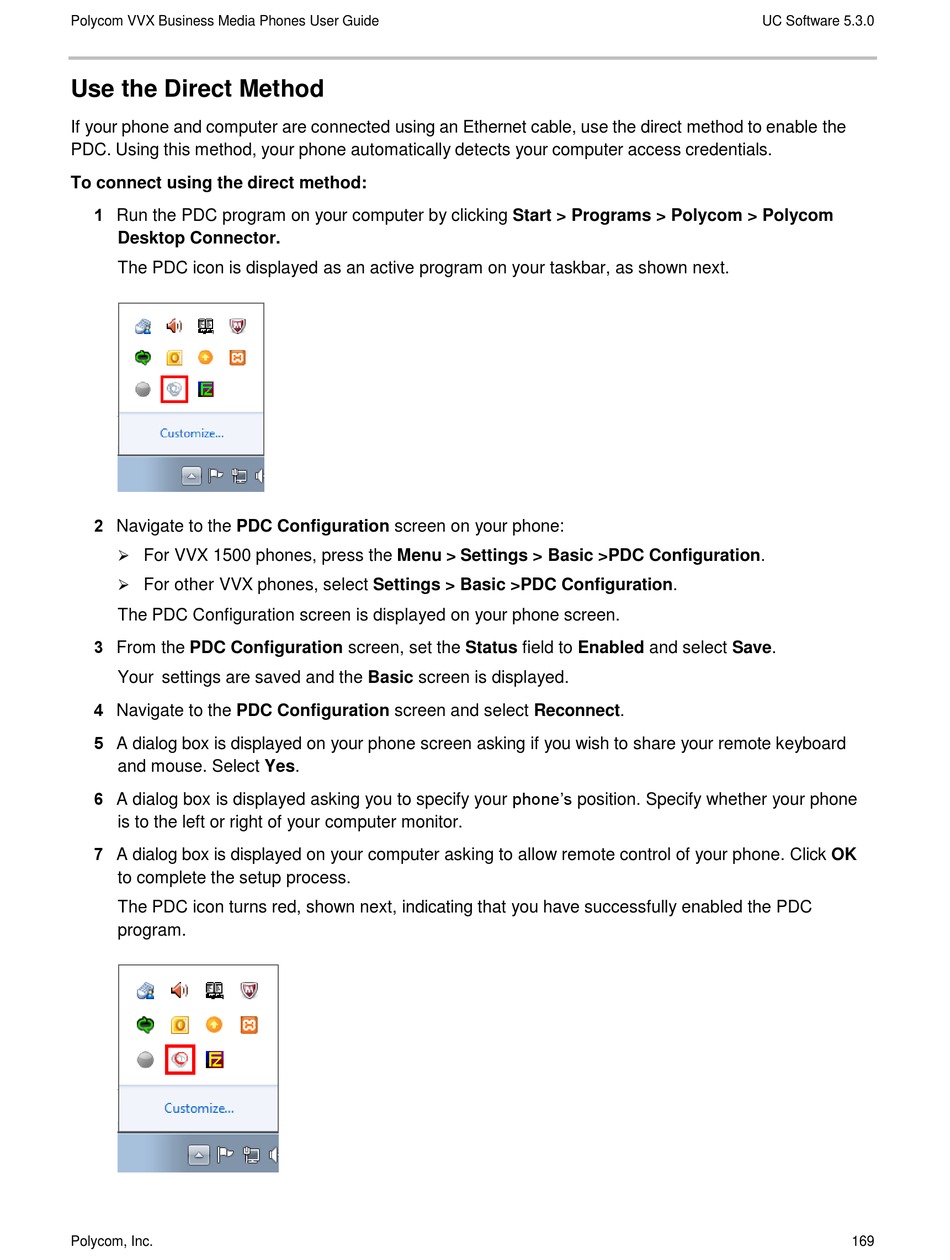

Polycom VVX 300 User Manual page 169

Polycom VVX Business Media Phones User Guide
Use the Direct Method
If your phone and computer are connected using an Ethernet cable, use the direct method to enable the
PDC. Using this method, your phone automatically detects your computer access credentials.
To connect using the direct method:
1 Run the PDC program on your computer by clicking Start > Programs > Polycom > Polycom
Desktop Connector.
The PDC icon is displayed as an active program on your taskbar, as shown next.
2 Navigate to the PDC Configuration screen on your phone:

For VVX 1500 phones, press the Menu > Settings > Basic >PDC Configuration.

For other VVX phones, select Settings > Basic >PDC Configuration.
The PDC Configuration screen is displayed on your phone screen.
3 From the PDC Configuration screen, set the Status field to Enabled and select Save.
Your settings are saved and the Basic screen is displayed.
4 Navigate to the PDC Configuration screen and select Reconnect.
5 A dialog box is displayed on your phone screen asking if you wish to share your remote keyboard
and mouse. Select Yes.
6 A dialog box is displayed asking you to specify your phone's position. Specify whether your phone
is to the left or right of your computer monitor.
7 A dialog box is displayed on your computer asking to allow remote control of your phone. Click OK
to complete the setup process.
The PDC icon turns red, shown next, indicating that you have successfully enabled the PDC
program.
Polycom, Inc.
UC Software 5.3.0
169
